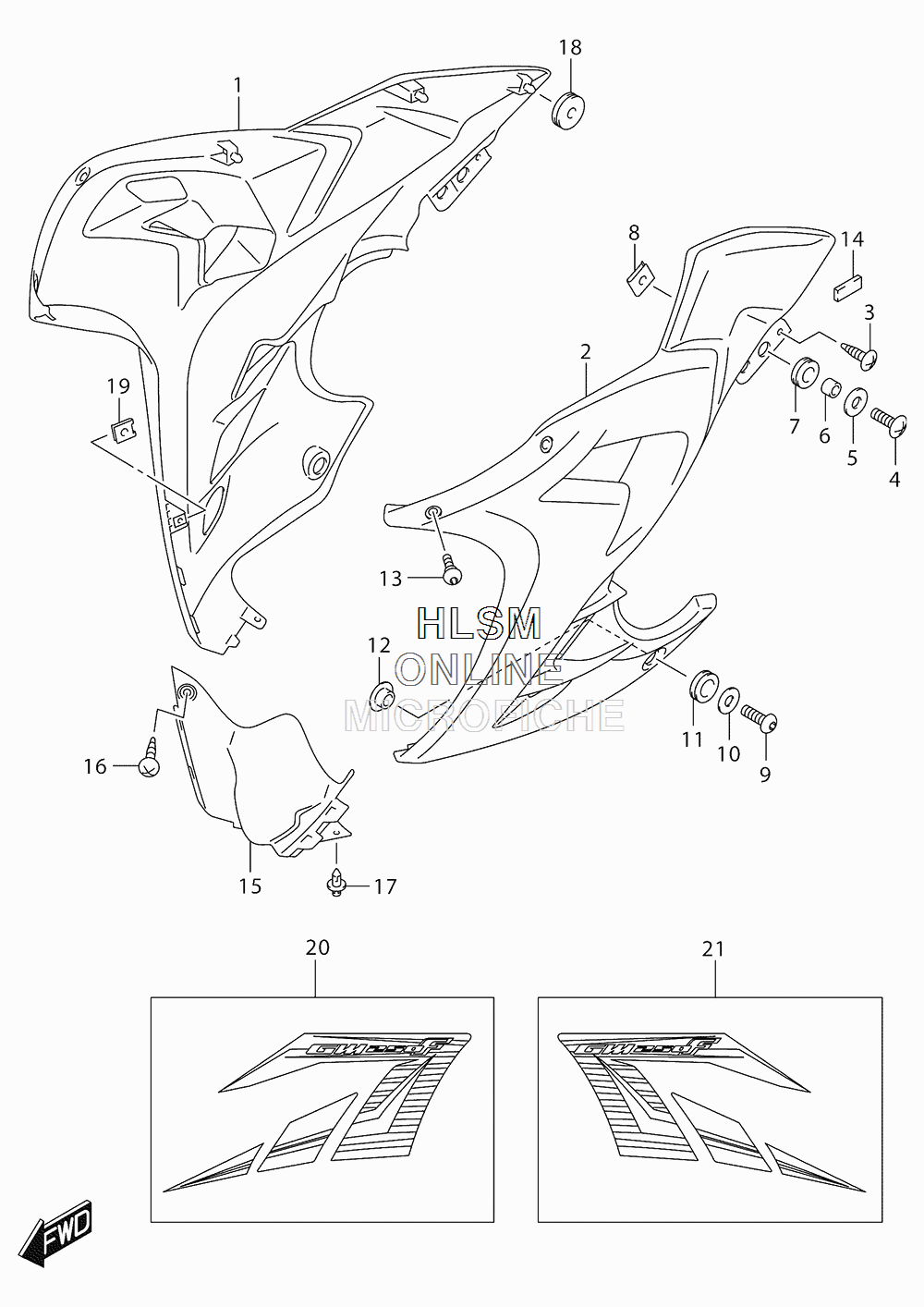

UNDER COWLING (FOR AGQ) для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
194471-48HA0-YSF COWLING, UNDER RIGHT HAND (BLUE)COWLING, UNDER RIGHT HAND (BLUE)
-
294481-48HA0-YSF COWLING, UNDER LEFT HAND (BLUE)COWLING, UNDER LEFT HAND (BLUE)
-
303541-0516A SCREWSCREW
-
402142-0620A SCREWSCREW
-
509160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
609180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
747161-48H00 CUSHION, UNDER COWL NO.2CUSHION, UNDER COWL NO.2
-
893162-37G00 NUTNUT
-
909139-10004 BOLT (10X27)BOLT (10X27)
-
1009160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
1194473-48HA0 CUSHION, UNDER COWLCUSHION, UNDER COWL
-
1294472-48HA1 SPACER, UNDER COWLSPACER, UNDER COWL
-
1394474-48HA0 SCREW, UNDER COWLSCREW, UNDER COWL
-
1447846-48H00 CUSHION, UNDER COWL NO.4CUSHION, UNDER COWL NO.4
-
1594498-48HA0 COWLING, UNDER CENTERCOWLING, UNDER CENTER
-
1603541-0516B SCREWSCREW
-
1748292-32GH0 CLIP, UNDER COWL CENTERCLIP, UNDER COWL CENTER
-
1809320-08018 CUSHIONCUSHION
-
1909148-05038 NUTNUT
-
2068180-48H00-A0P EMBLEM, UNDER COWLING (RH)EMBLEM, UNDER COWLING (RH)
-
2168190-48H00-A0P EMBLEM, UNDER COWLING (LH)EMBLEM, UNDER COWLING (LH)
