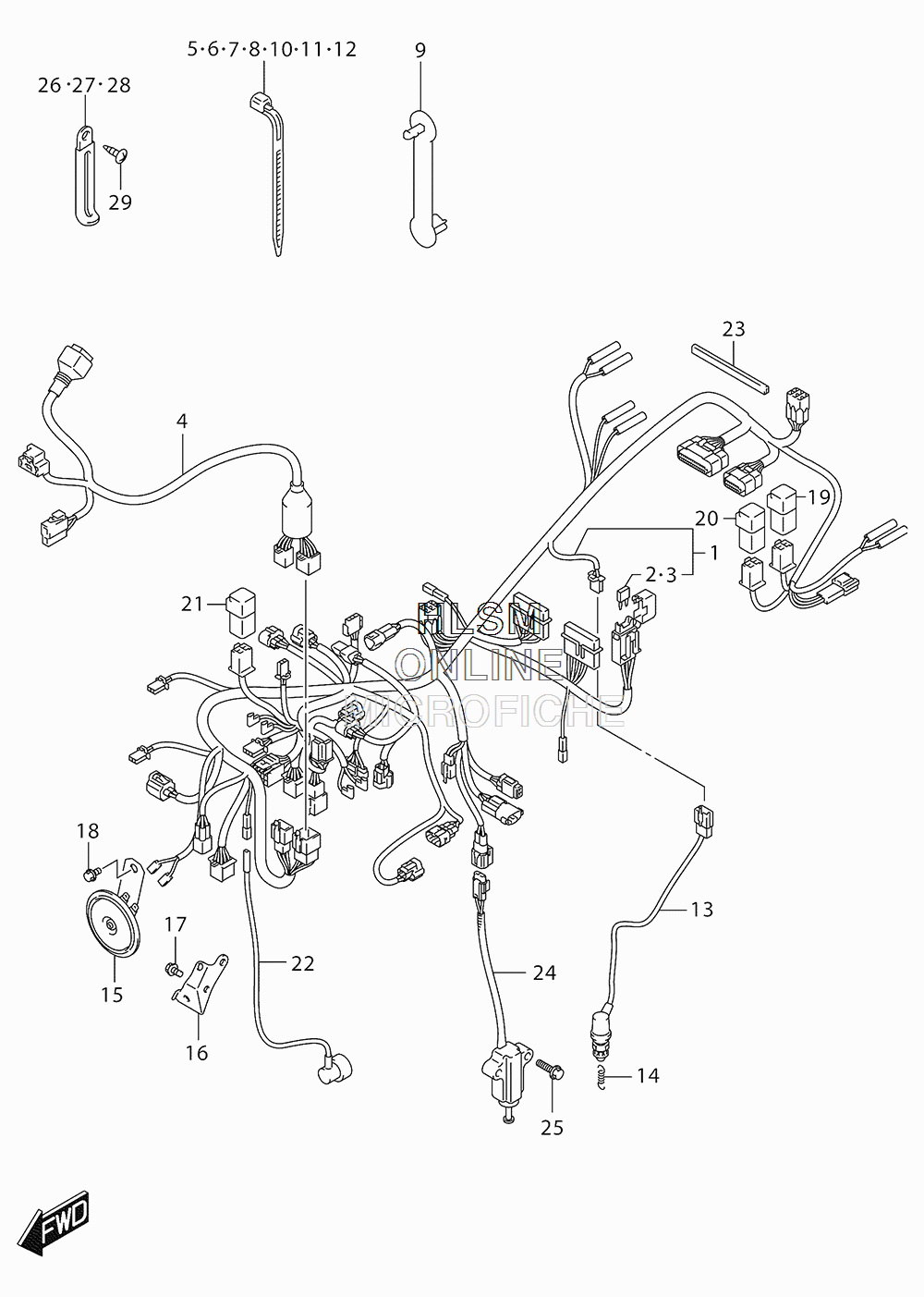

ELECTRICAL - WIRING HARNESS для Suzuki GW250F L5 - 2015 года выпуска`
-
№АртикулНазвание
-
136610-48HJ2 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436620-48H00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
536990-48H00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
636990-32G10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
736990-32G20 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
836990-45H30 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
936990-48H10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1009407-19401 CLAMP (L:190)CLAMP (L:190)
-
1109407-25401 CLAMP (L:235)CLAMP (L:235)
-
1209407-25402 CLAMP (L:250)CLAMP (L:250)
-
1337740-48H10 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06046 SPRINGSPRING
-
1538500-48H30 HORN ASSYHORN ASSY
-
1638590-48H10 PLATE, HORNPLATE, HORN
-
1701550-0812B BOLTBOLT
-
1801550-0612B BOLTBOLT
-
1938740-33G00 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2038740-33G00 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2138740-33G00 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
2236851-48H01 WIRE, OIL PRESSURE SWITCH LEADWIRE, OIL PRESSURE SWITCH LEAD
-
2336618-48H00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2437840-18J00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2501550-0620B BOLTBOLT
-
2609404-06206 CLAMP (L:45)CLAMP (L:45)
-
2709404-06207 CLAMP (L:65)CLAMP (L:65)
-
2809404-06208 CLAMPCLAMP
-
2903541-0516A SCREWSCREW
