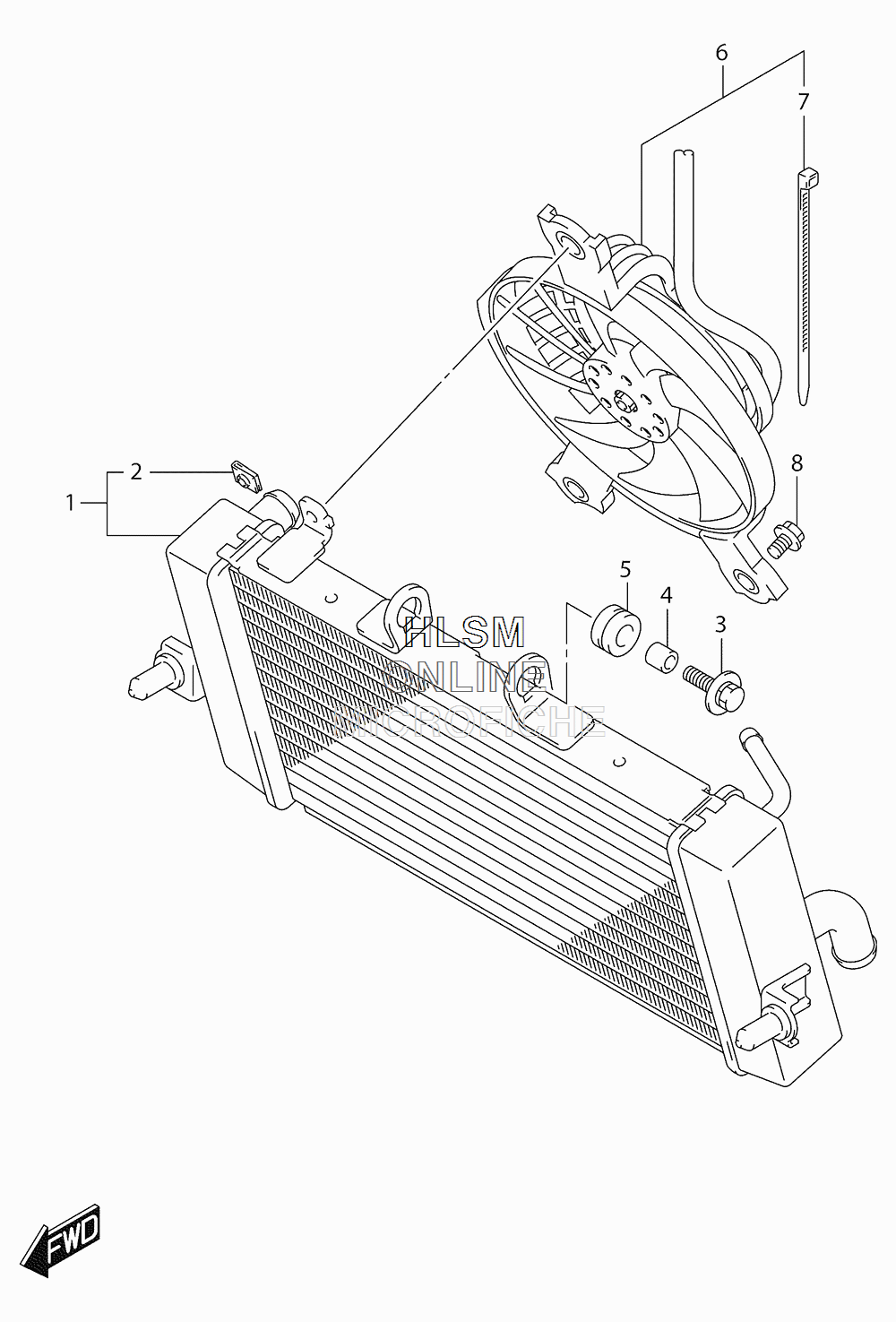

RADIATOR для Suzuki GW250F L5 - 2015 года выпуска`
-
№АртикулНазвание
-
117710-48H70 RADIATOR ASSY, WATERRADIATOR ASSY, WATER
-
217712-48H00 ...NUT, FAN ASSY...NUT, FAN ASSY
-
309118-06097 BOLT (6X25)BOLT (6X25)
-
409180-06364 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
509320-10501 CUSHIONCUSHION
-
617800-48H00 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
736990-48H20 ...CLAMP, FAN MOTOR LEAD...CLAMP, FAN MOTOR LEAD
-
801550-0612A BOLTBOLT
