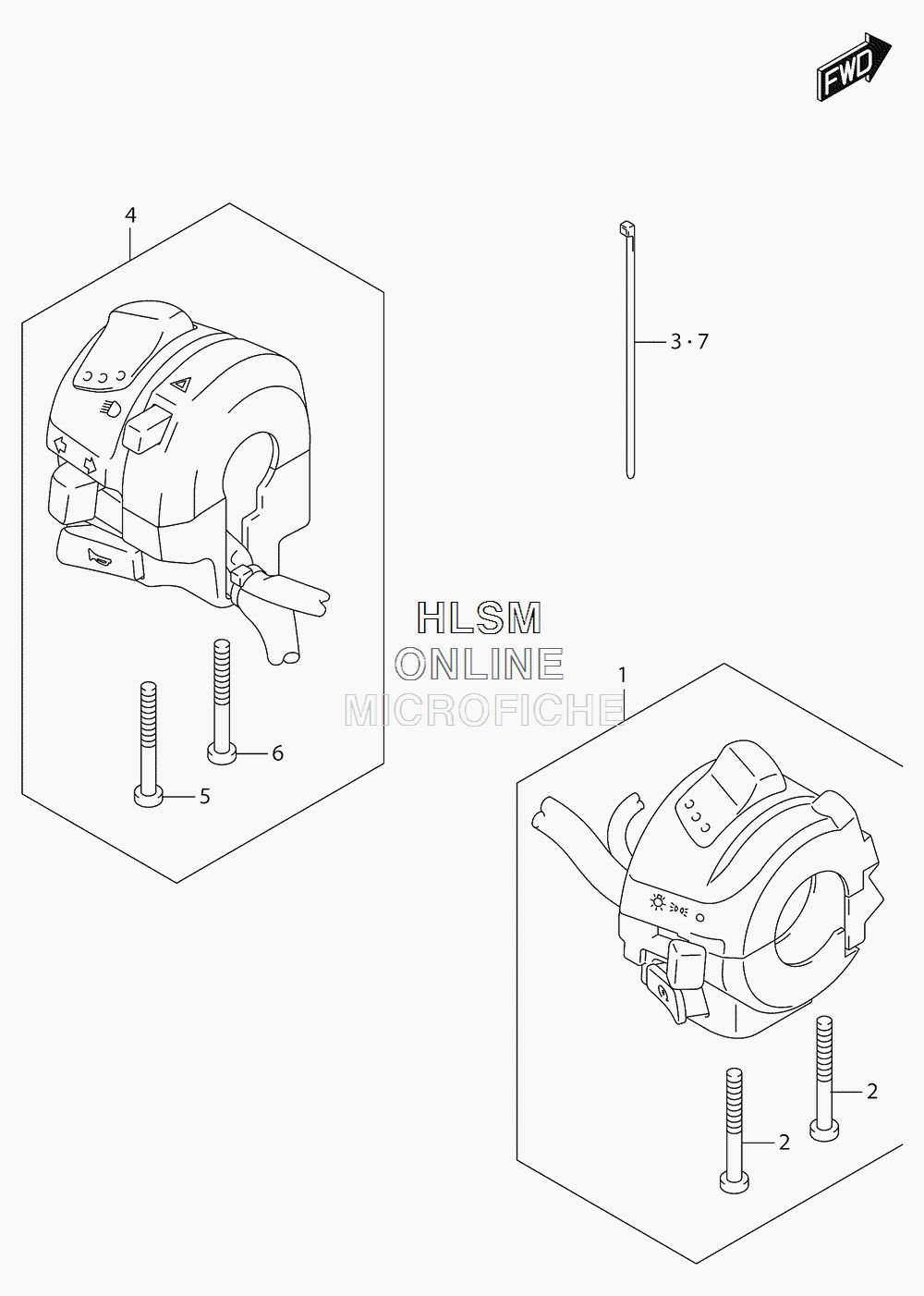

HANDLEBAR - LEVERS / SWITCHES для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
137200-48H40 SWITCH ASSY, HANDLE (RH)SWITCH ASSY, HANDLE (RH)
-
202112-0530B ...SCREW...SCREW
-
309407-25402 CLAMP (L:250)CLAMP (L:250)
-
437400-48H40 SWITCH ASSY, HANDLE (LH)SWITCH ASSY, HANDLE (LH)
-
502112-0525B ...SCREW...SCREW
-
602112-0545B ...SCREW...SCREW
-
709407-25402 CLAMP (L:250)CLAMP (L:250)
