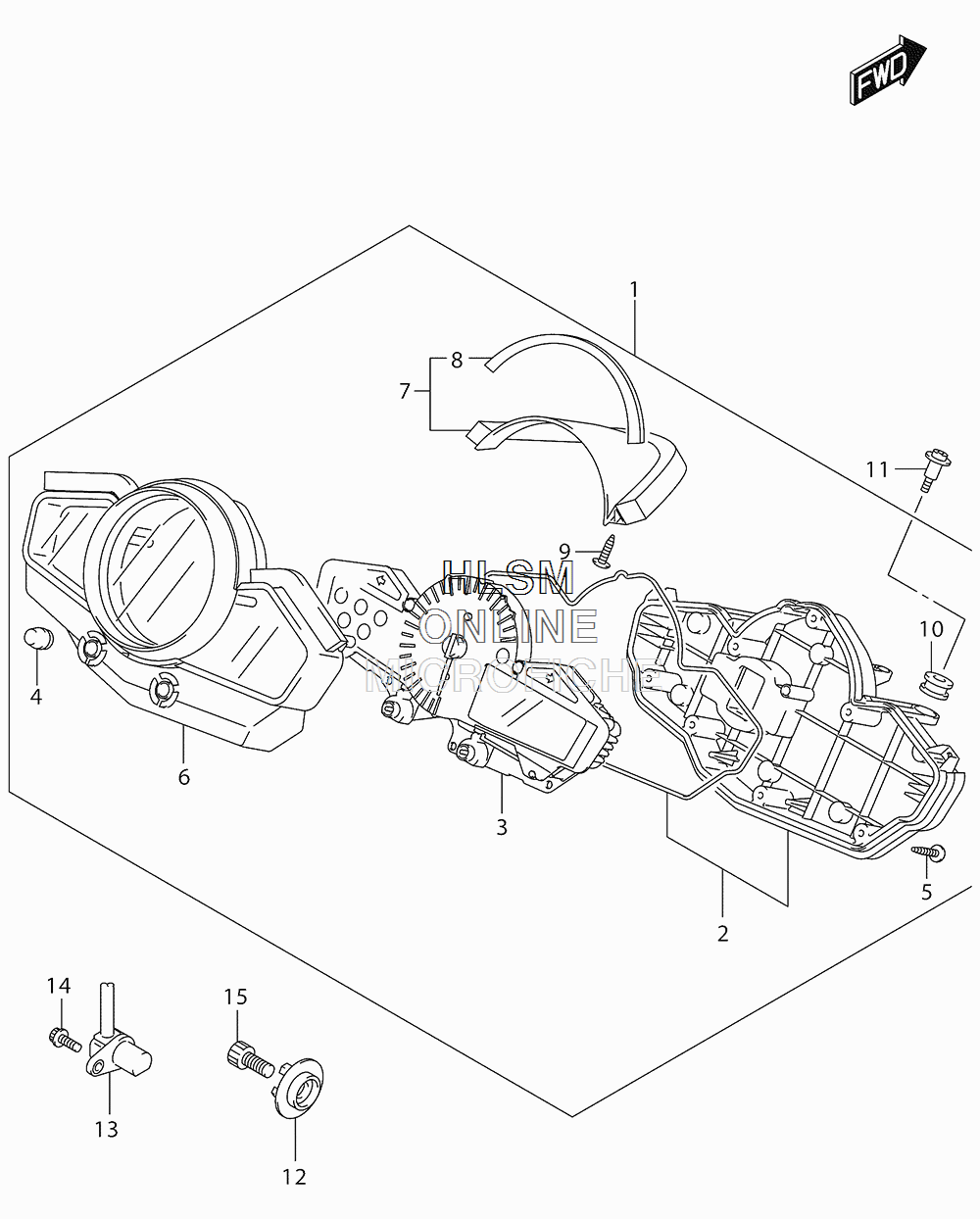

SPEEDOMETER для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
134100-48HF2 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
234111-48H20 ...LOWER CASE...LOWER CASE
-
334120-48H72 ...COMBINATION METER...COMBINATION METER
-
434124-48H00 ...RUBBER...RUBBER
-
534149-03G00 ...SCREW (3X14)...SCREW (3X14)
-
634150-48H20 ...UPPER CASE...UPPER CASE
-
734152-48H20 ...COVER...COVER
-
834191-48H00 ......PACKING......PACKING
-
934184-12B00 ...SCREW...SCREW
-
1034955-33E00 ...CUSHION, METER...CUSHION, METER
-
1134149-18G00 SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
1234981-26H00 ROTOR, SPEEDROTOR, SPEED
-
1334990-30H00 SENSOR, SPEEDSENSOR, SPEED
-
1407120-0512B BOLTBOLT
-
1507130-0816B BOLTBOLT
