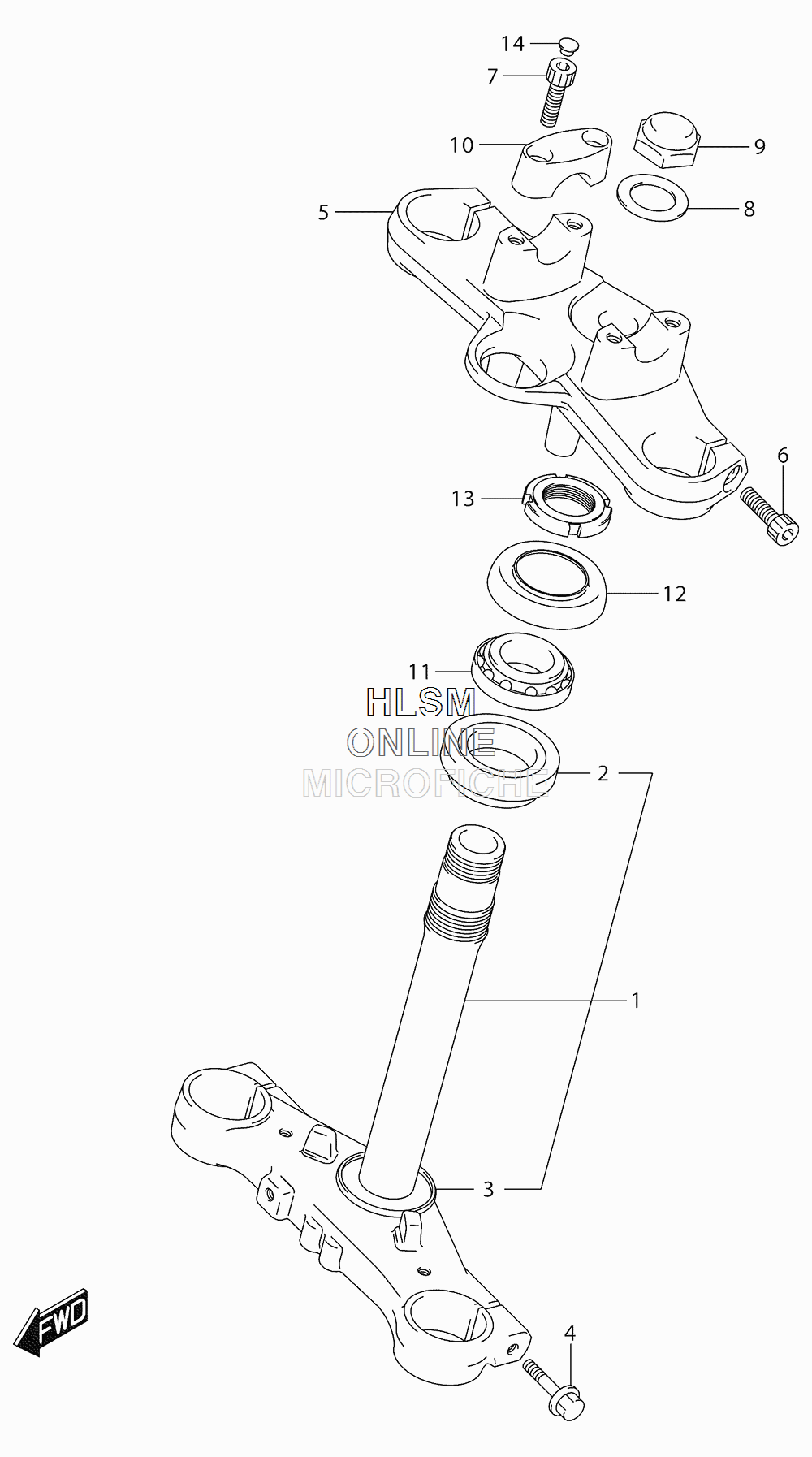

STEERING STEM для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
151410-48H00 BRACKET, UNDERBRACKET, UNDER
-
251610-48H00 ...BEARING...BEARING
-
351644-48H00 ...SEAL, STEERING LOWER...SEAL, STEERING LOWER
-
451451-48H00 BOLT BRACKET, UNDERBOLT BRACKET, UNDER
-
551311-48H60 BRACKET, UPPERBRACKET, UPPER
-
651166-48H10 BOLT BRACKET, UPPERBOLT BRACKET, UPPER
-
751166-48H10 BOLT BRACKET, UPPERBOLT BRACKET, UPPER
-
851172-48H00 WASHERWASHER
-
951353-48H00 NUT, CAPNUT, CAP
-
1056211-48HB0 HOLDER, HANDLEHOLDER, HANDLE
-
1109267-25L01 BEARING (25X47X15)BEARING (25X47X15)
-
1251643-49002 SEAL, STEERING UPPER DUSTSEAL, STEERING UPPER DUST
-
1351631-48H00 NUT, STEERING STEMNUT, STEERING STEM
-
1409250-06011 CAP (OD:11)CAP (OD:11)
