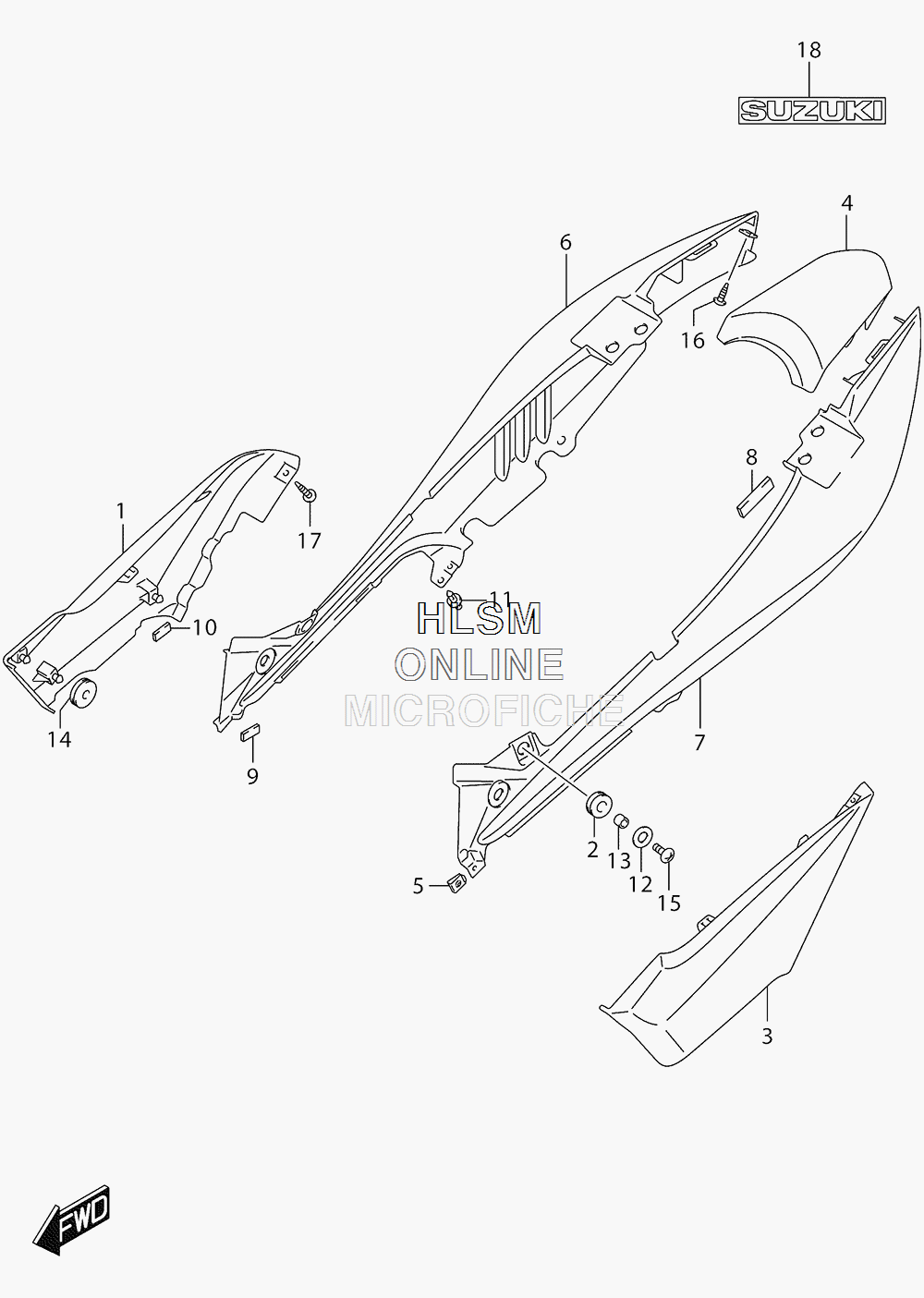

FRAME COVER (FOR YAY) для Suzuki GW250F L5 - 2015 года выпуска`
-
№АртикулНазвание
-
147111-48H00-YKV COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
247161-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
347211-48H00-YKV COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
447311-48H00-YAY COVER, FRAME UPPER CENTER (BLACK)COVER, FRAME UPPER CENTER (BLACK)
-
547399-48H00 NUTNUT
-
647831-48H20-YAY COVER, FRAME UPPER RIGHT HAND (BLACK)COVER, FRAME UPPER RIGHT HAND (BLACK)
-
747841-48H10-YAY COVER, FRAME UPPER LEFT HAND (BLACK)COVER, FRAME UPPER LEFT HAND (BLACK)
-
847845-48H00 CUSHION, FRAME COVER UPPER RRCUSHION, FRAME COVER UPPER RR
-
947846-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
1047846-48H00 CUSHION, COVER FRONTCUSHION, COVER FRONT
-
1148292-32GH0 CLIP, COVER UPPERCLIP, COVER UPPER
-
1209160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1309180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1409320-08018 CUSHIONCUSHION
-
1502142-0620A SCREWSCREW
-
1603541-0516A SCREWSCREW
-
1703541-0516A SCREWSCREW
-
1868281-48H60-FJA EMBLEM,''SUZUKI'' (SILVER/BLACK)EMBLEM,''SUZUKI'' (SILVER/BLACK)
