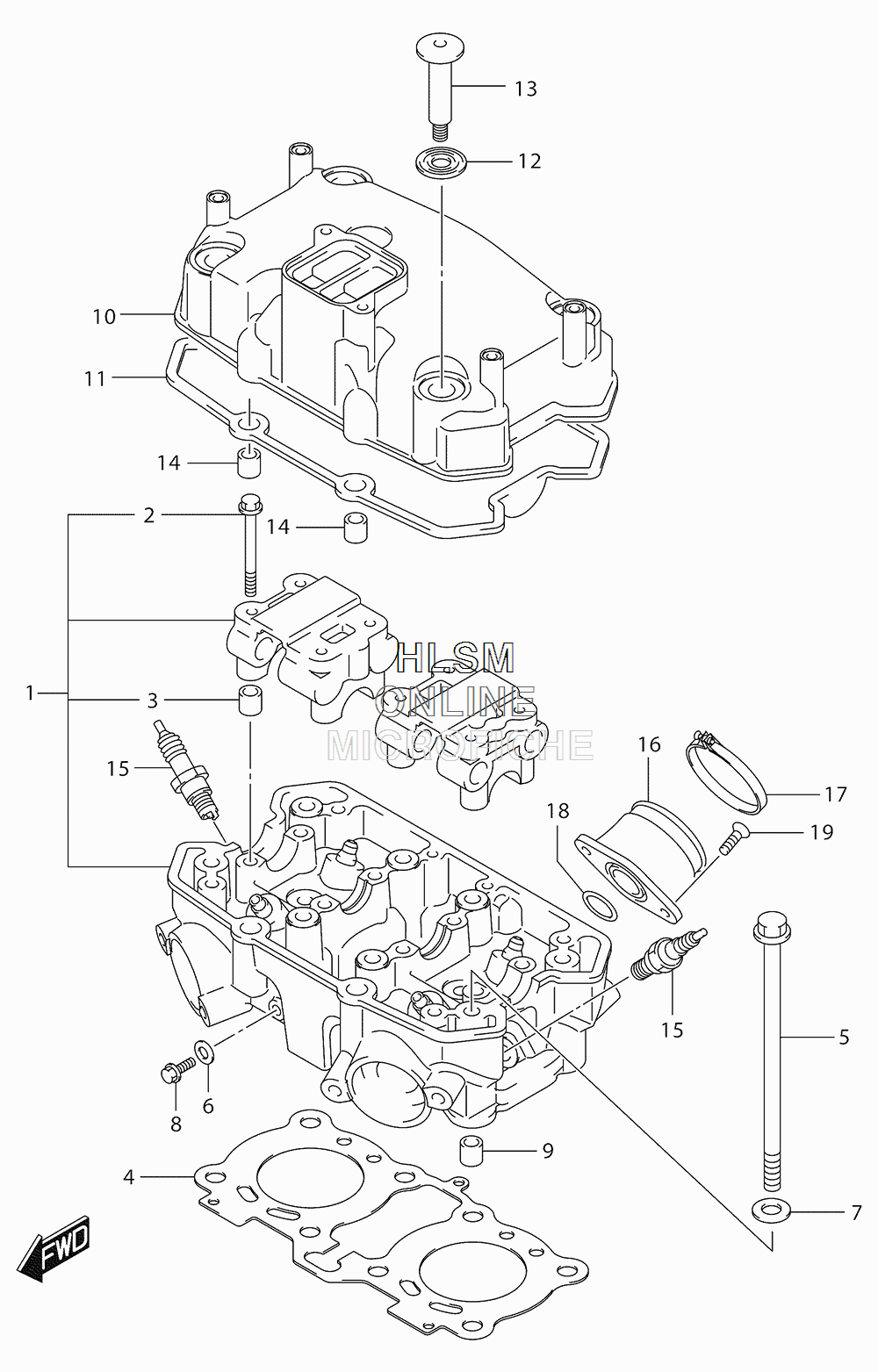

CYLINDER HEAD для Suzuki GW250F L5 - 2015 года выпуска

№

Артикул

Название
1

11100-48H00 HEAD ASSY, CYLINDER

HEAD ASSY, CYLINDER
2

09103-06220 ...BOLT (6X60)

...BOLT (6X60)
3

09206-08011 ...PIN (8X11)

...PIN (8X11)
4

11141-48H00 GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
5

09103-08449 BOLT (8X165)

BOLT (8X165)
6

09168-06L04 GASKET (5.8X13X1.8)

GASKET (5.8X13X1.8)
7

09168-08036 GASKET (8.5X17X2.3)

GASKET (8.5X17X2.3)
8

01550-0612A BOLT

BOLT
9

04211-11129 PIN

PIN
10

11171-48H00 COVER, CYLINDER HEAD

COVER, CYLINDER HEAD
11

11173-48H00 GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER
12

11191-27E60 WASHER, CYLINDER HEAD COVER

WASHER, CYLINDER HEAD COVER
13

09106-07022 BOLT (7X57)

BOLT (7X57)
14

04211-11129 PIN

PIN
15

09482-00516 SPARK PLUG (CR7E) (NGK)

SPARK PLUG (CR7E) (NGK)
15

09482-00515 SPARK PLUG (U22ESR-N) (DENSO)

SPARK PLUG (U22ESR-N) (DENSO)
16

13110-48H00 PIPE, INTAKE

PIPE, INTAKE
17

13170-48H00 CLAMP, INTAKE PIPE

CLAMP, INTAKE PIPE
18

09280-30L01 O RING (D:2.3,ID:29.7)

O RING (D:2.3,ID:29.7)
19

02122-0616A SCREW

SCREW
