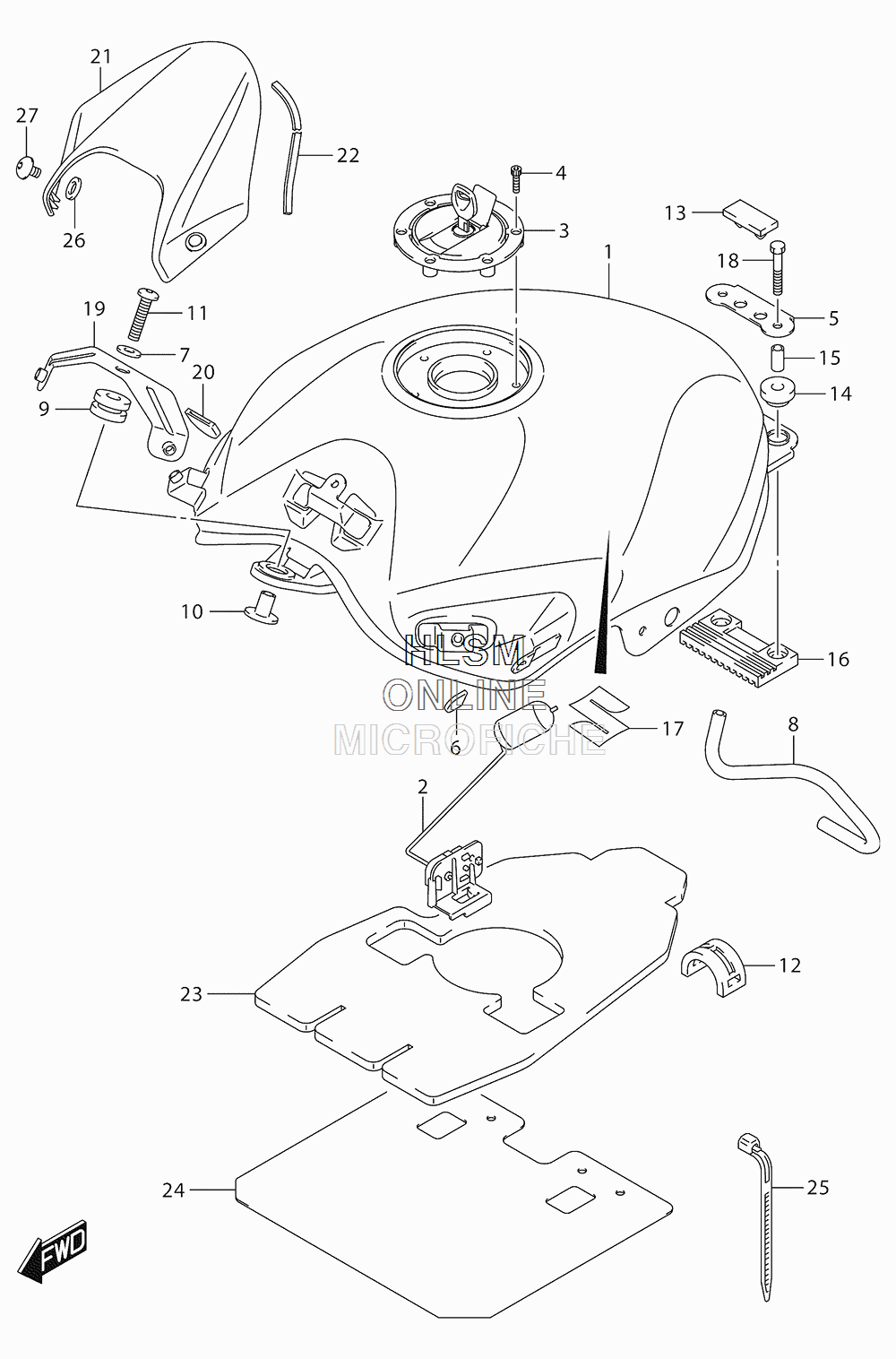

FUEL TANK для Suzuki GW250F L5 - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-48H10-YAY TANK ASSY, FUEL (BLACK) (FOR YAY)
    TANK ASSY, FUEL (BLACK) (FOR YAY)
  • 1
    44100-48H10-YSF TANK ASSY, FUEL (BLUE) (FOR AGQ)
    TANK ASSY, FUEL (BLUE) (FOR AGQ)
  • 2
    34810-48H01 GAUGE ASSY, FUEL LEVEL SENDER
    GAUGE ASSY, FUEL LEVEL SENDER
  • 3
    44200-16870 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 4
    44211-48H00 BOLT (5X20)
    BOLT (5X20)
  • 5
    44146-48H00 WASHER, REAR BRACKET
    WASHER, REAR BRACKET
  • 6
    44276-48H00 CUSHION, FUEL TANK COVER
    CUSHION, FUEL TANK COVER
  • 7
    44262-48H00 WASHER, FUEL TANK FRONT
    WASHER, FUEL TANK FRONT
  • 8
    44423-48H10 HOSE, FUEL TANK WATER DRAIN
    HOSE, FUEL TANK WATER DRAIN
  • 9
    44511-48H00 CUSHION, FUEL TANK FRONT
    CUSHION, FUEL TANK FRONT
  • 10
    44512-48H00 SPACER, FUEL TANK FRONT
    SPACER, FUEL TANK FRONT
  • 11
    44513-48H00 SCREW, FUEL TANK FRONT
    SCREW, FUEL TANK FRONT
  • 12
    44541-48H00 CUSHION, FUEL TANK SIDE
    CUSHION, FUEL TANK SIDE
  • 13
    44542-48H00 CUSHION, REAR BRACKET
    CUSHION, REAR BRACKET
  • 14
    44543-48H00 CUSHION, FUEL TANK REAR UPPER
    CUSHION, FUEL TANK REAR UPPER
  • 15
    44544-48H00 SPACER, FUEL TANK REAR
    SPACER, FUEL TANK REAR
  • 16
    44545-48H00 CUSHION, FUEL TANK REAR LOWER
    CUSHION, FUEL TANK REAR LOWER
  • 17
    68111-47HA0 EMBLEM, ''S''
    EMBLEM, ''S''
  • 18
    01500-0635A BOLT
    BOLT
  • 19
    44160-48H00 BRACKET, FUEL TANK COVER
    BRACKET, FUEL TANK COVER
  • 20
    44164-48H00 CUSHION, TANK COVER BRACKET
    CUSHION, TANK COVER BRACKET
  • 21
    44191-48H00-YAY COVER, FUEL TANK CENTER (BLACK) (FOR YAY)
    COVER, FUEL TANK CENTER (BLACK) (FOR YAY)
  • 21
    44191-48H00-YSF COVER, FUEL TANK CENTER (BLUE) (FOR AGQ)
    COVER, FUEL TANK CENTER (BLUE) (FOR AGQ)
  • 22
    44277-48H00 CUSHION, TANK COVER CENTER
    CUSHION, TANK COVER CENTER
  • 23
    44192-48H00 SHIELD, FUEL TANK HEAT
    SHIELD, FUEL TANK HEAT
  • 24
    44193-48H10 SHIELD, FUEL TANK HEAT NO.2
    SHIELD, FUEL TANK HEAT NO.2
  • 25
    36990-32G10 CLAMP
    CLAMP
  • 26
    44162-48H00 CUSHION, FUEL TANK COVER
    CUSHION, FUEL TANK COVER
  • 27
    09139-06172 SCREW (6X10)
    SCREW (6X10)
