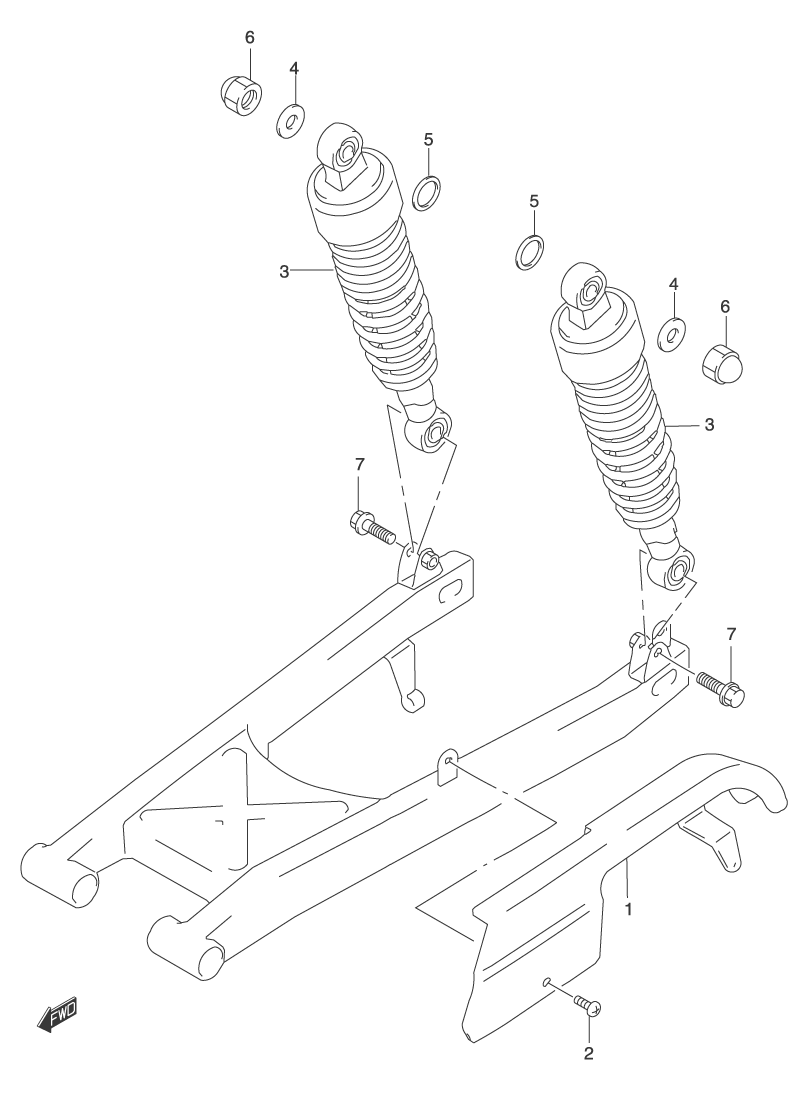

SUSPENSION - SHOCKS REAR W/ CHAIN GUARD для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
161310-12FA0 CASE, CHAINCASE, CHAIN
-
202142-06103 SCREWSCREW
-
362100-13FA0 ABSORBER, REAR SHOCK ASSY.ABSORBER, REAR SHOCK ASSY.
-
409160-10127 WASHER, OUTER (10.5X24X2.30)WASHER, OUTER (10.5X24X2.30)
-
508322-01127 WASHER, INNERWASHER, INNER
-
608313-10107 NUTNUT
-
709103-10019 BOLT, LOWER (10X37)BOLT, LOWER (10X37)
