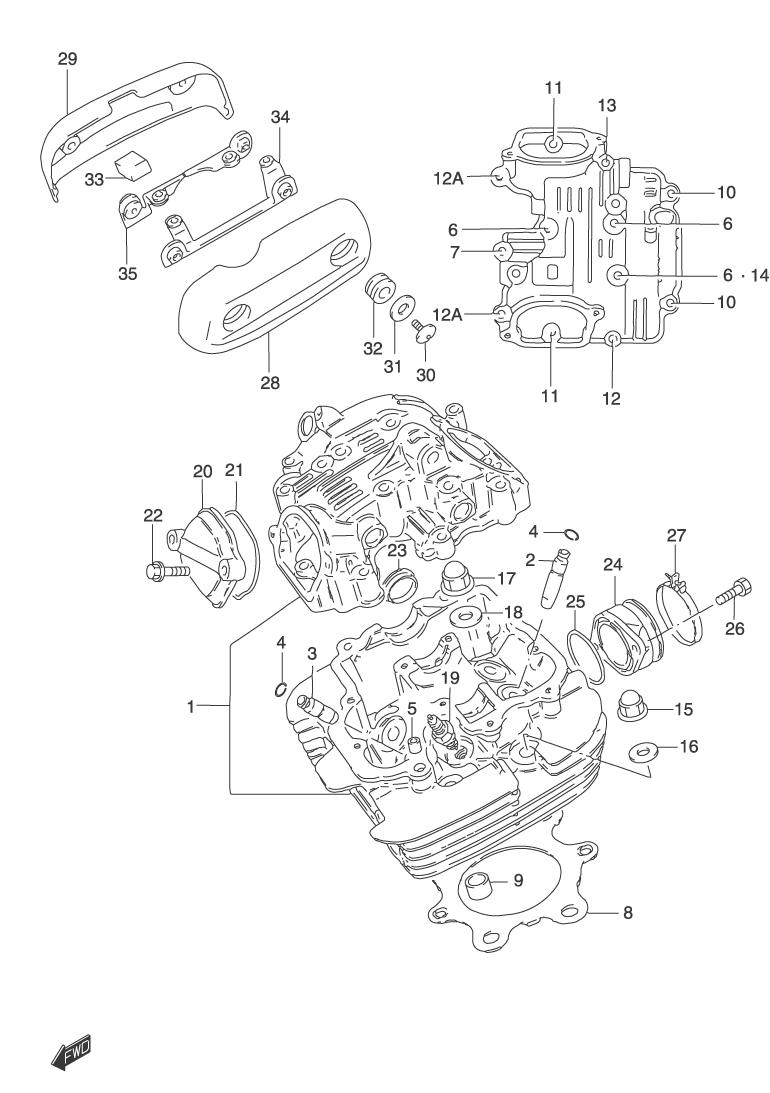

CYLINDER HEAD для Suzuki GZ250 K2 - 2002 года выпуска

№

Артикул

Название
1

11100-25D01 HEAD, CYLINDER ASSY.

HEAD, CYLINDER ASSY.
2

11115-38270 ...GUIDE, VALVE

...GUIDE, VALVE
3

11115-05270 ...GUIDE, VALVE

...GUIDE, VALVE
4

09381-10004 ...SNAP RING

...SNAP RING
5

09206-08001 ...PIN (6.2X8X11)

...PIN (6.2X8X11)
6

01550-06603 ...BOLT (GREEN)

...BOLT (GREEN)
7

01550-06303 ...BOLT (GREEN)

...BOLT (GREEN)
8

11141-38201 GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
9

04211-13189 PIN

PIN
10

09103-06148 BOLT (6X120)

BOLT (6X120)
11

01550-06303 BOLT (GREEN)

BOLT (GREEN)
12

01550-06453 BOLT (GREEN)

BOLT (GREEN)
12A

01550-06503 BOLT (GREEN)

BOLT (GREEN)
13

01550-06603 BOLT (GREEN)

BOLT (GREEN)
14

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
15

09159-10092 NUT

NUT
16

09160-10039 WASHER

WASHER
17

09159-10069 NUT

NUT
18

09168-10017 GASKET (10.5X22X2)

GASKET (10.5X22X2)
19-1

09482-00399 SPARK PLUG (NGK,DR8EA)

SPARK PLUG (NGK,DR8EA)
19-2

09482-00223 SPARK PLUG (DENSO,X24ESR-U)

SPARK PLUG (DENSO,X24ESR-U)
20

11175-38202 CAP, INSPECTION

CAP, INSPECTION
21

09280-55003 O-RING

O-RING
22

01550-06253 BOLT (GREEN)

BOLT (GREEN)
23

09241-30004 PLUG

PLUG
24

13110-13F00 PIPE, INTAKE

PIPE, INTAKE
25

09280-40010 O-RING(D:2.4,ID:39.7)

O-RING(D:2.4,ID:39.7)
26

02122-06163 SCREW

SCREW
27

09402-48208 CLAMP

CLAMP
28

11171-13F00 CAP, CYLINDER HEAD COVER LEFT

CAP, CYLINDER HEAD COVER LEFT
29

11172-13F00 CAP, CYLINDER HEAD COVER RIGHT

CAP, CYLINDER HEAD COVER RIGHT
30

11178-12F10 BOLT, HEAD COVER CAP

BOLT, HEAD COVER CAP
31

09160-06134 WASHER, HEAD COVER (6.5X24X1.

WASHER, HEAD COVER (6.5X24X1.
32

09320-13015 CUSHION

CUSHION
33

11178-13F00 DAMPER, HEAD CAP RIGHT

DAMPER, HEAD CAP RIGHT
34

11179-13F01 BRACKET, HEAD CAP LEFT

BRACKET, HEAD CAP LEFT
35

11179-13F11 BRACKET, HEAD CAP RIGHT

BRACKET, HEAD CAP RIGHT
