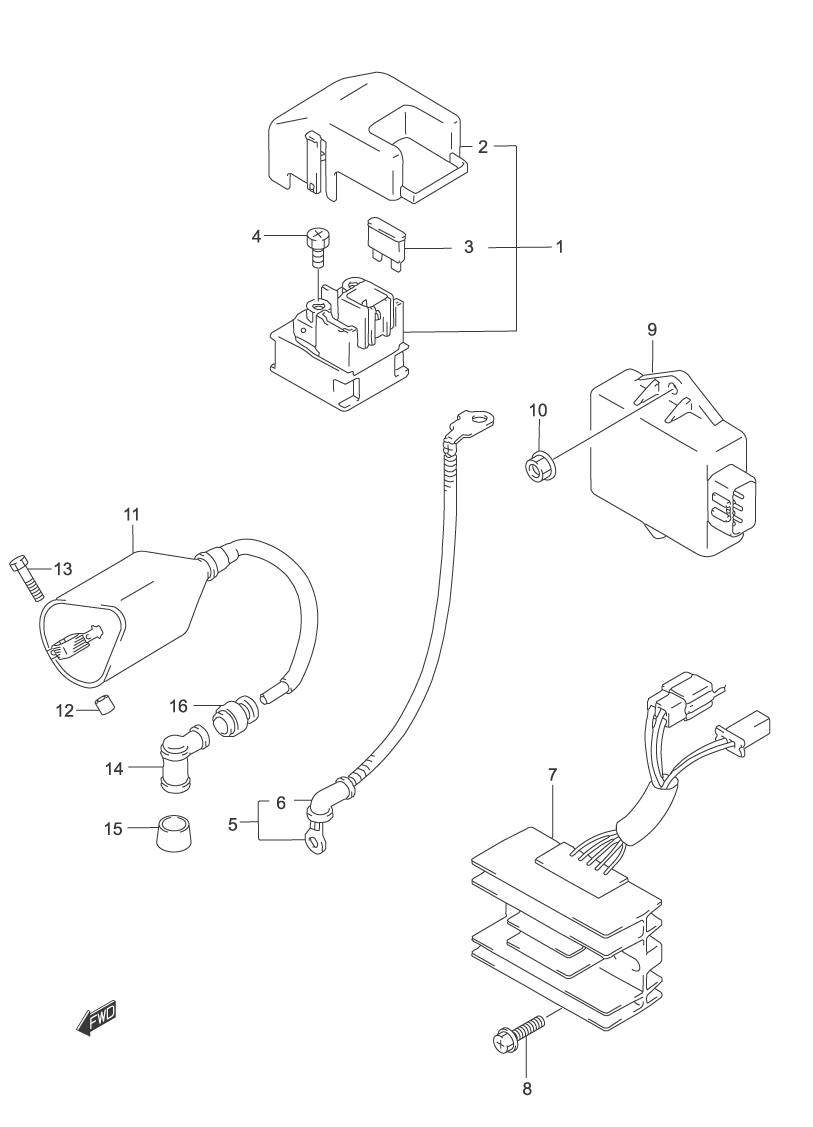

ELECTRICAL для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
131800-47E00 RELAY, STARTING MOTOR ASSY.RELAY, STARTING MOTOR ASSY.
-
231861-47E00 ...COVER...COVER
-
309481-20102 ...FUSE (20A)...FUSE (20A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
533810-13F00 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
631861-48B10 ...CAP, STARTER MOTOR LEAD...CAP, STARTER MOTOR LEAD
-
732800-29B00 RECTIFIER, REGULATOR ASSY.RECTIFIER, REGULATOR ASSY.
-
802162-06203 BOLTBOLT
-
932900-13F00 IGNITER ASSY.IGNITER ASSY.
-
1008316-10063 NUT, IGNITERNUT, IGNITER
-
1133410-13F00 COIL, IGNITION ASSY.COIL, IGNITION ASSY.
-
1209180-06174 SPACER (6.2X12X14)SPACER (6.2X12X14)
-
1301500-05353 BOLTBOLT
-
1433510-45010 CAP, SPARK PLUGCAP, SPARK PLUG
-
1533541-38210 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1633542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
