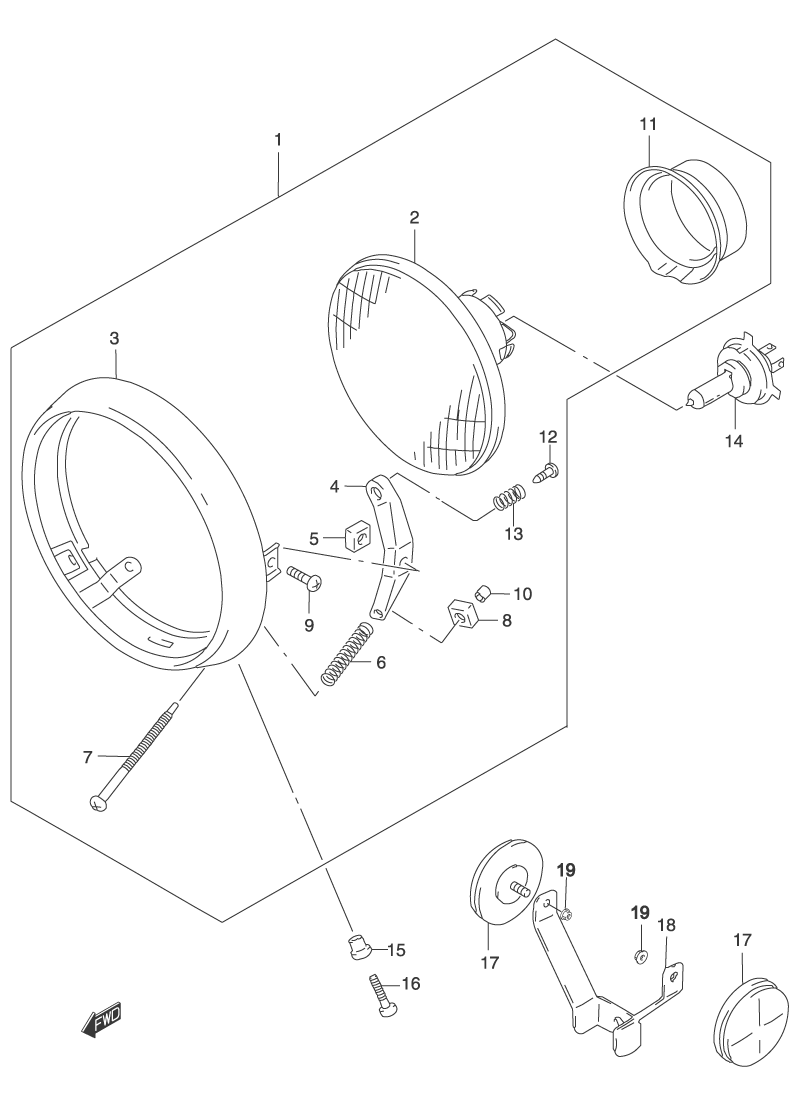

HEADLAMP для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
135100-13F01-999 HEADLAMP ASSY.HEADLAMP ASSY.
-
235121-13F01 ...UNIT...UNIT
-
335111-13F00 ...RIM...RIM
-
435131-13F00 ...STAY...STAY
-
535135-45900 ...NUT...NUT
-
635145-13F00 ...SPRING...SPRING
-
735151-45900 ...ADJUST SCREW...ADJUST SCREW
-
835152-45600 ...NUT...NUT
-
935161-13F00 ...SCREW...SCREW
-
1035165-13F00 ...CAP, SCREW...CAP, SCREW
-
1135173-38A00 ...COVER, SOCKET...COVER, SOCKET
-
1235181-13F00 ...SCREW...SCREW
-
1335154-13F00 ...SPRING...SPRING
-
1409471-12185 BULB (12V,60/55W)BULB (12V,60/55W)
-
1535192-13F00 SPACER, HEADLAMPSPACER, HEADLAMP
-
1602112-05167 SCREWSCREW
-
1735950-09EF0 REFLEX REFLECTOR, ASSY.REFLEX REFLECTOR, ASSY.
-
1835956-13F10 BRACKET FRONT, SIDE REFLECTORBRACKET FRONT, SIDE REFLECTOR
-
1908316-10043 NUTNUT
