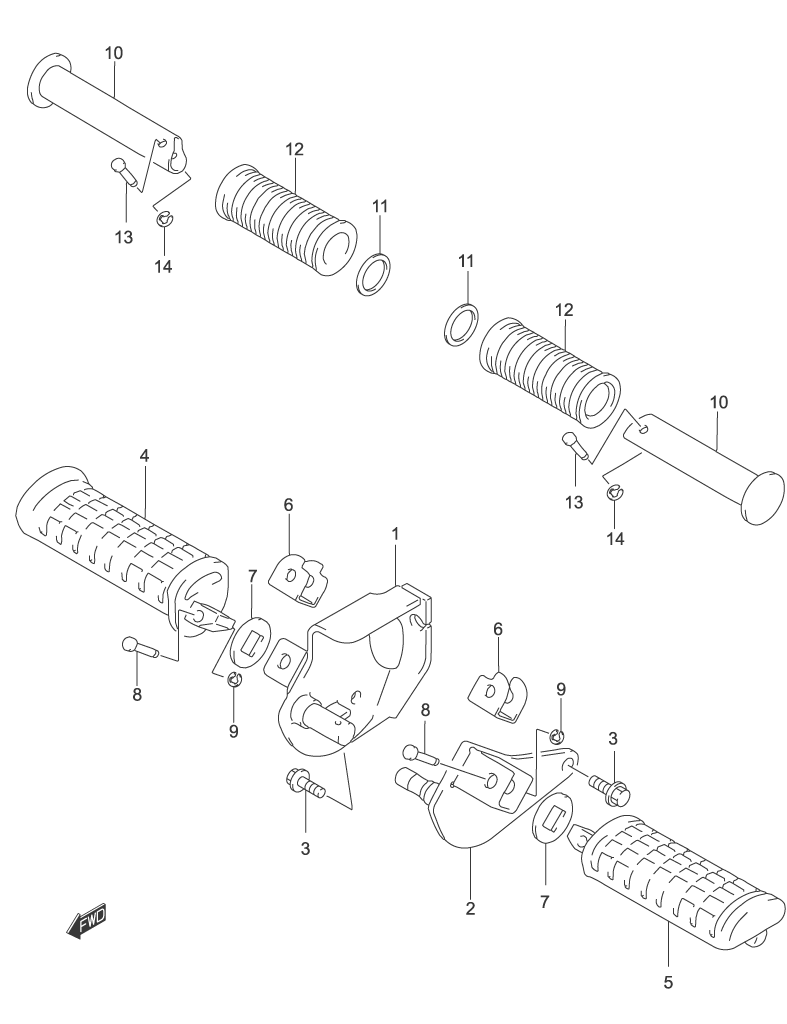

FOOTREST для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
143510-13FA0-EE3 BRACKET, FRONT FOOTREST RIGHT (BBRACKET, FRONT FOOTREST RIGHT (B
-
243520-13FA0-EE3 BRACKET, FRONT FOOTREST LEFT (BBRACKET, FRONT FOOTREST LEFT (B
-
301550-08203 BOLTBOLT
-
443550-12FA0 RUBBER, FRONT FOOTREST RIGHTRUBBER, FRONT FOOTREST RIGHT
-
543560-12FA0 RUBBER, FRONT FOOTREST LEFTRUBBER, FRONT FOOTREST LEFT
-
643570-04F00 CUSHION, FRONT FOOTRESTCUSHION, FRONT FOOTREST
-
743631-34A01 WASHER, FOOTREST RUBBERWASHER, FOOTREST RUBBER
-
809208-06005 PINPIN
-
908332-11043 E-RINGE-RING
-
1043610-03001 BAR, PILLION FOOTRESTBAR, PILLION FOOTREST
-
1109160-19024 WASHER (19.5X32X2.0)WASHER (19.5X32X2.0)
-
1243612-0AE00 RUBBER, PILLION FOOTRESTRUBBER, PILLION FOOTREST
-
1343636-25D00 PIN, PILLION FOOTRESTPIN, PILLION FOOTREST
-
1408332-11043 E-RINGE-RING
