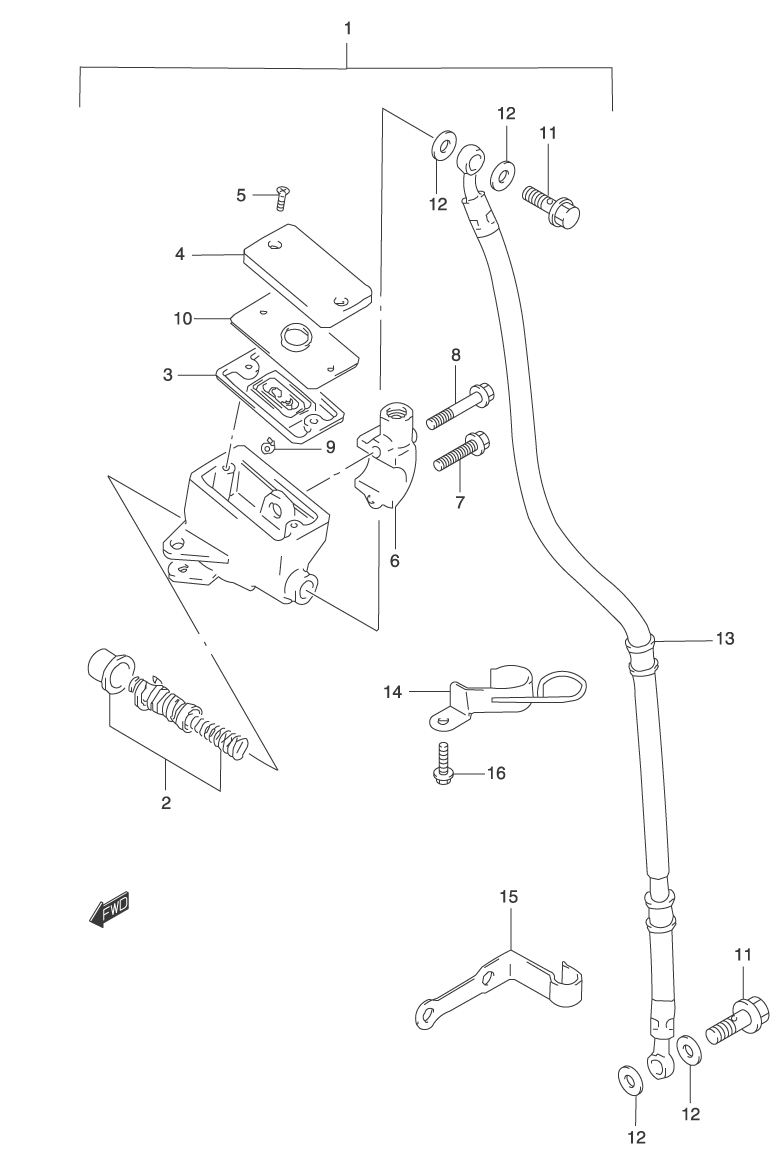

BRAKE - FRONT MASTER CYLINDER для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
159600-12FA0 CYLINDER, FRONT MASTER ASSY.CYLINDER, FRONT MASTER ASSY.
-
259600-0AE00 ...PISTON/CUP SET...PISTON/CUP SET
-
359667-0AE00 ...DIAPHRAGM...DIAPHRAGM
-
459669-0AE00 ...CAP...CAP
-
569689-49300 ...SCREW...SCREW
-
659671-0AE00 ...HOLDER...HOLDER
-
701547-06255 ...BOLT (6X25)...BOLT (6X25)
-
859675-0AE00 ...BOLT (6X38)...BOLT (6X38)
-
959664-35E50 ...PROTECTOR...PROTECTOR
-
1059668-0AE00 ...PLATE...PLATE
-
1109360-10041 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-12FA0 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459260-12F00 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1559268-12F00 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1601550-06123 BOLTBOLT
