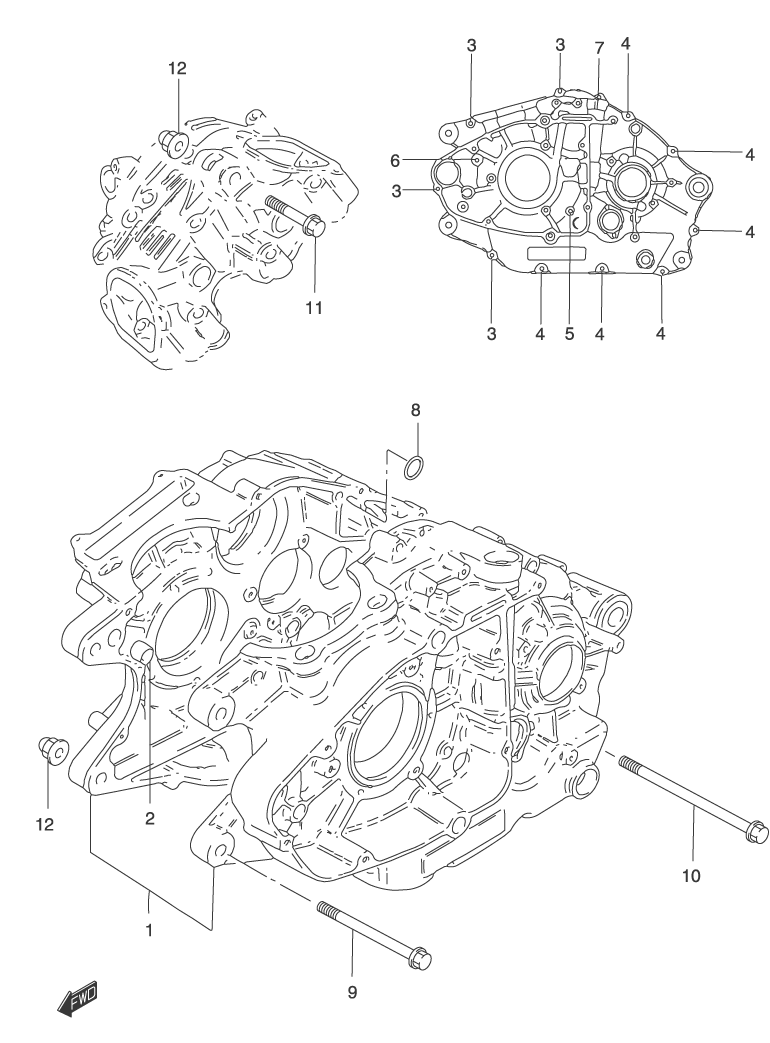

CRANKCASE для Suzuki GZ250 K2 - 2002 года выпуска`
-
№АртикулНазвание
-
1-111300-13F01 CRANKCASE SETCRANKCASE SET
-
204211-13189 ...PIN...PIN
-
301547-06357 ...BOLT...BOLT
-
401547-06457 ...BOLT...BOLT
-
501547-06553 ...BOLT...BOLT
-
601547-06603 ...BOLT...BOLT
-
701547-06707 ...BOLT...BOLT
-
809280-10016 O-RINGO-RING
-
909103-08037 BOLT (8X67)BOLT (8X67)
-
1009103-08114 BOLT (8X100)BOLT (8X100)
-
1109103-08081 BOLT (8X50)BOLT (8X50)
-
1208319-31088 NUTNUT
