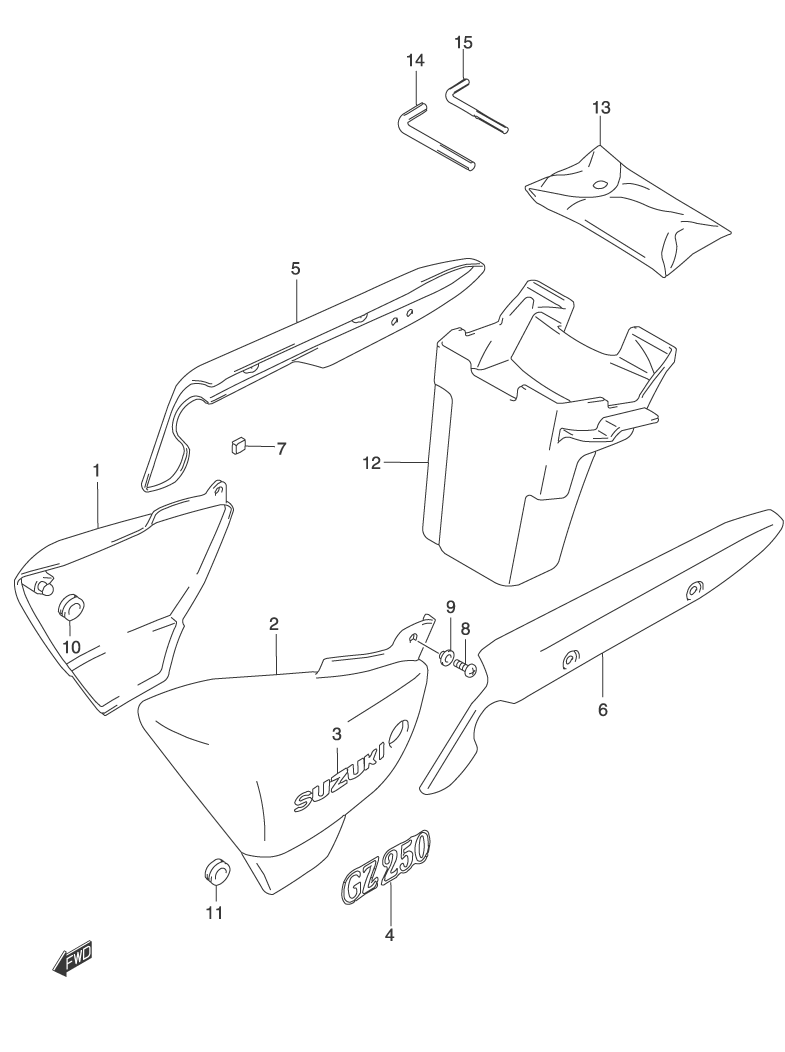

SIDE COVER для Suzuki GZ250 K2 - 2002 года выпуска

№

Артикул

Название
1-1

47111-12F00-19A COVER, FRAME - RIGHT (19A - RED)

COVER, FRAME - RIGHT (19A - RED)
1-2

47111-12F00-Y7L COVER, FRAME - RIGHT (Y7L - BLACK)

COVER, FRAME - RIGHT (Y7L - BLACK)
1-3

47111-12F00-Y7G COVER, FRAME - RIGHT (Y7G - GREEN) (CANADA)

COVER, FRAME - RIGHT (Y7G - GREEN) (CANADA)
2-1

47211-12F00-19A COVER, FRAME - LEFT (19A - RED)

COVER, FRAME - LEFT (19A - RED)
2-2

47211-12F00-Y7L COVER, FRAME - LEFT (Y7L - BLACK)

COVER, FRAME - LEFT (Y7L - BLACK)
2-3

47211-12F00-Y7G COVER, FRAME - LEFT (Y7G - GREEN) (CANADA)

COVER, FRAME - LEFT (Y7G - GREEN) (CANADA)
3-1

68131-12F40-N9A EMBLEM, FRAME COVER (USA) (N9A - BLACK/SILVER/RED) (FOR 19A - RED)

EMBLEM, FRAME COVER (USA) (N9A - BLACK/SILVER/RED) (FOR 19A - RED)
3-2

68131-12F40-GT4 EMBLEM, FRAME COVER (USA) (GT4 - GREEN/SILVER/BLACK) (FOR Y7L - BLACK)

EMBLEM, FRAME COVER (USA) (GT4 - GREEN/SILVER/BLACK) (FOR Y7L - BLACK)
4-1

68131-12F50-J2N EMBLEM, SUZUKI (CANADA) (J2N - SILVER/RED) (FOR 19A - RED)

EMBLEM, SUZUKI (CANADA) (J2N - SILVER/RED) (FOR 19A - RED)
4-2

68131-12F50-GU3 EMBLEM, SUZUKI (CANADA) (GU3 - SILVER/GREEN) (FOR Y7G - GREEN)

EMBLEM, SUZUKI (CANADA) (GU3 - SILVER/GREEN) (FOR Y7G - GREEN)
4-3

68131-12F50-M7P EMBLEM, SUZUKI (CANADA) (M7P - SILVER/BLACK) (FOR Y7L - BLACK)

EMBLEM, SUZUKI (CANADA) (M7P - SILVER/BLACK) (FOR Y7L - BLACK)
5

47121-12FA0 COVER, FRAME REAR RIGHT

COVER, FRAME REAR RIGHT
6

47221-12FA0 COVER, FRAME REAR LEFT

COVER, FRAME REAR LEFT
7

53123-33E00 CUSHION

CUSHION
8

02142-06123 SCREW

SCREW
9

09169-06071 WASHER

WASHER
10

09320-08018 CUSHION

CUSHION
11

09320-08013 CUSHION LEFT

CUSHION LEFT
12

92211-12F01 BODY, LUGGAGE BOX

BODY, LUGGAGE BOX
13

09800-21022 TOOL ASSY.

TOOL ASSY.
14

09816-00050 SPANNER 6, HEXAGON

SPANNER 6, HEXAGON
15

09816-00103 SPANNER 4, HEXAGON

SPANNER 4, HEXAGON
