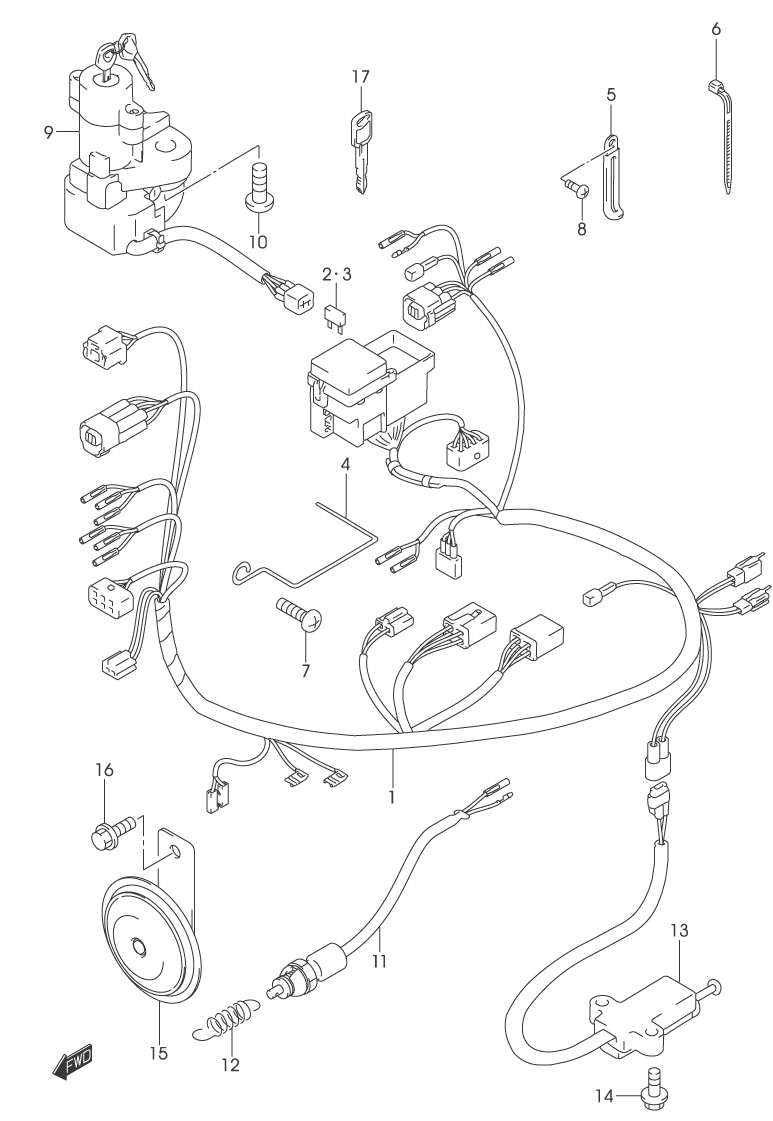

ELECTRICAL - WIRING HARNESS для Suzuki GZ250 K2 - 2002 года выпуска

№

Артикул

Название
1

36610-13FA0 HARNESS, WIRING

HARNESS, WIRING
2

09481-10501 ...FUSE (10A)

...FUSE (10A)
3

09481-15501 ...FUSE (15A)

...FUSE (15A)
4

36619-23E00 GUIDE, WIRING HARNESS

GUIDE, WIRING HARNESS
5-1

09404-06429 CLAMP (L:60)

CLAMP (L:60)
5-2

09404-06431 CLAMP (L:80)

CLAMP (L:80)
5-3

09404-06435 CLAMP (L:135)

CLAMP (L:135)
6-1

09407-14403 CLAMP (L:125)

CLAMP (L:125)
6-2

09407-18402 CLAMP (L:165)

CLAMP (L:165)
6-3

09407-25401 CLAMP (L:235)

CLAMP (L:235)
6-4

09407-11401 CLAMP (L:95)

CLAMP (L:95)
7

01550-06163 BOLT, GUIDE

BOLT, GUIDE
8

03541-04103 SCREW, CLAMP

SCREW, CLAMP
9

37100-33E20 LOCK, STEERING ASSY.

LOCK, STEERING ASSY.
10

09139-08016 SCREW

SCREW
11

37740-04A10 SWITCH, STOP LAMP ASSY.

SWITCH, STOP LAMP ASSY.
12

09443-06046 SPRING, STOP LAMP

SPRING, STOP LAMP
13

37840-44A20 SWITCH, SIDE STAND ASSY.

SWITCH, SIDE STAND ASSY.
14

01550-06163 BOLT

BOLT
15

38500-12FA0 HORN ASSY.

HORN ASSY.
16

01550-08163 BOLT

BOLT
17

37146-33E00 KEY, BLANK (OPT)

KEY, BLANK (OPT)
