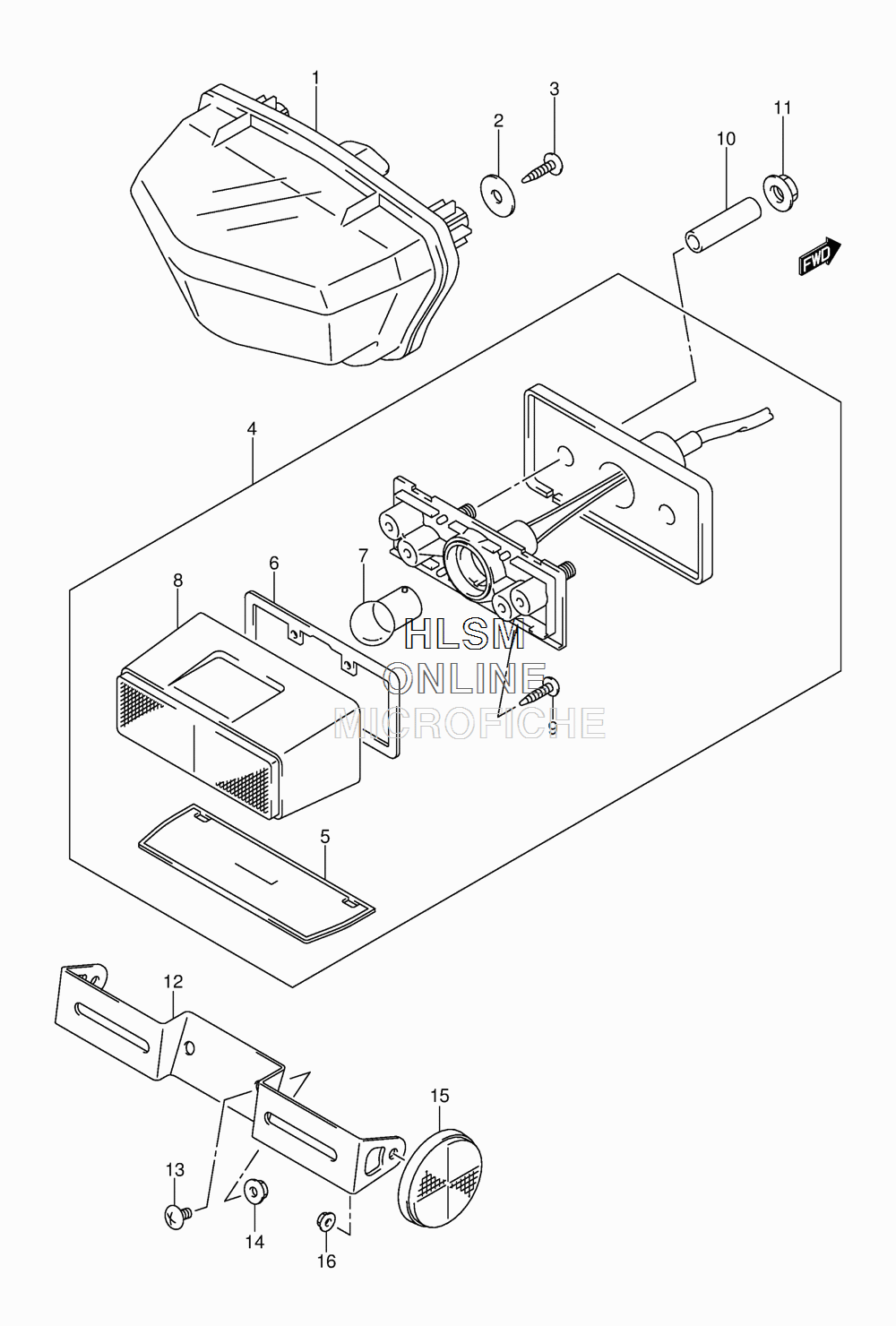

TAILLIGHT ASSY. для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
135710-31J00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
209160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
303541-0516A SCREWSCREW
-
435910-41GC0 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
535912-41G01 LENSLENS
-
635913-41G00 GASKETGASKET
-
709471-12140 BULB (12V,5W)BULB (12V,5W)
-
835917-41G00 COVER, LICENSE LAMPCOVER, LICENSE LAMP
-
903211-0416A SCREWSCREW
-
1009180-06278 SPACER (6.5X9X33.3)SPACER (6.5X9X33.3)
-
1109159-06096 NUTNUT
-
1235927-14J30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1302142-0616A SCREWSCREW
-
1409159-06096 NUTNUT
-
1535970-14A20 REFLEX REFLECTOR ASSY, RR SIDEREFLEX REFLECTOR ASSY, RR SIDE
-
1608316-1005A NUTNUT
