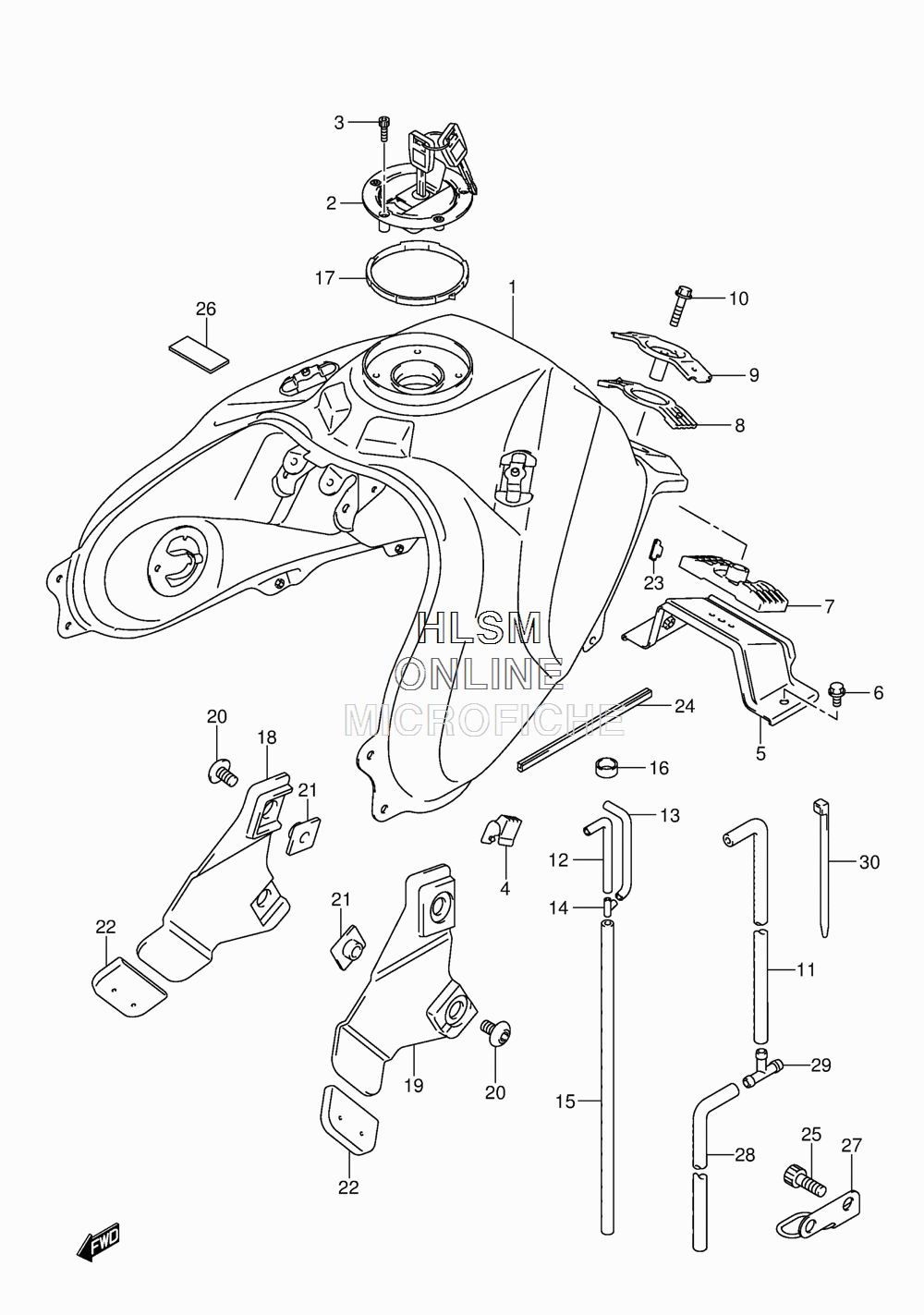

FUEL TANK (CANADA) для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
144100-31J00-YVB TANK, FUEL (BLACK)TANK, FUEL (BLACK)
-
144100-31J00-YWW TANK, FUEL (WHITE)TANK, FUEL (WHITE)
-
144100-31J00-YYG TANK, FUEL (RED)TANK, FUEL (RED)
-
144100-31J00-PRU TANK, FUEL (KHAKI)TANK, FUEL (KHAKI)
-
244200-17810 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLTBOLT
-
444541-31J00 CUSHION, SIDECUSHION, SIDE
-
544550-31J00 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, LOWERCUSHION, LOWER
-
844542-06G00 CUSHION, UPPERCUSHION, UPPER
-
944530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1001550-0835A BOLTBOLT
-
1144423-31J00 HOSE, WATER DRAINHOSE, WATER DRAIN
-
1244424-31J00 HOSE, FUEL TANK BRTHR NO.1HOSE, FUEL TANK BRTHR NO.1
-
1344424-15H10 HOSE, TANK BREATHER NO.2HOSE, TANK BREATHER NO.2
-
1409367-06007 3 WAY3 WAY
-
1544424-31J10 HOSE,FUEL TANK BRTHR NO.2HOSE,FUEL TANK BRTHR NO.2
-
1609352-12163-600 HOSE (12X16X600)HOSE (12X16X600)
-
1768241-31J00 MOLDING, FUEL TANK COVERMOLDING, FUEL TANK COVER
-
1844179-31J00 BRACKET, FUEL TANK COVER SIDE, RIGHT HANDBRACKET, FUEL TANK COVER SIDE, RIGHT HAND
-
1944189-31J00 BRACKET, FUEL TANK COVER SIDE, LEFT HANDBRACKET, FUEL TANK COVER SIDE, LEFT HAND
-
2009139-06181 SCREW (6X10)SCREW (6X10)
-
2144523-47H00 NUT(M6)NUT(M6)
-
2244542-31J00 CUSHION, FUEL TANK COVER BRKTCUSHION, FUEL TANK COVER BRKT
-
2344276-21H00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
2444552-24B00 MOLDING, FUEL TANK RRMOLDING, FUEL TANK RR
-
2507130-1016B BOLTBOLT
-
2644544-31J00 CUSHION, FUEL TANKCUSHION, FUEL TANK
-
2744480-31J00 GUIDE, DRAIN HOSEGUIDE, DRAIN HOSE
-
2844423-31J10 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
2909367-08005 JOINT, WATER DRAINJOINT, WATER DRAIN
-
3009407-14407 CLAMPCLAMP
