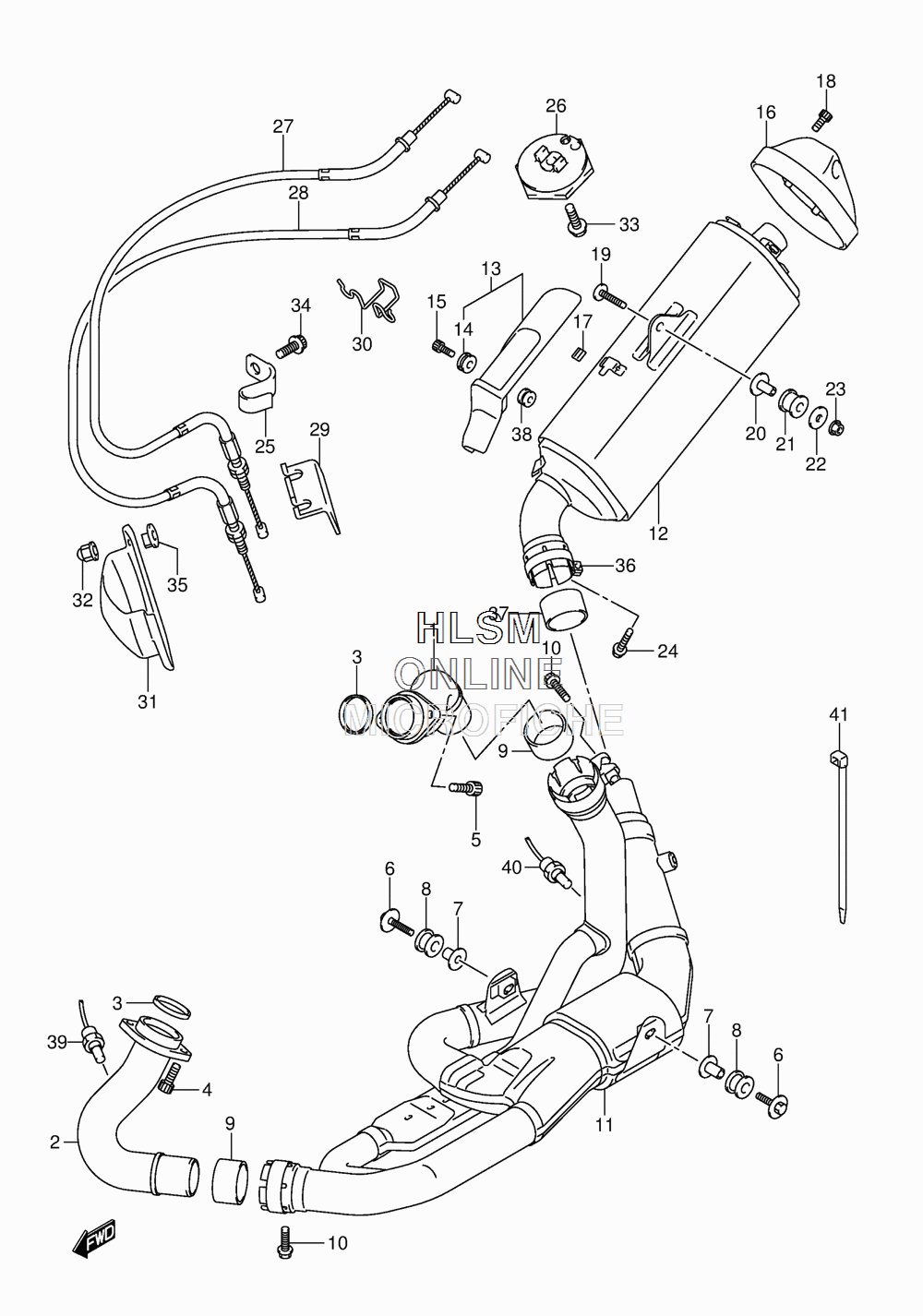

MUFFLER для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
114150-31J00 PIPE, EXHAUST RIGHT HANDPIPE, EXHAUST RIGHT HAND
-
214160-31J00 PIPE, EXHAUST LEFT HANDPIPE, EXHAUST LEFT HAND
-
314181-31D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
409106-08178 BOLT (8X25)BOLT (8X25)
-
507130-0825A BOLTBOLT
-
609118-08152-A05 BOLT (8X45)BOLT (8X45)
-
709180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
809320-12077 CUSHIONCUSHION
-
914771-42F40 CONNECTOR, EXHAUSTCONNECTOR, EXHAUST
-
1009106-08197 BOLT (8X35)BOLT (8X35)
-
1114205-31J00 PIPE, EXHAUST CENTERPIPE, EXHAUST CENTER
-
1214310-31J00 BODY, MUFFLERBODY, MUFFLER
-
1314780-31J00 COVER, MUFFLER FRONTCOVER, MUFFLER FRONT
-
1409320-08066 CUSHIONCUSHION
-
1509139-06128 SCREW (6X12)SCREW (6X12)
-
1614791-31J00 COVER, MUFFLER REARCOVER, MUFFLER REAR
-
1714795-10FA0 GROMMET, MUFFLER COVERGROMMET, MUFFLER COVER
-
1809106-06082 BOLT (6X15)BOLT (6X15)
-
1909106-08164 BOLT (8X45)BOLT (8X45)
-
2009180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
2109320-12049 CUSHIONCUSHION
-
2209160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
2308316-1008A NUTNUT
-
2409106-08197 BOLT (8X35)BOLT (8X35)
-
2509403-11307 BRACKET, EXHAUST VALVE CABLEBRACKET, EXHAUST VALVE CABLE
-
2611269-18G01 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
2711276-31J00 CABLE, EXHAUST VALVE NO.1CABLE, EXHAUST VALVE NO.1
-
2811277-31J00 CABLE, EXHAUST VALVE NO.2CABLE, EXHAUST VALVE NO.2
-
2914250-21H00 BRACKET, EXHAUST VALVE CABLEBRACKET, EXHAUST VALVE CABLE
-
3014252-14J00 GUIDE, EXHAUST VALVE CABLEGUIDE, EXHAUST VALVE CABLE
-
3114280-08J00 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
3209159-06100 NUTNUT
-
3301547-0516A BOLTBOLT
-
3407120-0612A BOLTBOLT
-
3508316-1006A NUTNUT
-
3614459-31J00 CLAMP, MUFFLER CONNECTORCLAMP, MUFFLER CONNECTOR
-
3714771-18H00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
3809320-04009 BUSHBUSH
-
3918213-16H10 SENSOR, OXYGENSENSOR, OXYGEN
-
4018213-18H20 SENSOR, OXYGENSENSOR, OXYGEN
-
4109407-14407 CLAMP (L:145)CLAMP (L:145)
