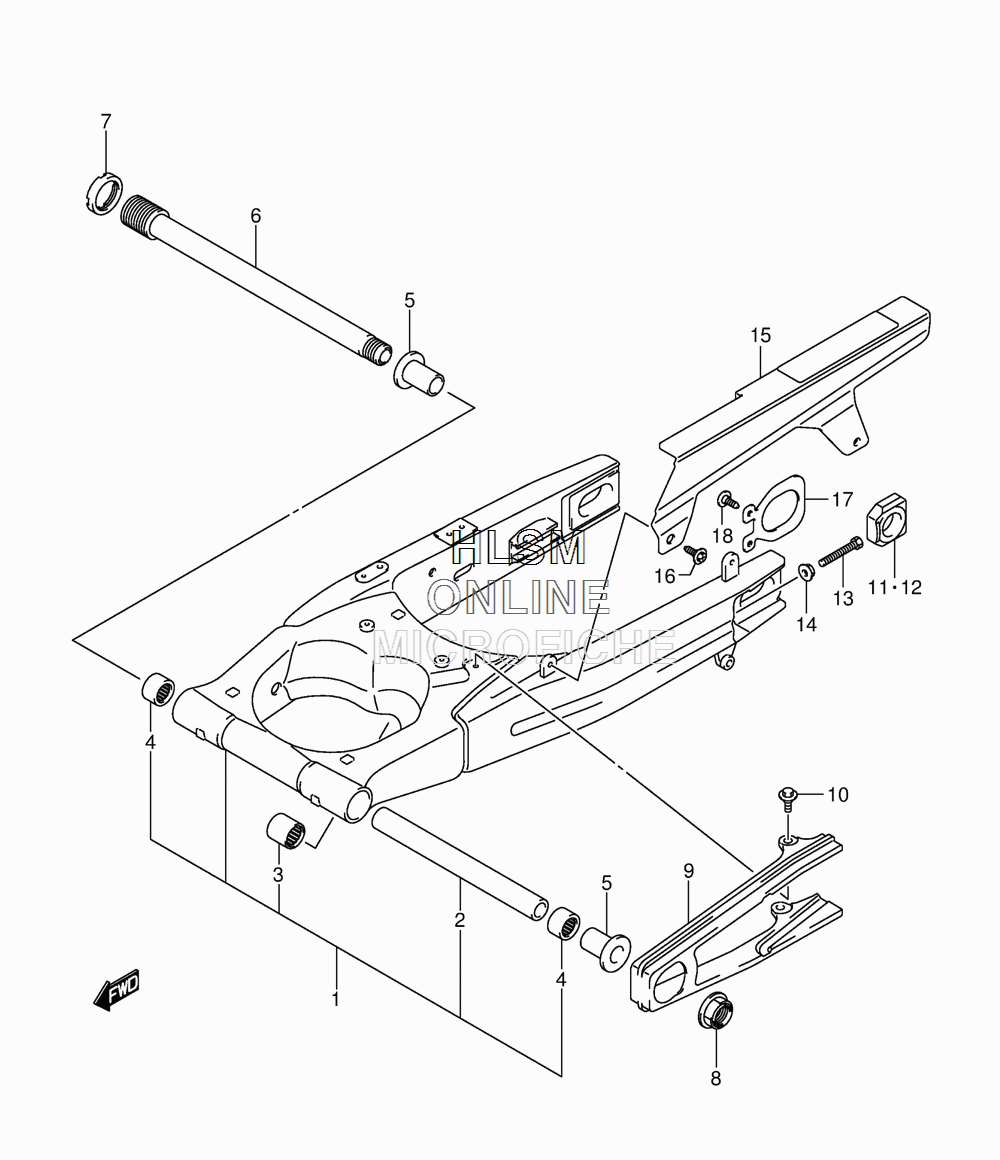

REAR SWINGARM для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
161000-31J00-YAP SWINGING ARM ASSY, REAR (BLACK)SWINGING ARM ASSY, REAR (BLACK)
-
261281-31J00 SPACER (20.8X27.2X196.7)SPACER (20.8X27.2X196.7)
-
309263-20070 BEARING (20X27X30)BEARING (20X27X30)
-
409263-27013 BEARING (27X35X35)BEARING (27X35X35)
-
561251-41G00 SPACER, SWINGING ARMSPACER, SWINGING ARM
-
661211-31J00 SHAFT, RR SWINGING ARM PIVOTSHAFT, RR SWINGING ARM PIVOT
-
761214-42E10 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
809159-20006 NUTNUT
-
961273-31J00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1161446-40F10 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
1261445-40F20 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
1309100-08287 BOLT (8X50)BOLT (8X50)
-
1408316-1008A NUTNUT
-
1561310-16G00 CASE, CHAINCASE, CHAIN
-
1609111-06107 BOLT (6X12)BOLT (6X12)
-
1761124-33E00 PLATE, RR SWINGARM BRKTPLATE, RR SWINGARM BRKT
-
1809125-06060 SCREW (6X12)SCREW (6X12)
