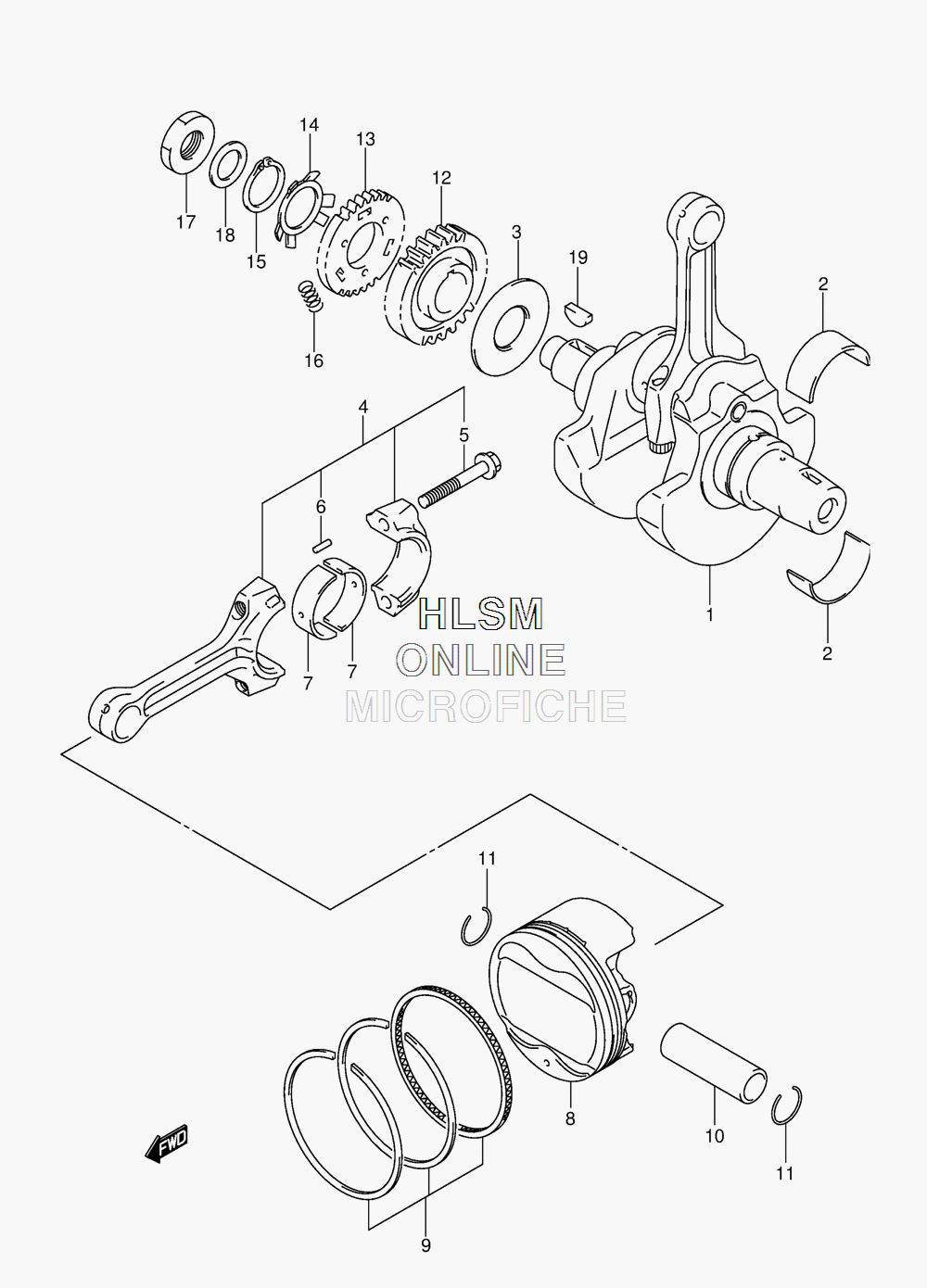

CRANKSHAFT W/ PISTON для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
112220-31J00 CRANKSHAFTCRANKSHAFT
-
212229-31J00-0A0 BEARING, LOWER (GREEN)BEARING, LOWER (GREEN)
-
212229-31J00-0B0 BEARING, LOWER (BLACK)BEARING, LOWER (BLACK)
-
212229-31J00-0C0 BEARING, LOWER (BROWN)BEARING, LOWER (BROWN)
-
312652-38B00 WASHER, CRANK THRUSTWASHER, CRANK THRUST
-
412160-06G10 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
512163-06G00 BOLTBOLT
-
612165-27A50 PINPIN
-
712164-31J00-0A4 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
712164-31J00-0B4 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
712164-31J00-0C4 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
712164-31J00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
812111-31J00-0F2 PISTONPISTON
-
912140-31J00 RING SET, PISTONRING SET, PISTON
-
1012151-02F10 PIN, PISTONPIN, PISTON
-
1109381-22002 CIRCLIPCIRCLIP
-
1221111-02F11 GEAR, PRIMARY DRIVE (NT:31)GEAR, PRIMARY DRIVE (NT:31)
-
1321112-02F00 GEAR, PRIMARY DRIVE SCISSORS (NT:31)GEAR, PRIMARY DRIVE SCISSORS (NT:31)
-
1421114-02F00 WASHERWASHER
-
1508331-31409 CIRCLIPCIRCLIP
-
1609440-07001 SPRINGSPRING
-
1709140-22012 NUTNUT
-
1809164-22007 WASHERWASHER
-
1909420-06001 KEYKEY
