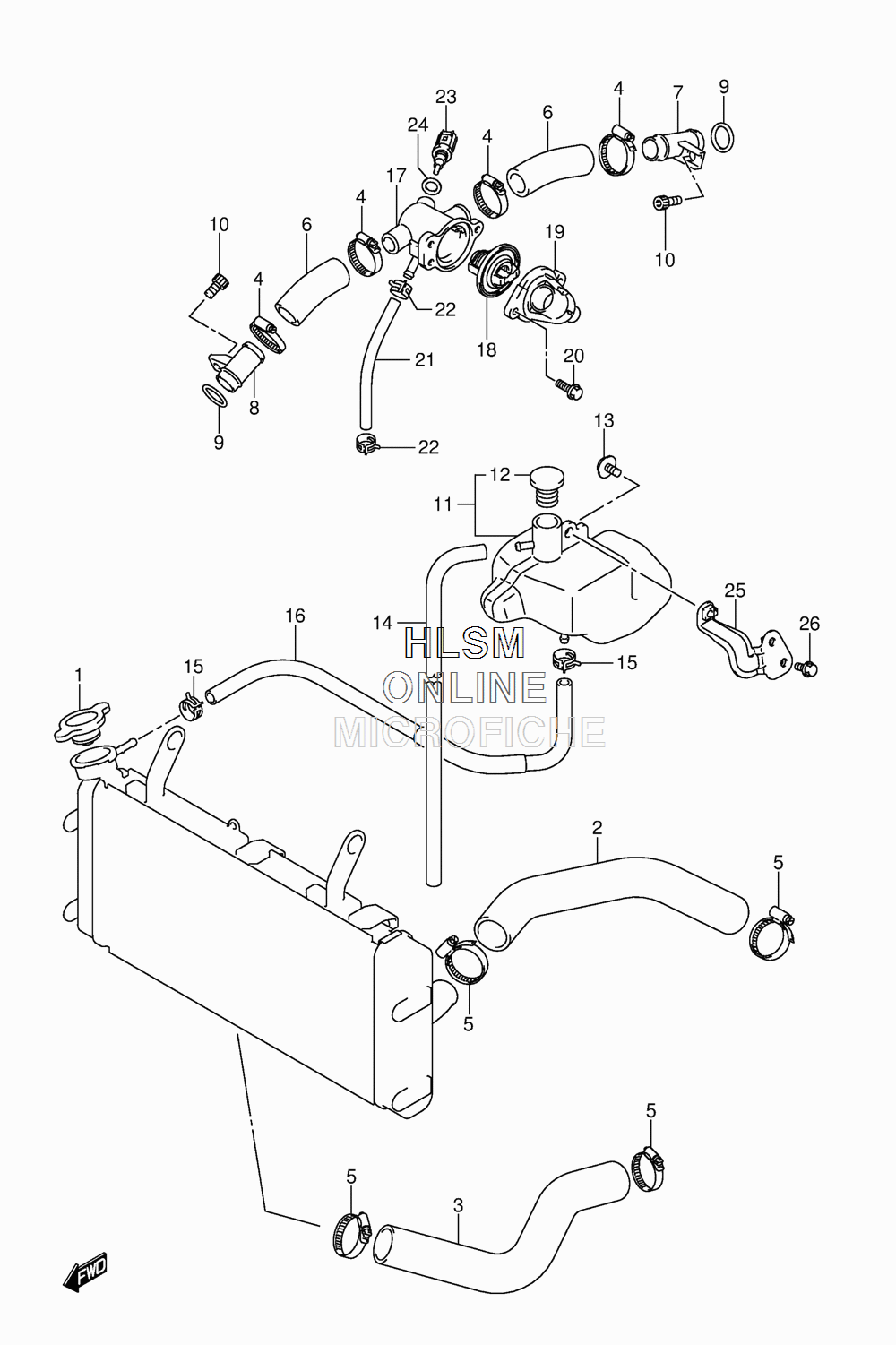

RADIATOR HOSE W/ RESERVOIR для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
117730-14G00 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
217851-31J00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
317852-31J00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
409402-28513 CLAMPCLAMP
-
509402-35501 CLAMPCLAMP
-
617853-02F10 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
717890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
817890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
909280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
1007130-0612A BOLTBOLT
-
1117910-31J00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1217931-31J00 CAPCAP
-
1309111-06085 BOLT (6X12)BOLT (6X12)
-
1417982-31J00 HOSE, RESERVOIR TANK OVFLHOSE, RESERVOIR TANK OVFL
-
1509401-08411 CLIPCLIP
-
1617981-31J00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1717662-02F11 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
1817670-06G50 THERMOSTATTHERMOSTAT
-
1917663-42E00 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2001550-0616A BOLTBOLT
-
2117856-16G10 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
2209401-12409 CLAMPCLAMP
-
2313650-49X00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
2409168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2517920-31J00 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
2601550-0610A BOLTBOLT
