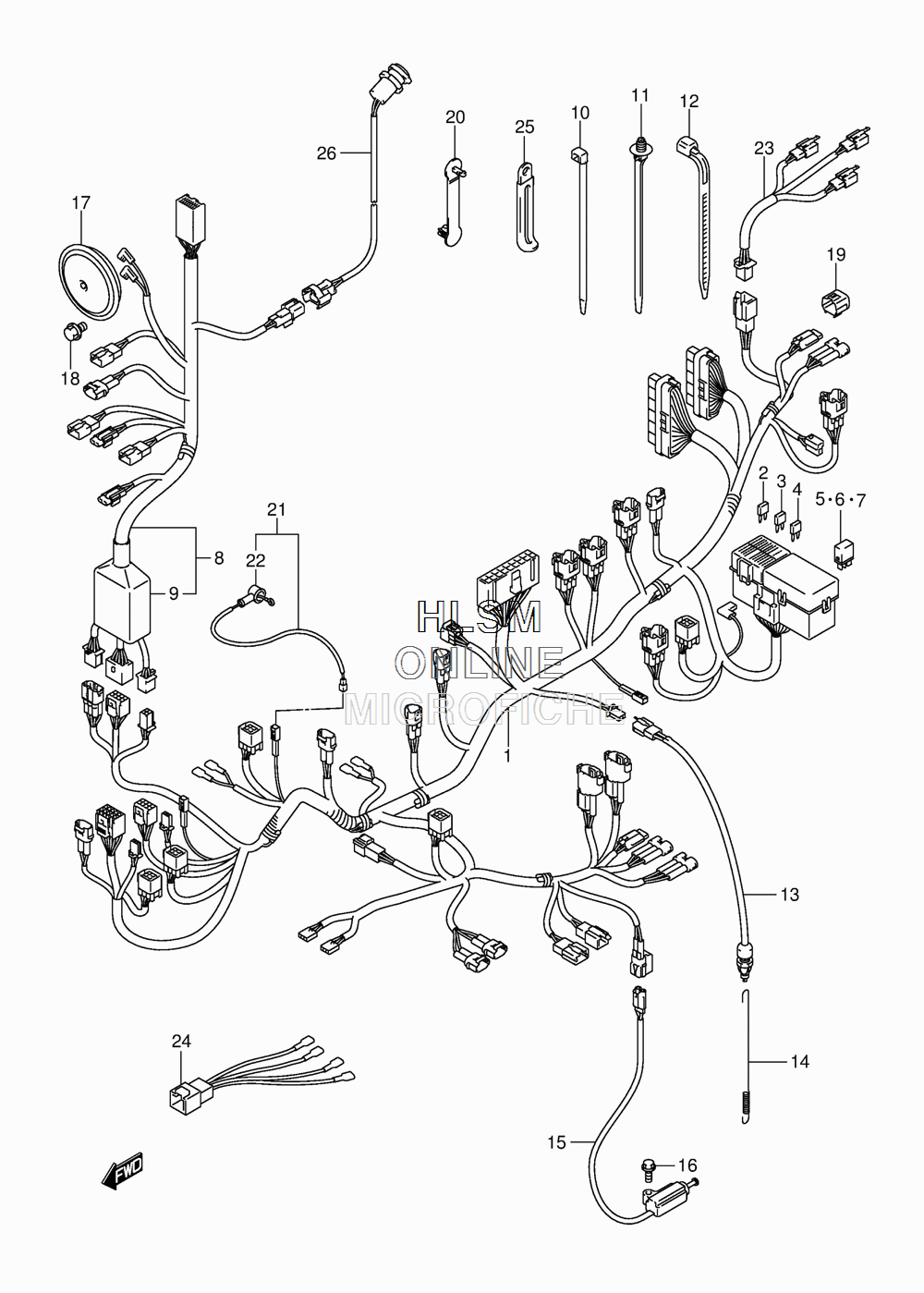

ELECTRICAL - WIRING HARNESS (CALIF.) для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
136610-31J90 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10504 FUSE (10A)FUSE (10A)
-
309481-15504 FUSE (15A)FUSE (15A)
-
409481-25504 FUSE (25A)FUSE (25A)
-
538860-76F01 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
638860-76F01 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
738860-76F01 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
836620-31J00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
936618-18G10 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1109407-17403 CLAMP (L:154)CLAMP (L:154)
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1337740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1443259-31J00 SPRING, STOP LAMPSPRING, STOP LAMP
-
1537840-24F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1609103-08357 BOLT (8X35)BOLT (8X35)
-
1738500-41F50 HORN ASSYHORN ASSY
-
1801550-0612B BOLTBOLT
-
1936654-06J00 CAP, TSCAP, TS
-
2036651-48E00 CLAMPCLAMP
-
2136851-31J00 WIRE, OIL PRESSURE SWITCH LEADWIRE, OIL PRESSURE SWITCH LEAD
-
2236618-43410 CAP, OIL PRESSURE SWITCHCAP, OIL PRESSURE SWITCH
-
2336856-31J00 WIRE, REAR TURNSIGNAL LEADWIRE, REAR TURNSIGNAL LEAD
-
2436854-31J00 WIRE, IGNITION COIL LEADWIRE, IGNITION COIL LEAD
-
2509404-06429 CLAMP (L:45)CLAMP (L:45)
-
2638850-31J00 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
