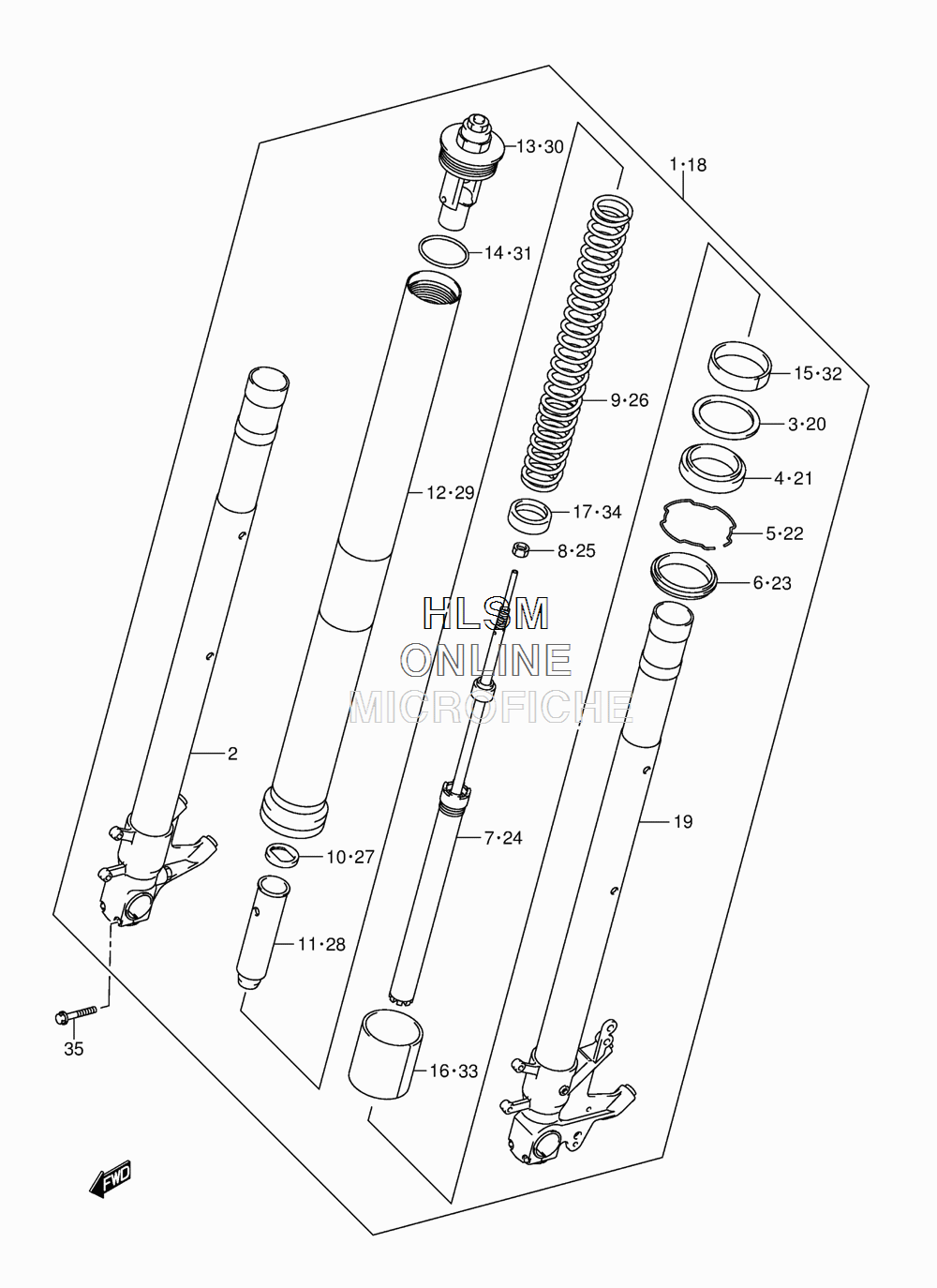

SUSPENSION - FRONT FORK для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
151103-31J00 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-31J00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
351158-40F00 WASHERWASHER
-
451153-44G00 OIL SEALOIL SEAL
-
551156-14200 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
651173-02FA0 SEAL, DUSTSEAL, DUST
-
751146-31J00 CYLINDERCYLINDER
-
851352-13A60 NUT, RODNUT, ROD
-
951171-31J00 SPRINGSPRING
-
1051158-40F30 GUIDE, SPRINGGUIDE, SPRING
-
1151176-48G10 SPACER, SPRINGSPACER, SPRING
-
1251131-31J00 TUBE, OUTERTUBE, OUTER
-
1351351-31J00 CAPCAP
-
1462278-14100 O RINGO RING
-
1551112-31J00 PISTONPISTON
-
1651152-31J00 SLIDEMETALSLIDEMETAL
-
1751178-31J00 SEAT, SPRINGSEAT, SPRING
-
1851104-31J00 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
1951120-31J00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
2051158-40F00 WASHERWASHER
-
2151153-44G00 OIL SEALOIL SEAL
-
2251156-14200 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
2351173-02FA0 SEAL, DUSTSEAL, DUST
-
2451146-31J00 CYLINDERCYLINDER
-
2551352-13A60 NUT, RODNUT, ROD
-
2651171-31J00 SPRINGSPRING
-
2751158-40F30 GUIDE, SPRINGGUIDE, SPRING
-
2851176-48G10 SPACER, SPRINGSPACER, SPRING
-
2951131-31J00 TUBE, OUTERTUBE, OUTER
-
3051351-31J00 CAPCAP
-
3162278-14100 O RINGO RING
-
3251112-31J00 PISTONPISTON
-
3351152-31J00 SLIDEMETALSLIDEMETAL
-
3451178-31J00 SEAT, SPRINGSEAT, SPRING
-
3551166-24F60 BOLTBOLT
