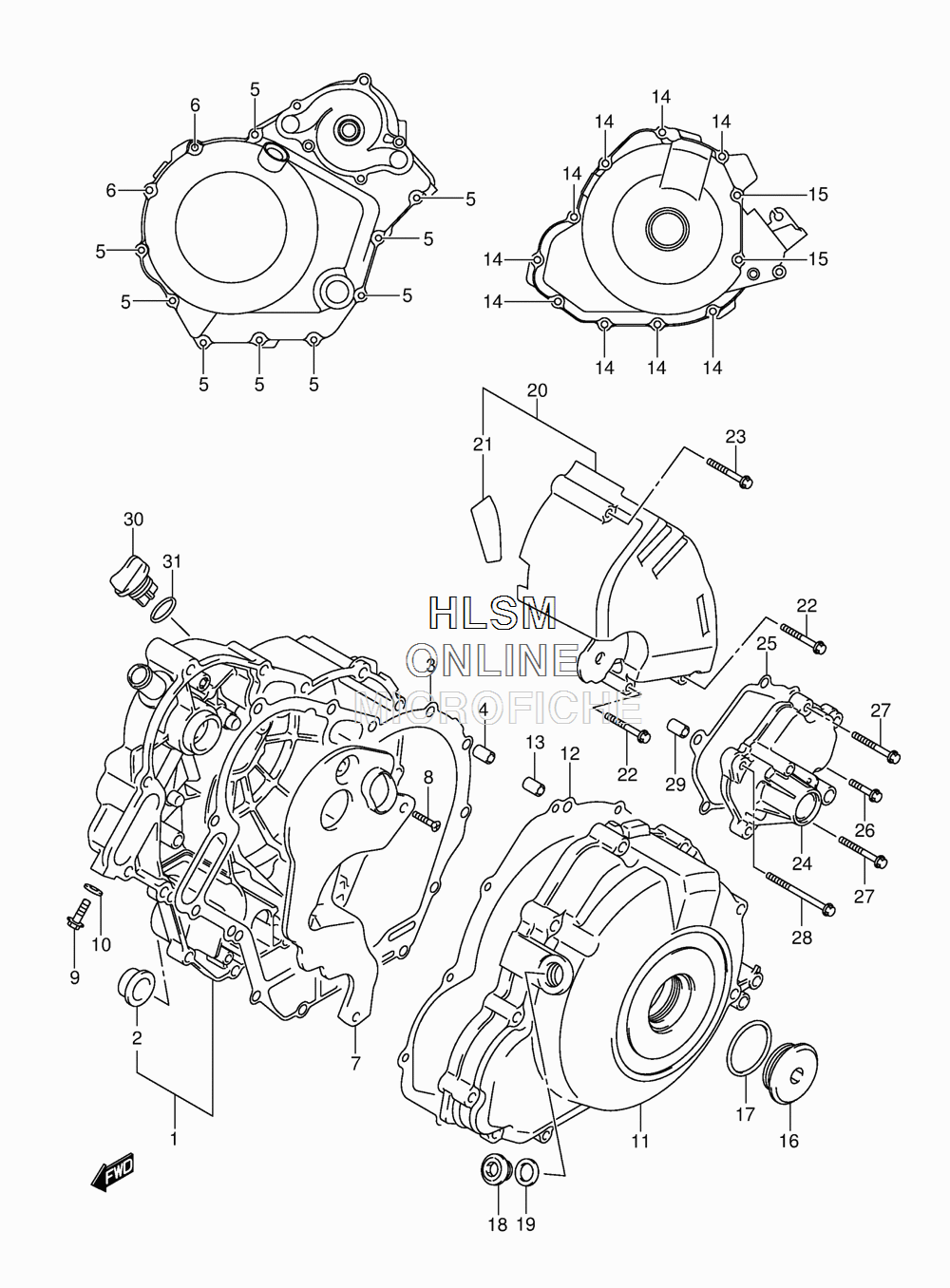

CRANKCASE COVER для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
111340-06G30 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 LENS, OIL LEVEL CHECKLENS, OIL LEVEL CHECK
-
311482-06G10 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-09149 PIN 9X14PIN 9X14
-
509103-06213 BOLT (6X30)BOLT (6X30)
-
609103-06257 BOLT (6X75)BOLT (6X75)
-
711342-06G00 SEPARATOR, OILSEPARATOR, OIL
-
802112-0612A SCREWSCREW
-
901550-0610B BOLTBOLT
-
1009168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1111351-31J00 COVER, MAGNETOCOVER, MAGNETO
-
1211483-02F10 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1304211-09149 PIN 9X14PIN 9X14
-
1409103-06214 BOLT (6X35)BOLT (6X35)
-
1509103-06263 BOLT (6X80)BOLT (6X80)
-
1609259-36026 PLUGPLUG
-
1709280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
1809248-14012 PLUG (14X12)PLUG (14X12)
-
1909168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2011360-31J00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2111362-31J00 SHEET, SPROCKET COVERSHEET, SPROCKET COVER
-
2209103-06214 BOLT (6X35)BOLT (6X35)
-
2309103-06261 BOLT (6X60)BOLT (6X60)
-
2411381-06G00 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
2511485-02F10 GASKETGASKET
-
2609103-06314 BOLT (6X105)BOLT (6X105)
-
2701547-0625A BOLTBOLT
-
2801547-0635A BOLTBOLT
-
2904211-09149 PIN 9X14PIN 9X14
-
3011971-25D00 PLUG, OIL FILLERPLUG, OIL FILLER
-
3109280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
