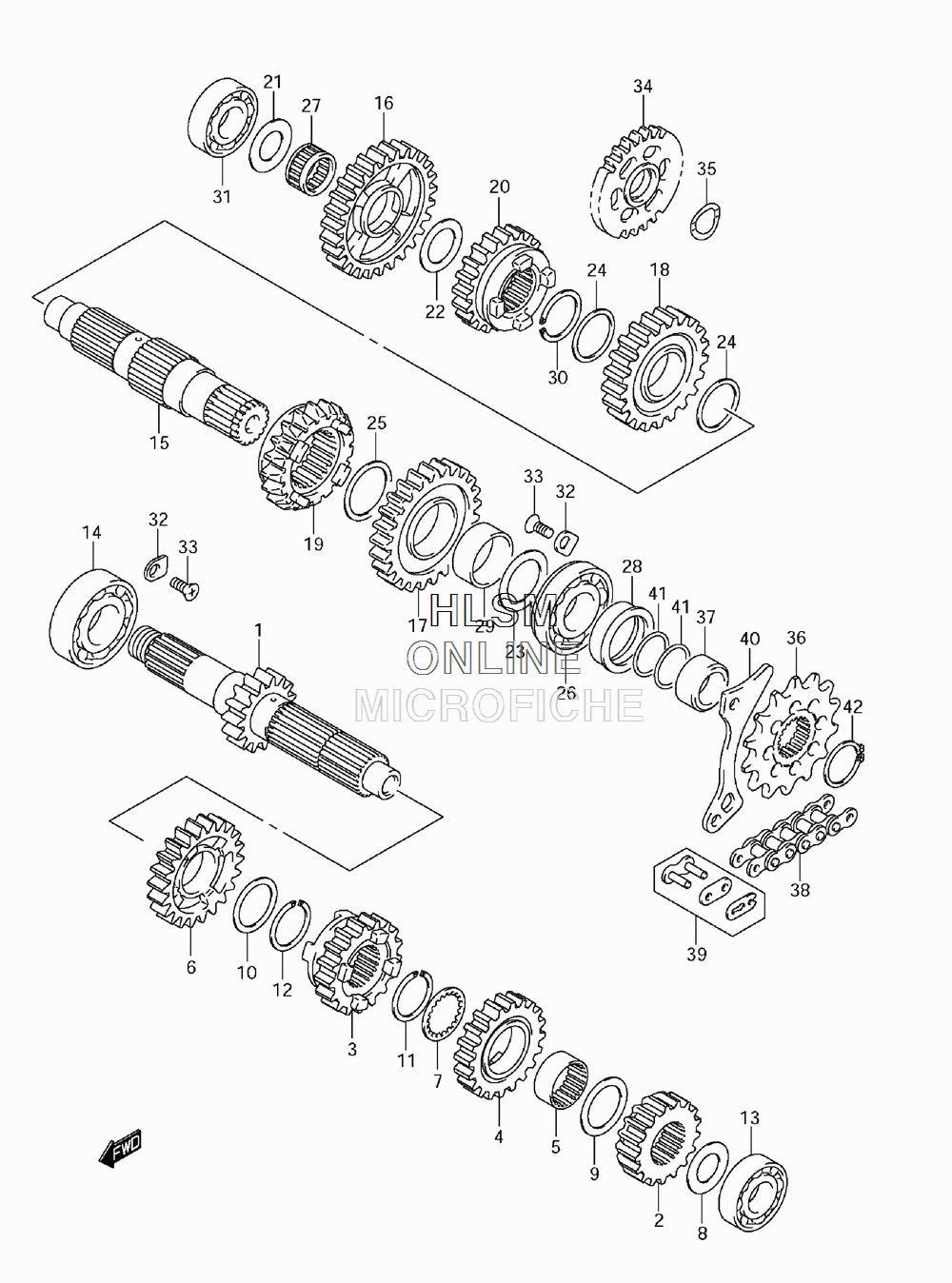

TRANSMISSION для Suzuki RMX-450ZL0 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-02J00 SHAFT, COUNTER (NT:15)
    SHAFT, COUNTER (NT:15)
  • 2
    24221-02J00 GEAR, 2ND DRIVE (NT:17)
    GEAR, 2ND DRIVE (NT:17)
  • 3
    24231-02J00 GEAR, 3RD DRIVE (NT:17)
    GEAR, 3RD DRIVE (NT:17)
  • 4
    24241-02J00 GEAR, 4TH DRIVE (NT:20)
    GEAR, 4TH DRIVE (NT:20)
  • 5
    24242-37F00 BUSH, 4TH DRIVE GEAR
    BUSH, 4TH DRIVE GEAR
  • 6
    24251-02J00 GEAR, 5TH DRIVE (NT:22)
    GEAR, 5TH DRIVE (NT:22)
  • 7
    09167-25026 WASHER, 4TH DRIVE GEAR, R
    WASHER, 4TH DRIVE GEAR, R
  • 8
    09181-17223 WASHER, 2ND DRIVE GEAR 17X30X1.0
    WASHER, 2ND DRIVE GEAR 17X30X1.0
  • 9
    09181-25167 WASHER, 4TH DRIVE GEAR, L 25X34X1
    WASHER, 4TH DRIVE GEAR, L 25X34X1
  • 10
    09181-25111 WASHER, 5TH DRIVE GEAR 25X32X1.0
    WASHER, 5TH DRIVE GEAR 25X32X1.0
  • 11
    09380-25010 CIRCLIP, 4TH DRIVE GEAR
    CIRCLIP, 4TH DRIVE GEAR
  • 12
    09380-25010 CIRCLIP, 5TH DRIVE GEAR
    CIRCLIP, 5TH DRIVE GEAR
  • 13
    08123-62030 BEARING, CNTR SHAFT, LEFT
    BEARING, CNTR SHAFT, LEFT
  • 14
    08143-62057 BEARING, CNTR SHAFT, RIGHT
    BEARING, CNTR SHAFT, RIGHT
  • 15
    24131-28H00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 16
    24311-02J00 GEAR, 1ST DRIVEN (NT:27)
    GEAR, 1ST DRIVEN (NT:27)
  • 17
    24321-02J00 GEAR, 2ND DRIVEN (NT:25)
    GEAR, 2ND DRIVEN (NT:25)
  • 18
    24331-02J00 GEAR, 3RD DRIVEN (NT:21)
    GEAR, 3RD DRIVEN (NT:21)
  • 19
    24341-02J00 GEAR, 4TH DRIVEN (NT:21)
    GEAR, 4TH DRIVEN (NT:21)
  • 20
    24351-02J00 GEAR, 5TH DRIVEN (NT:20)
    GEAR, 5TH DRIVEN (NT:20)
  • 21
    09181-17223 WASHER, 1ST DRIVEN GEAR, RIGHT 17X30X1.0
    WASHER, 1ST DRIVEN GEAR, RIGHT 17X30X1.0
  • 22
    09181-20195 WASHER, 1ST DRIVEN GEAR, LEFT 20X30X1.0
    WASHER, 1ST DRIVEN GEAR, LEFT 20X30X1.0
  • 23
    09181-24005 WASHER, 2ND DRIVEN GEAR, LEFT 24X34X1.0
    WASHER, 2ND DRIVEN GEAR, LEFT 24X34X1.0
  • 24
    09181-25111 WASHER, 3RD DRIVEN GEAR 25X30X1.0
    WASHER, 3RD DRIVEN GEAR 25X30X1.0
  • 25
    09181-27015 WASHER, 2ND DRIVEN GEAR, RIGHT 27X33X1.0
    WASHER, 2ND DRIVEN GEAR, RIGHT 27X33X1.0
  • 26
    09262-24001 BEARING, DRIVE SHAFT, LEFT 24X56X14
    BEARING, DRIVE SHAFT, LEFT 24X56X14
  • 27
    09263-20107 BEARIG, 1ST DRIVEN GEAR 20X24X10
    BEARIG, 1ST DRIVEN GEAR 20X24X10
  • 28
    09289-31003 SEAL, DRIVE SHAFT OIL
    SEAL, DRIVE SHAFT OIL
  • 29
    09300-27005 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 30
    09380-25010 CIRCLIP, 2ND DRIVEN GEAR, RIGHT
    CIRCLIP, 2ND DRIVEN GEAR, RIGHT
  • 31
    08123-62030 BEARING, DRIVE SHAFT, RIGHT
    BEARING, DRIVE SHAFT, RIGHT
  • 32
    24741-20A00 RETAINER, DRIVE SHAFT BRG
    RETAINER, DRIVE SHAFT BRG
  • 33
    09126-06011 SCREW, DRIVE SHAFT BRG
    SCREW, DRIVE SHAFT BRG
  • 34
    26260-35G00 GEAR, KICK STARTER IDLE
    GEAR, KICK STARTER IDLE
  • 35
    26264-28H00 WASHER, KICK IDLE
    WASHER, KICK IDLE
  • 36
    27511-35G30 SPROCKET, ENGINE (NT:13)
    SPROCKET, ENGINE (NT:13)
  • 36
    27511-35G20 SPROCKET, ENGINE (NT:14) (OPT)
    SPROCKET, ENGINE (NT:14) (OPT)
  • 37
    27531-35G01 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 38
    27600-02J00-114 CHAIN ASSY, DRIVE DID520WXV,114LE
    CHAIN ASSY, DRIVE DID520WXV,114LE
  • 39
    27620-02J00 JOINT SET, CHAIN
    JOINT SET, CHAIN
  • 40
    27641-02J00 PLATE, FRONT CHAIN GUIDE
    PLATE, FRONT CHAIN GUIDE
  • 41
    09280-21010 O RING, SPROCKET SPACER D:1.9,ID:21.8
    O RING, SPROCKET SPACER D:1.9,ID:21.8
  • 42
    08331-3124A CIRCLIP, ENGINE SPROCKET
    CIRCLIP, ENGINE SPROCKET
