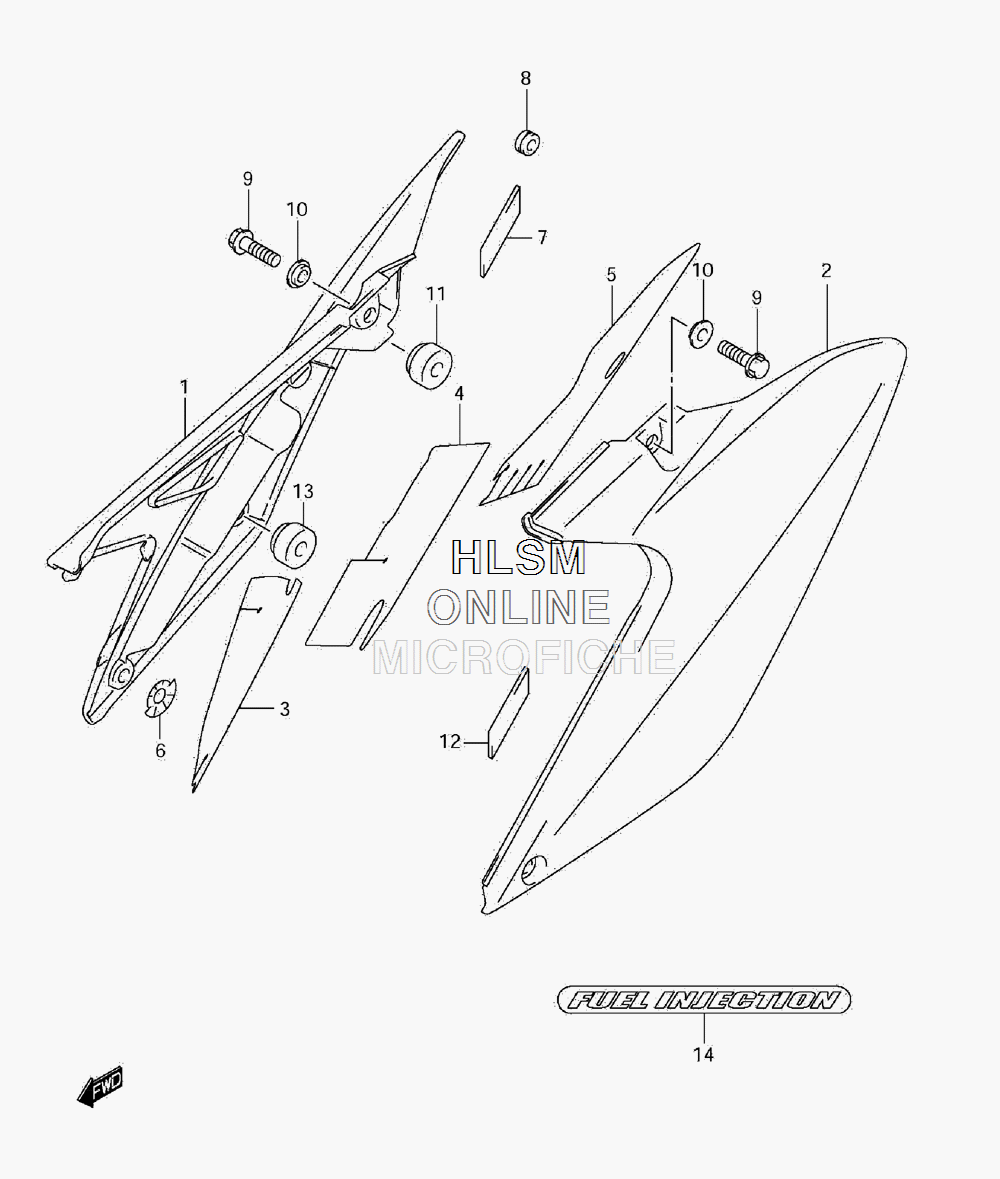

SIDE COVER для Suzuki RMX-450ZL0 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-02J00-30H COVER, FRAME RIGHT HAND (WHITE) (30H)
    COVER, FRAME RIGHT HAND (WHITE) (30H)
  • 2
    47211-02J00-30H COVER, FRAME LEFT HAND (WHITE) (30H)
    COVER, FRAME LEFT HAND (WHITE) (30H)
  • 3
    47166-02J00 SHIELD, COVER RIGHT HAND NO.1
    SHIELD, COVER RIGHT HAND NO.1
  • 4
    47167-02J00 SHIELD, COVER RIGHT HAND NO.2
    SHIELD, COVER RIGHT HAND NO.2
  • 5
    47168-02J00 SHIELD, COVER RIGHT HAND NO.3
    SHIELD, COVER RIGHT HAND NO.3
  • 6
    47169-02J00 SHIELD, COVER RIGHT HAND NO.4
    SHIELD, COVER RIGHT HAND NO.4
  • 7
    71762-65G10 CUSHION, FRONT RIGHT HAND
    CUSHION, FRONT RIGHT HAND
  • 8
    09320-06504 CUSHION, RIGHT HAND
    CUSHION, RIGHT HAND
  • 9
    01547-06207 BOLT, REAR
    BOLT, REAR
  • 10
    47191-02J00 WASHER
    WASHER
  • 11
    47161-08G00 CUSHION, RIGHT HAND
    CUSHION, RIGHT HAND
  • 12
    47161-29F00 CUSHION, LEFT HAND
    CUSHION, LEFT HAND
  • 13
    09321-10040 CUSHION, FRONT RIGHT HAND
    CUSHION, FRONT RIGHT HAND
  • 14
    68131-28H00-FTY EMBLEM
    EMBLEM
