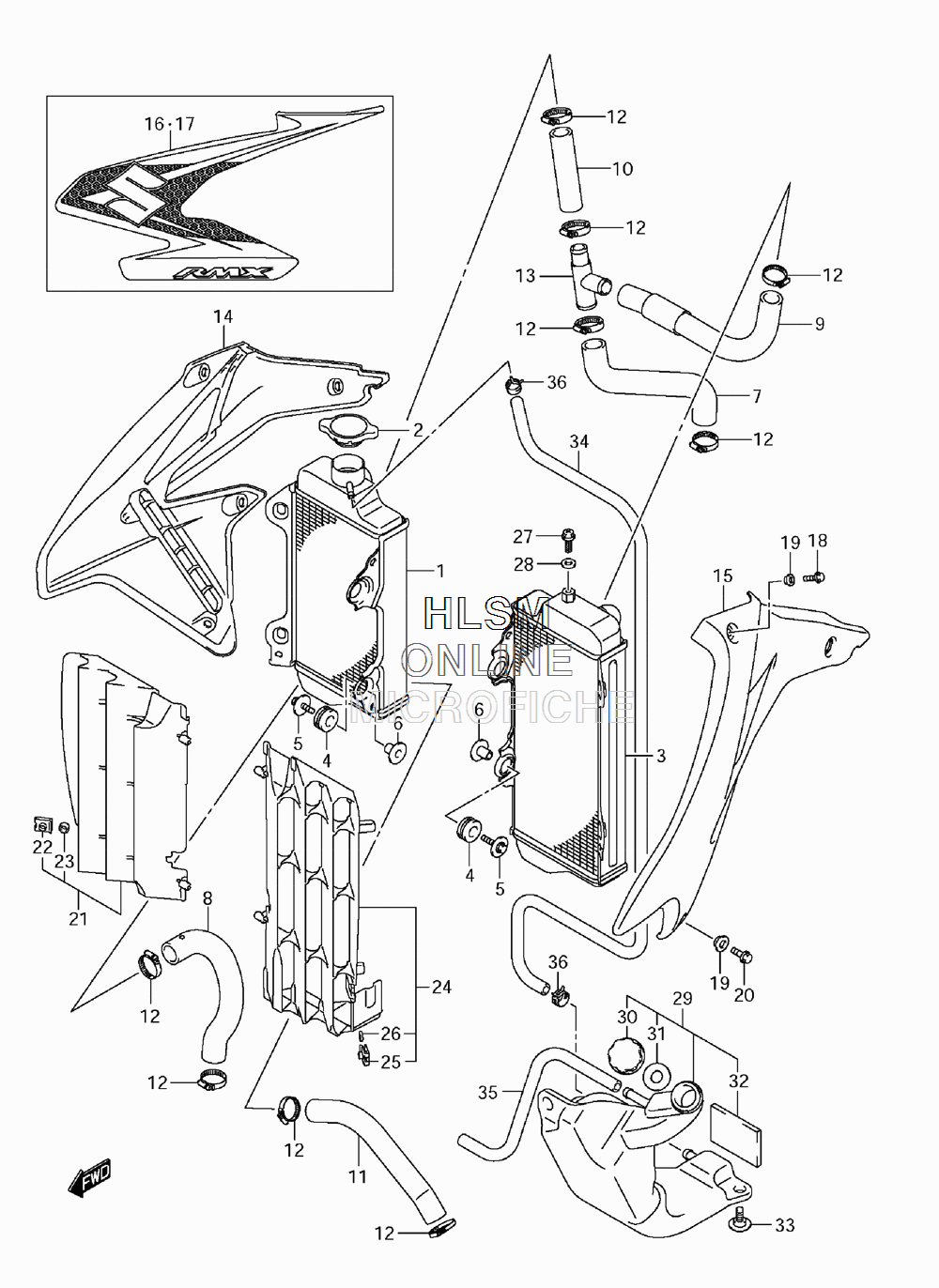

RADIATOR для Suzuki RMX-450ZL0 - 2010 года выпуска

№

Артикул

Название
1

17710-28H20 RADIATOR, RIGHT HAND

RADIATOR, RIGHT HAND
2

17730-12C20 CAP, RADIATOR (1.1)

CAP, RADIATOR (1.1)
3

17720-28H20 RADIATOR, LEFT HAND

RADIATOR, LEFT HAND
4

17787-19A00 CUSHION, SUPPORT

CUSHION, SUPPORT
5

09116-06186 BOLT (6X25)

BOLT (6X25)
6

09180-06243 SPACER

SPACER
7

17851-28H00 HOSE, INLET

HOSE, INLET
8

17852-28H00 HOSE, OUTLET

HOSE, OUTLET
9

17853-28H10 HOSE, JOINT UPPER NO.1

HOSE, JOINT UPPER NO.1
10

17854-28H00 HOSE, JOINT UPPER NO.2

HOSE, JOINT UPPER NO.2
11

17855-28H00 HOSE, JOINT LOWER

HOSE, JOINT LOWER
12

09402-28513 CLAMP

CLAMP
13

17857-35G10 JOINT, RADIATOR HOSE

JOINT, RADIATOR HOSE
14

17761-28H01-GY8 COVER, RADIATOR, RIGHT HAND (YELLOW/BLACK)

COVER, RADIATOR, RIGHT HAND (YELLOW/BLACK)
15

17762-28H01-GY8 COVER, RADIATOR, LEFT HAND (YELLOW/BLACK)

COVER, RADIATOR, LEFT HAND (YELLOW/BLACK)
16

68115-02J00-HBP TAPE, RADIATOR COVER, RIGHT HAND

TAPE, RADIATOR COVER, RIGHT HAND
17

68116-02J00-HBP TAPE, RADIATOR COVER, LEFT HAND

TAPE, RADIATOR COVER, LEFT HAND
18

09103-06233 BOLT (6X12)

BOLT (6X12)
19

47191-02J00 WASHER, RADIATOR COVER

WASHER, RADIATOR COVER
20

09103-06234 BOLT (6X16)

BOLT (6X16)
21

17801-28H10 LOUVER, RADIATOR, R (INCL. 22-23)

LOUVER, RADIATOR, R (INCL. 22-23)
22

09148-06017 NUT

NUT
23

09180-06129 SPACER

SPACER
24

17802-28H10 LOUVER, RADIATOR, L (INCL. 25-26)

LOUVER, RADIATOR, L (INCL. 25-26)
25

09148-06017 NUT

NUT
26

09180-06129 SPACER

SPACER
27

17568-50F00 BOLT, AIR RELEASE

BOLT, AIR RELEASE
28

09168-06026 GASKET

GASKET
29

17910-02J00 TANK ASSY, RESERVOIR (INCL. 30-32)

TANK ASSY, RESERVOIR (INCL. 30-32)
30

17931-02J00 CAP

CAP
31

17932-02J00 GASKET

GASKET
32

17912-02J00 CUSHION

CUSHION
33

17913-02J00 BOLT

BOLT
34

17981-02J00 HOSE, TANK INLET

HOSE, TANK INLET
35

09352-50901-600 HOSE, TANK OVERFLOW L:600!360

HOSE, TANK OVERFLOW L:600!360
36

09401-08411 CLIP

CLIP
