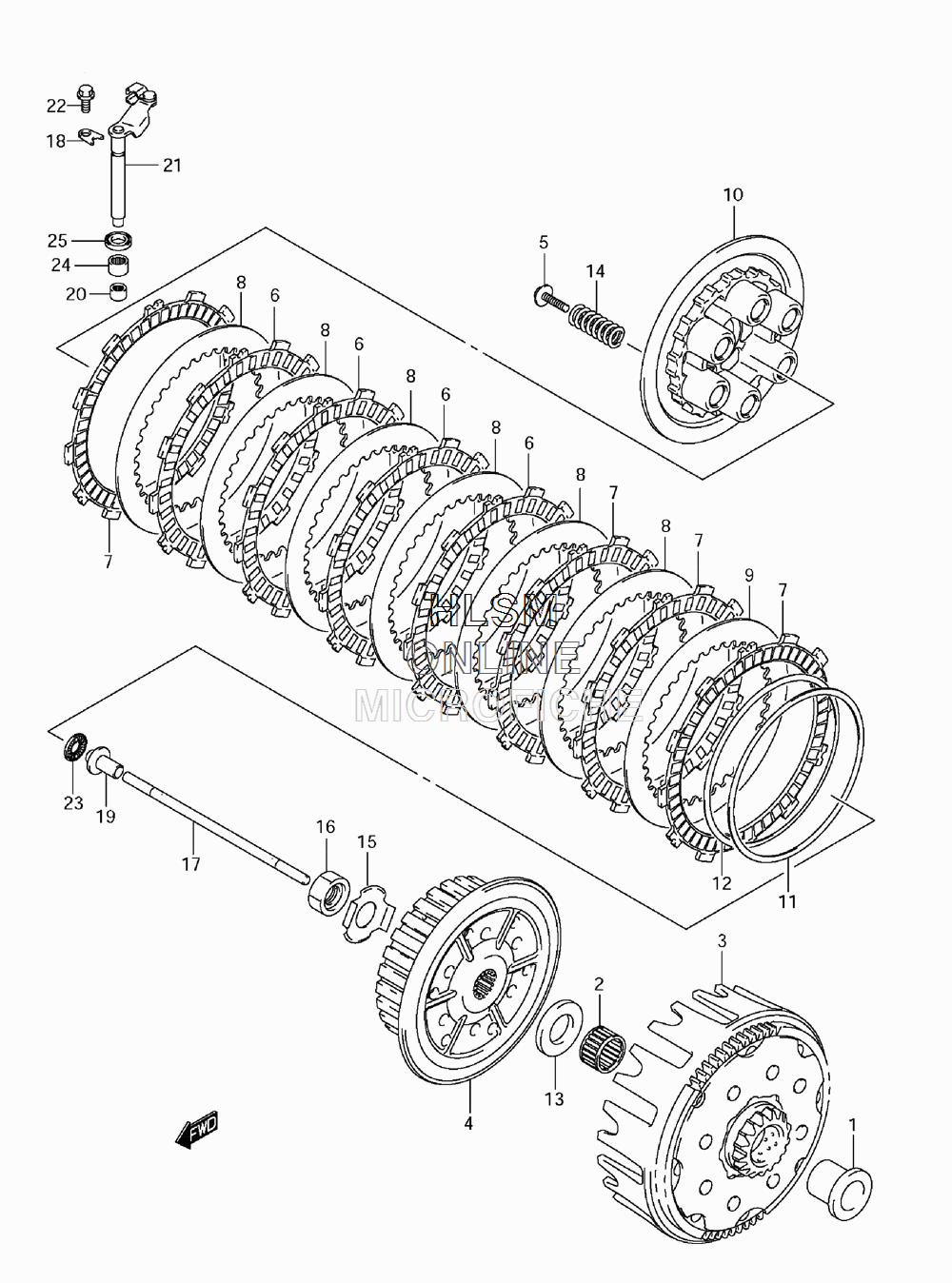

CLUTCH для Suzuki RMX-450ZL0 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    21251-28H00 SPACER, PRI DRIVEN GEAR
    SPACER, PRI DRIVEN GEAR
  • 2
    09263-28042 BEARING, PRIMARY DRIVEN GEAR 28X32X26
    BEARING, PRIMARY DRIVEN GEAR 28X32X26
  • 3
    21200-02J00 GEAR ASSY, PRIMARY DRIVEN NT:16/63
    GEAR ASSY, PRIMARY DRIVEN NT:16/63
  • 4
    21411-35G11 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21412-35G00 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 6
    21441-02J00 PLATE, CLUTCH DRIVE NO.1 T:2.9
    PLATE, CLUTCH DRIVE NO.1 T:2.9
  • 7
    21441-37F30 PLATE, CLUTCH DRIVE NO.2 T:2.9
    PLATE, CLUTCH DRIVE NO.2 T:2.9
  • 8
    21451-35G00 PLATE, CLUTCH DRIVEN T:1.6
    PLATE, CLUTCH DRIVEN T:1.6
  • 9
    21452-35G00 PLATE, CLUTCH DRIVEN T:1.6
    PLATE, CLUTCH DRIVEN T:1.6
  • 10
    21462-28H00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 11
    21471-28H00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 12
    21472-35G00 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 13
    09160-22082 WASHER, CLUTCH SLEEVE HUB THR 22.5X39X3
    WASHER, CLUTCH SLEEVE HUB THR 22.5X39X3
  • 14
    09440-18044 SPRING, CLUTCH
    SPRING, CLUTCH
  • 15
    21416-35G10 WASHER, CLUTCH SLEEVE HUB LOCK
    WASHER, CLUTCH SLEEVE HUB LOCK
  • 16
    09140-18017 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 17
    23110-28H00 ROD, CLUTCH PUB
    ROD, CLUTCH PUB
  • 18
    23117-28H00 RETAINER, CL RELEASE CAMSHAFT
    RETAINER, CL RELEASE CAMSHAFT
  • 19
    23121-37F00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 20
    23129-35G00 BEARING, CLUTCH RELEASE
    BEARING, CLUTCH RELEASE
  • 21
    23200-02J00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 22
    09103-06280 BOLT, CL RLSE CAMSHAFT RTNR 6X12
    BOLT, CL RLSE CAMSHAFT RTNR 6X12
  • 23
    09263-10002 BEARING, CL RELEASE 10X22X2.8
    BEARING, CL RELEASE 10X22X2.8
  • 24
    09263-10014 BEARING, CL RELEASE CAMSHAFT 10X14X10
    BEARING, CL RELEASE CAMSHAFT 10X14X10
  • 25
    09285-10004 SEAL, CL RELEASE CAMSHAFT OIL 10X17X5
    SEAL, CL RELEASE CAMSHAFT OIL 10X17X5
