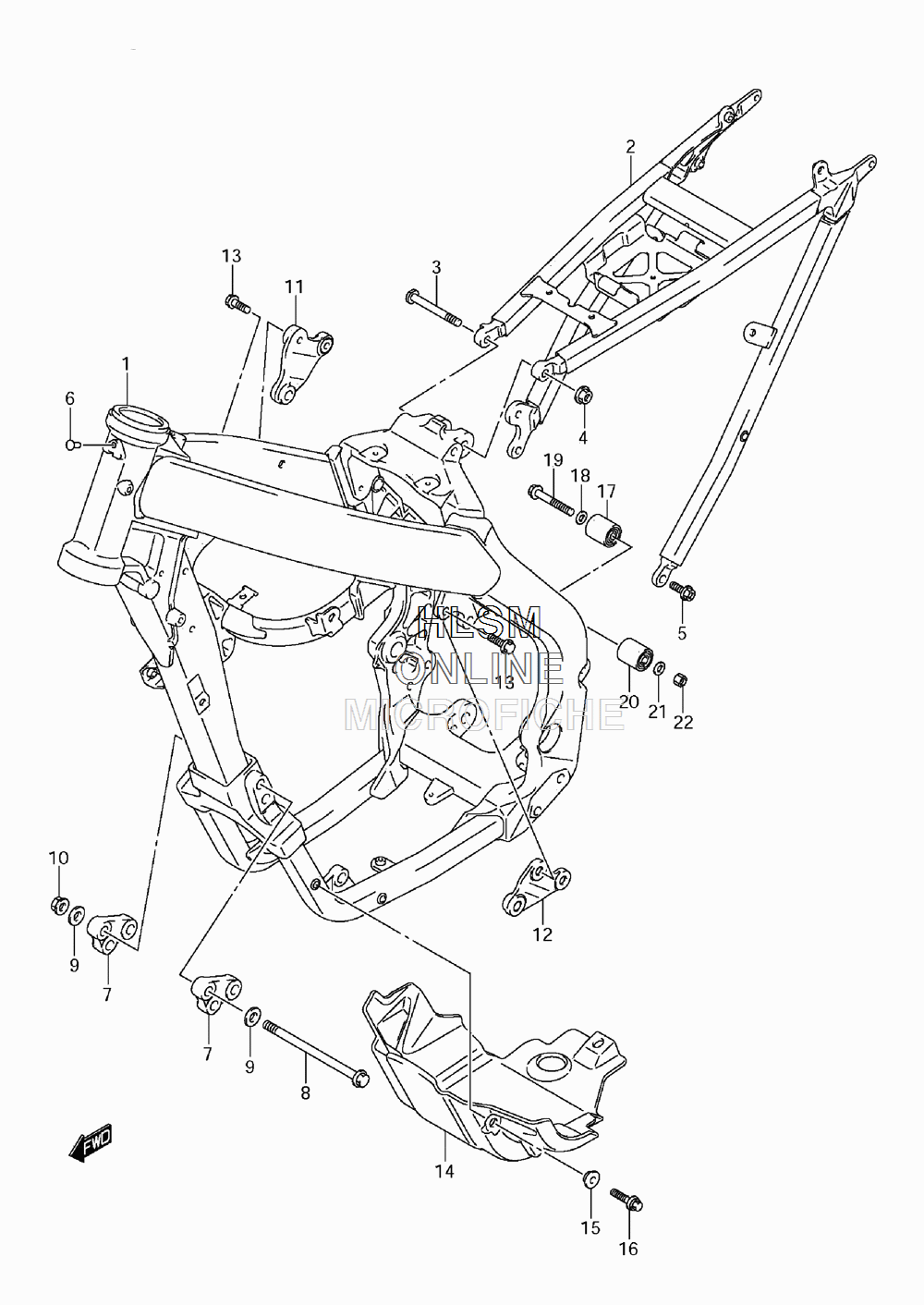

FRAME для Suzuki RMX-450ZL0 - 2010 года выпуска
-
№АртикулНазвание
-
141100-02J00 FRAMEFRAME
-
241200-02J00 RAIL, SEATRAIL, SEAT
-
341311-28H20 BOLT, UPPERBOLT, UPPER
-
408319-3108A NUTNUT
-
509103-08426 BOLT, LOWERBOLT, LOWER
-
609250-05009 CAP, HEAD PLUGCAP, HEAD PLUG
-
741991-02J00 BRACKET, ENGINE MOUNT FRONTBRACKET, ENGINE MOUNT FRONT
-
809103-10388 BOLT, FRONTBOLT, FRONT
-
909160-10039 WASHERWASHER
-
1009159-10115 NUTNUT
-
1141993-28H10 BRACKET, ENGINE MOUNT UPPER RIGHT HANDBRACKET, ENGINE MOUNT UPPER RIGHT HAND
-
1241994-02J10 BRACKET, ENGINE MOUNT UPPER LEFT HANDBRACKET, ENGINE MOUNT UPPER LEFT HAND
-
1309103-08404 BOLT, UPPERBOLT, UPPER
-
1442511-02J00 PROTECTOR, FRONTPROTECTOR, FRONT
-
1542514-02J00 WASHERWASHER
-
1609116-06177 BOLTBOLT
-
1743910-37F00 ROLLER, CHAIN UPPERROLLER, CHAIN UPPER
-
1809181-08167 WASHER, UPPERWASHER, UPPER
-
1909103-08207 BOLT, UPPERBOLT, UPPER
-
2043910-35G00 ROLLER, CHAIN LOWERROLLER, CHAIN LOWER
-
2109181-08111 WASHER, LOWERWASHER, LOWER
-
2208319-2108A NUT, LOWERNUT, LOWER
