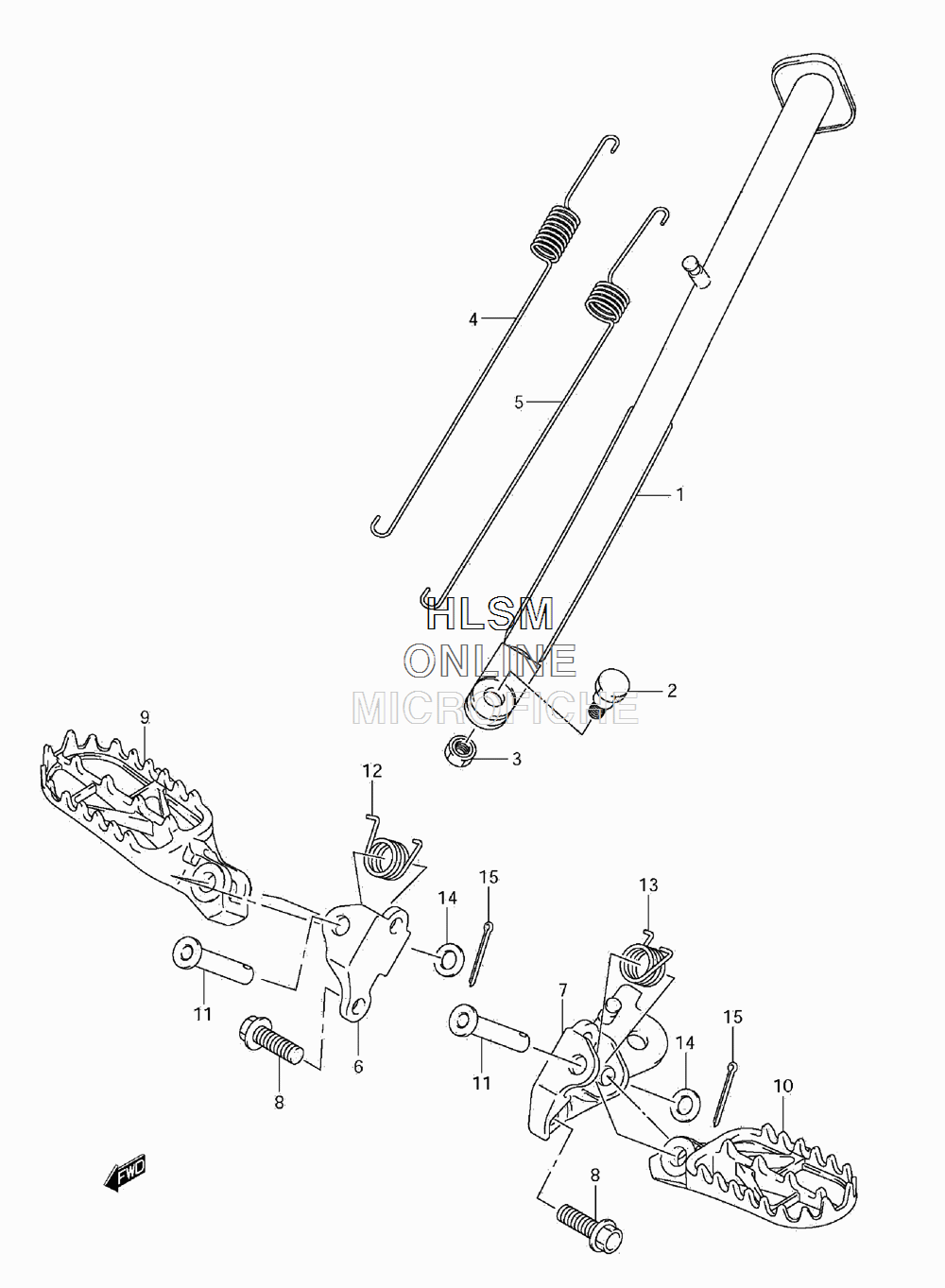

FOOTREST для Suzuki RMX-450ZL0 - 2010 года выпуска
-
№АртикулНазвание
-
142310-02J00 STANDSTAND
-
209111-10060 BOLTBOLT
-
342321-03FK0 NUTNUT
-
442421-02J00 SPRING, INNERSPRING, INNER
-
542422-02J00 SPRING, OUTERSPRING, OUTER
-
641855-28H10 BRACKET, FOOTREST RIGHT HANDBRACKET, FOOTREST RIGHT HAND
-
741865-02J00 BRACKET, FOOTREST LEFT HANDBRACKET, FOOTREST LEFT HAND
-
809103-10435 BOLTBOLT
-
943551-28H10 FOOTREST, RIGHT HANDFOOTREST, RIGHT HAND
-
1043561-28H10 FOOTREST, LEFT HANDFOOTREST, LEFT HAND
-
1109200-10019 PINPIN
-
1209448-21012 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
1309448-21014 SPRING, LEFT HANDSPRING, LEFT HAND
-
1409160-10121 WASHERWASHER
-
1504111-2520A COTTER PINCOTTER PIN
