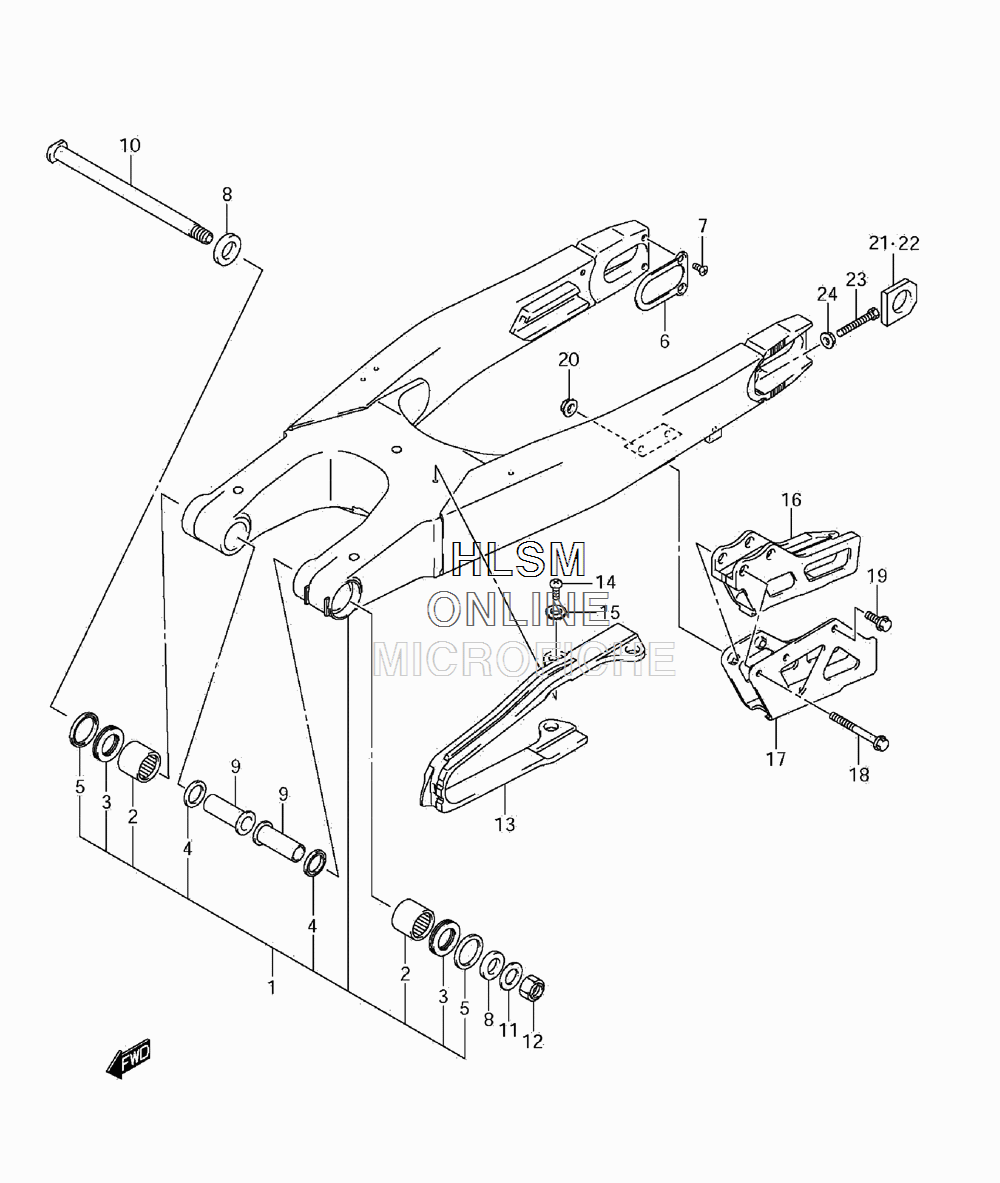

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RMX-450ZL0 - 2010 года выпуска

№

Артикул

Название
1

61000-02J00 SWINGING ARM ASSY, REAR (INCL. 2-5)

SWINGING ARM ASSY, REAR (INCL. 2-5)
2

09263-22017 BEARING, PIVOT (22X29X30)

BEARING, PIVOT (22X29X30)
3

09263-22064 BEARING, OUTER (22X35X2)

BEARING, OUTER (22X35X2)
4

09285-22001 SEAL, INNER (22X29X4)

SEAL, INNER (22X29X4)
5

61262-36E00 SEAL, OUTER (29.2X37X4)

SEAL, OUTER (29.2X37X4)
6

61128-35G00 PLATE, SWINGINGARM, REAR

PLATE, SWINGINGARM, REAR
7

02122-0410B SCREW (4X10)

SCREW (4X10)
8

61251-36E01 SPACER, PIVOT OUTER

SPACER, PIVOT OUTER
9

61252-37F01 SPACER, PIVOT INNER

SPACER, PIVOT INNER
10

61211-28H00 SHAFT, PIVOT

SHAFT, PIVOT
11

08322-0116B WASHER

WASHER
12

09159-16007 NUT

NUT
13

61273-37F10 BUFFER, CHAIN TOUCH DEFENSE

BUFFER, CHAIN TOUCH DEFENSE
14

02112-0508B SCREW

SCREW
15

09169-05022 WASHER

WASHER
16

61341-35G10 GUIDE, CHAIN

GUIDE, CHAIN
17

61342-37F00 PLATE, GUIDE OUTER

PLATE, GUIDE OUTER
18

09103-06242 BOLT, UPPER (6X45)

BOLT, UPPER (6X45)
19

09103-06233 BOLT, REAR (6X12)

BOLT, REAR (6X12)
20

08316-1006B NUT

NUT
21

61445-28H10 WASHER, CHAIN ADJUSTER, RIGHT

WASHER, CHAIN ADJUSTER, RIGHT
22

61446-35G00 WASHER, CHAIN ADJUSTER, LEFT

WASHER, CHAIN ADJUSTER, LEFT
23

09100-08287 BOLT (8X50)

BOLT (8X50)
24

09159-08034 NUT

NUT
