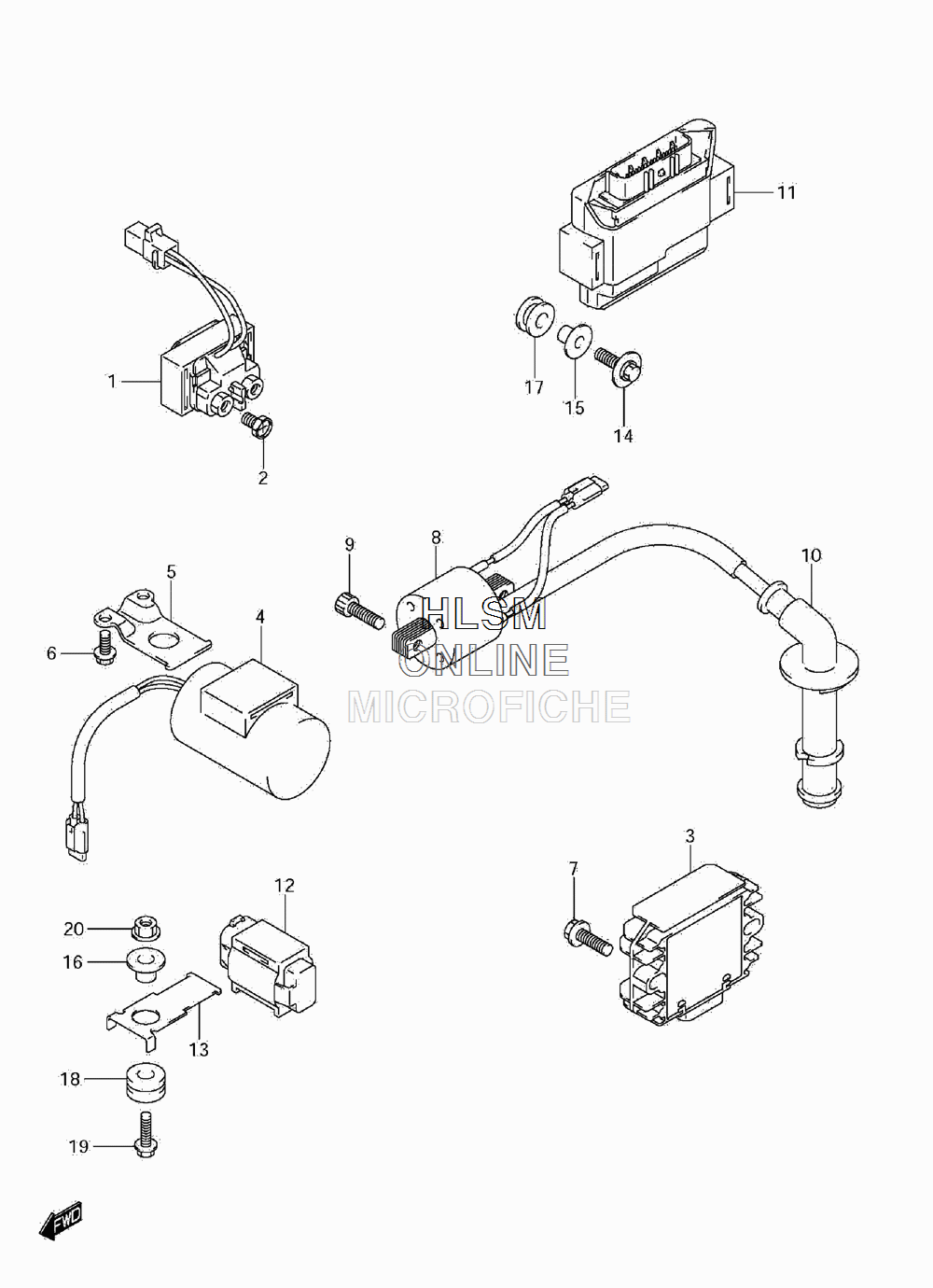

ELECTRICAL для Suzuki RMX-450ZL0 - 2010 года выпуска

№

Артикул

Название
1

31800-03H00 RELAY ASSY, STARTING MOTOR

RELAY ASSY, STARTING MOTOR
2

09128-06013 BOLT (6X8)

BOLT (6X8)
3

32800-05G10 RECTIFIER ASSY

RECTIFIER ASSY
4

33640-28H00 CONDENSER ASSY

CONDENSER ASSY
5

33641-28H00 BRACKET, CONDENSER

BRACKET, CONDENSER
6

09103-06188 BOLT (6X10)

BOLT (6X10)
7

02162-0620C BOLT, RECTIFIER

BOLT, RECTIFIER
8

33410-35G10 COIL ASSY, IGNITION

COIL ASSY, IGNITION
9

07130-0620A BOLT

BOLT
10

33510-28H00 CAP ASSY, SPARK PLUG

CAP ASSY, SPARK PLUG
11

32920-02J10 CONTROL UNIT, FI

CONTROL UNIT, FI
12

33960-06G10 SENSOR ASSY, FUEL CUT

SENSOR ASSY, FUEL CUT
13

33961-28H10 BRACKET, FUEL CUT SENSOR

BRACKET, FUEL CUT SENSOR
14

09116-06182 BOLT (6X20)

BOLT (6X20)
15

09180-06331 SPACER, FI CONTROL UNIT

SPACER, FI CONTROL UNIT
16

09180-06331 SPACER, FUEL CUT SNSR BRACKET

SPACER, FUEL CUT SNSR BRACKET
17

09320-08076 CUSHION, FI CONTROL UNIT

CUSHION, FI CONTROL UNIT
18

09320-08501 CUSHION, FUEL CUT SENSOR

CUSHION, FUEL CUT SENSOR
19

01547-0620A BOLT

BOLT
20

08316-1006A NUT

NUT
