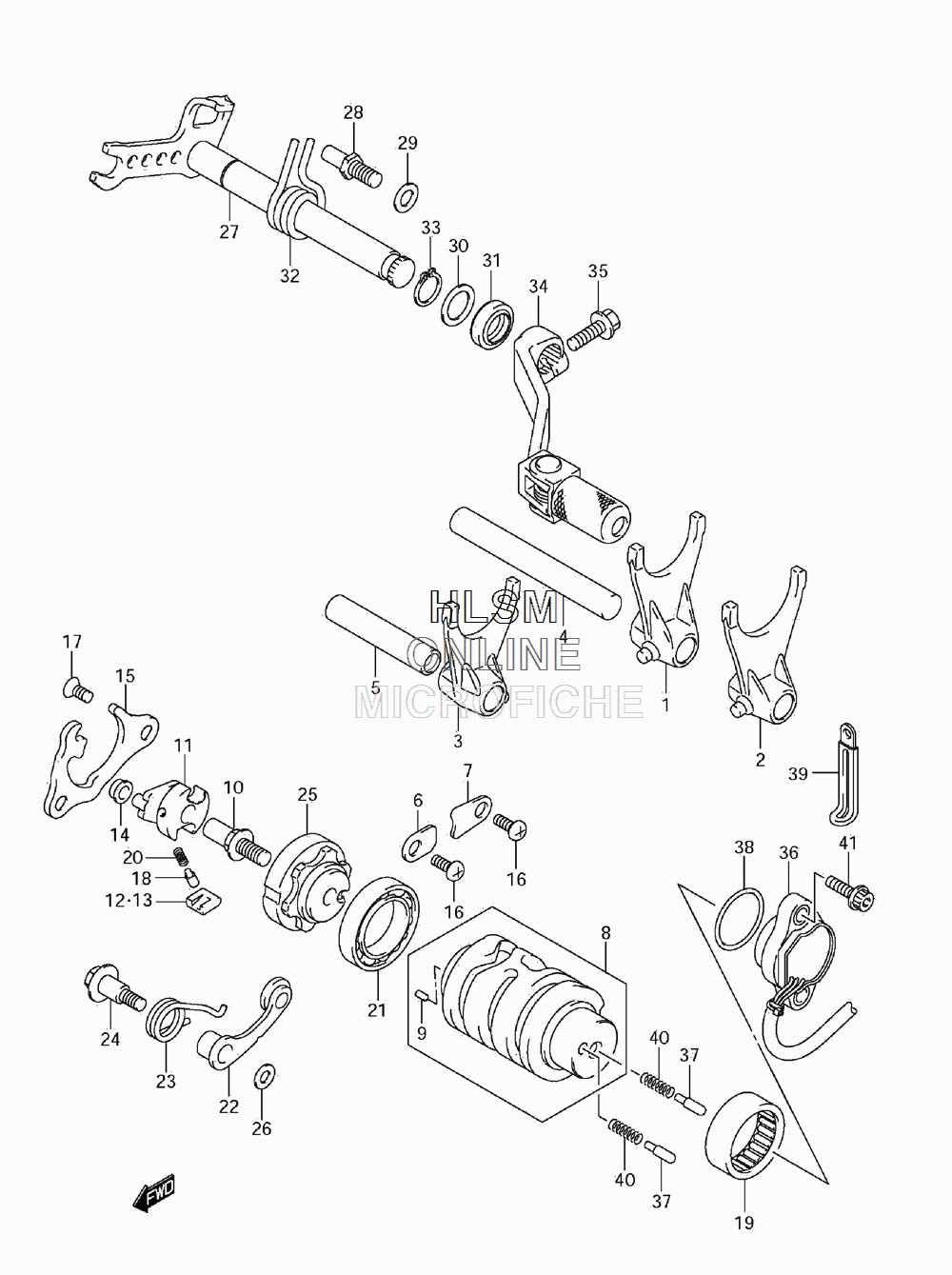

GEAR SHIFTING для Suzuki RMX-450ZL0 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    25211-28H00 FORK, GEAR SHIFT NO.1
    FORK, GEAR SHIFT NO.1
  • 2
    25221-28H00 FORK, GEAR SHIFT NO.2
    FORK, GEAR SHIFT NO.2
  • 3
    25231-28H00 FORK, GEAR SHIFT NO.3
    FORK, GEAR SHIFT NO.3
  • 4
    25411-28H00 SHAFT, GEAR SHIFT FORK NO.1
    SHAFT, GEAR SHIFT FORK NO.1
  • 5
    25421-28H00 SHAFT, GEAR SHIFT FORK NO.2
    SHAFT, GEAR SHIFT FORK NO.2
  • 6
    24741-21A00 RETAINER, SHIFT CAM BEARING
    RETAINER, SHIFT CAM BEARING
  • 7
    24742-18A00 RETAINER, SHIFT SHAFT BRG NO.2
    RETAINER, SHIFT SHAFT BRG NO.2
  • 8
    25310-28H00 CAM, GEAR SHIFT (INCL. 9)
    CAM, GEAR SHIFT (INCL. 9)
  • 9
    04221-04089 PIN, SHIFT CAM STOPPER PLATE 4X11.2
    PIN, SHIFT CAM STOPPER PLATE 4X11.2
  • 10
    25313-37F00 PIN, GEAR SHIFT CAM DRIVEN
    PIN, GEAR SHIFT CAM DRIVEN
  • 11
    25322-28H00 SHIFTER, GEAR SHIFT CAM
    SHIFTER, GEAR SHIFT CAM
  • 12
    25323-34201 PAWL, GEAR SHIFT NO.1
    PAWL, GEAR SHIFT NO.1
  • 13
    25324-34201 PAWL, GEAR SHIFT NO.2
    PAWL, GEAR SHIFT NO.2
  • 14
    25325-28H00 ROLLER, GEAR SHIFT CAM SHIFTER
    ROLLER, GEAR SHIFT CAM SHIFTER
  • 15
    25331-28H00 LIFTER, GEAR SHIFT PAWL
    LIFTER, GEAR SHIFT PAWL
  • 16
    09125-06110 SCREW, SHIFT CAM BEARING RTNR 6X12
    SCREW, SHIFT CAM BEARING RTNR 6X12
  • 17
    09126-06011 SCREW, SHIFT PAWL LIFTER
    SCREW, SHIFT PAWL LIFTER
  • 18
    09209-05023 PIN, SHIFT PAWL CLICK
    PIN, SHIFT PAWL CLICK
  • 19
    09263-25018 BEARING, GEAR SHIFT CAM, L 25X32X12
    BEARING, GEAR SHIFT CAM, L 25X32X12
  • 20
    09440-04003 SPRING, SHIFT PAWL RETURN
    SPRING, SHIFT PAWL RETURN
  • 21
    08140-68050 BEARING, GEAR SHIFT CAM, R
    BEARING, GEAR SHIFT CAM, R
  • 22
    25350-28H00 STOPPER COMR, GEAR SHIFT CAM
    STOPPER COMR, GEAR SHIFT CAM
  • 23
    25355-28H00 SPRING, GEAR SHIFT CAM STOPPER
    SPRING, GEAR SHIFT CAM STOPPER
  • 24
    25357-28H00 BOLT, SHIFT CAM STOPPER
    BOLT, SHIFT CAM STOPPER
  • 25
    25381-10H00 PLATE, GEAR SHIFT CAM STOPPER
    PLATE, GEAR SHIFT CAM STOPPER
  • 26
    08211-06121 WASHER, GEAR SHIFT CAM STOPPER
    WASHER, GEAR SHIFT CAM STOPPER
  • 27
    25510-02J00 SHAFT, GEAR SHIFT
    SHAFT, GEAR SHIFT
  • 28
    25671-10H00 STOPPER, GEAR SHIFT ARM
    STOPPER, GEAR SHIFT ARM
  • 29
    09181-08139 WASHER, GEAR SHIFT ARM STOPPER 8.8X14X1.0
    WASHER, GEAR SHIFT ARM STOPPER 8.8X14X1.0
  • 30
    09181-14139 WASHER, GEAR SHIFT SHAFT 14X20X1.0
    WASHER, GEAR SHIFT SHAFT 14X20X1.0
  • 31
    09283-14006 SEAL, SHIFT SHAFT OIL 14X22X6
    SEAL, SHIFT SHAFT OIL 14X22X6
  • 32
    09444-20011 SPRING, SHIFT SHAFT RETURN
    SPRING, SHIFT SHAFT RETURN
  • 33
    08331-3114A CIRCLIP, GEAR SHIFT SHAFT
    CIRCLIP, GEAR SHIFT SHAFT
  • 34
    25600-02J00 LEVER ASSY, GEAR SHIFT LEVER
    LEVER ASSY, GEAR SHIFT LEVER
  • 35
    01547-06207 BOLT, GEAR SHIFT LEVER
    BOLT, GEAR SHIFT LEVER
  • 36
    37730-49H00 BASE ASSY, GEAR SHIFT TERM
    BASE ASSY, GEAR SHIFT TERM
  • 37
    09209-05011 CONTACT, GEAR SHIFT SW
    CONTACT, GEAR SHIFT SW
  • 38
    09280-26005 O RING, GEAR SHIFT SW D:2.4,ID:26.2
    O RING, GEAR SHIFT SW D:2.4,ID:26.2
  • 39
    09404-06429 CLAMP (L:45)
    CLAMP (L:45)
  • 40
    09440-04010 SPRING, GEAR SHIFT SW
    SPRING, GEAR SHIFT SW
  • 41
    07120-0516A BOLT, GEAR SHIFT SW
    BOLT, GEAR SHIFT SW
