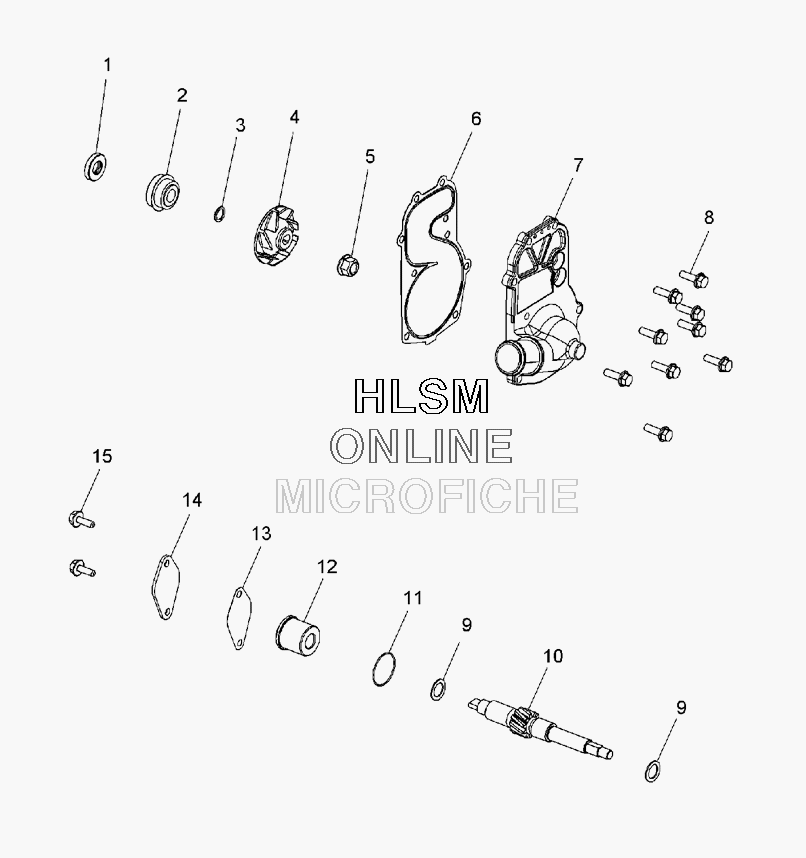

WATER PUMP для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S, ARSSEAL, TYPE S, ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLAT, SS.WASHER, FLAT, SS.
-
45436648 IMPELLER-WATERPUMPIMPELLER-WATERPUMP
-
57547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
65811601 GASKET, WATERPUMP CVRIGHT HANDGASKET, WATERPUMP CVRIGHT HAND
-
75631951 COVER-WATERPUMP, SNOW HI-FLOWCOVER-WATERPUMP, SNOW HI-FLOW
-
87516822 SCREWSCREW
-
97555977 WASHER, THRUSTWASHER, THRUST
-
105135221 SHAFT-GEAR, WATER/OIL NOTCH DRSHAFT-GEAR, WATER/OIL NOTCH DR
-
115412942 O-RING .801X.941X.070O-RING .801X.941X.070
-
125136084 BEARING-PUMP SHFT, FLANGE 23DIABEARING-PUMP SHFT, FLANGE 23DIA
-
135813204 GASKET-OIL PUMP COVERGASKET-OIL PUMP COVER
-
145251243 COVER-CASE, OIL PUMPCOVER-CASE, OIL PUMP
-
157517431 SCREWSCREW
