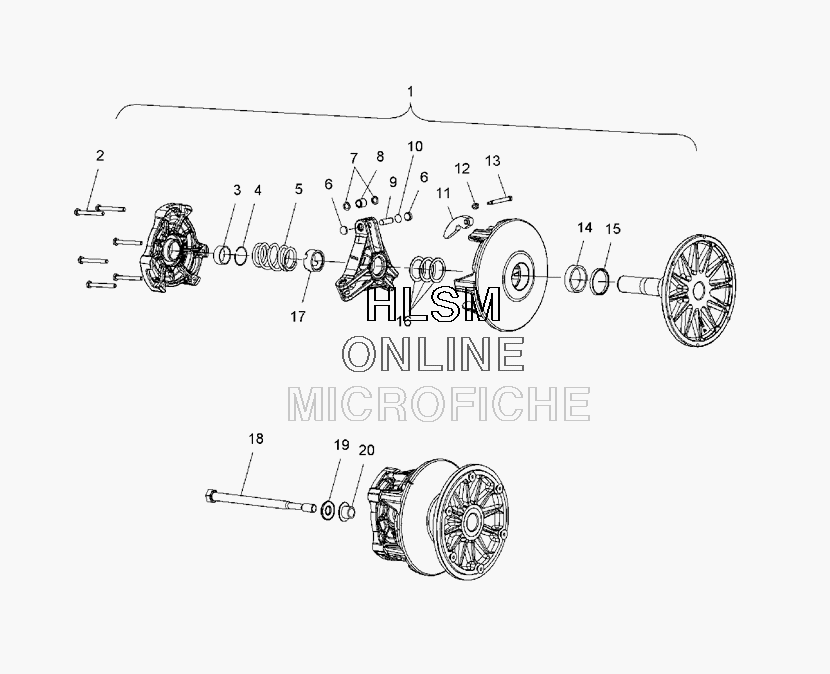

CLUTCH - DRIVE для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
11322746 ASM-DRIVE CLUTCH, BSC, BT, RACE (INCL. ALL LESS 5, 11, 18-20)ASM-DRIVE CLUTCH, BSC, BT, RACE (INCL. ALL LESS 5, 11, 18-20)
-
27518349 SCR-1/4-20X2 1/4 HX WH GR5-YSCR-1/4-20X2 1/4 HX WH GR5-Y
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041988 SPRING-CLUTCH DRIVE ALMOND/REDSPRING-CLUTCH DRIVE ALMOND/RED
-
65430445 BUTTON, GUIDE, .245''BUTTON, GUIDE, .245''
-
75430945 WASHERWASHER
-
81321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
95133079 PIN-ROLLER, 1'', SBNPIN-ROLLER, 1'', SBN
-
102200387 KIT, SHIM, DRIVE CLUTCHKIT, SHIM, DRIVE CLUTCH
-
111321588 WT/BUSH.ASM, 10-58WT/BUSH.ASM, 10-58
-
127541906 NUT FLEXLOCNUT FLEXLOC
-
137515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165210754 SPACER, .050SPACER, .050
-
165210753 SPACER, .032SPACER, .032
-
165242981 SPACER, .025SPACER, .025
-
165210752 SPACER, .020SPACER, .020
-
175020425 NUT, JAMNUT, JAM
-
187517501 SCR-M14X1.5X215, HX, 10.9, Y35, RSCR-M14X1.5X215, HX, 10.9, Y35, R
-
197556003 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
