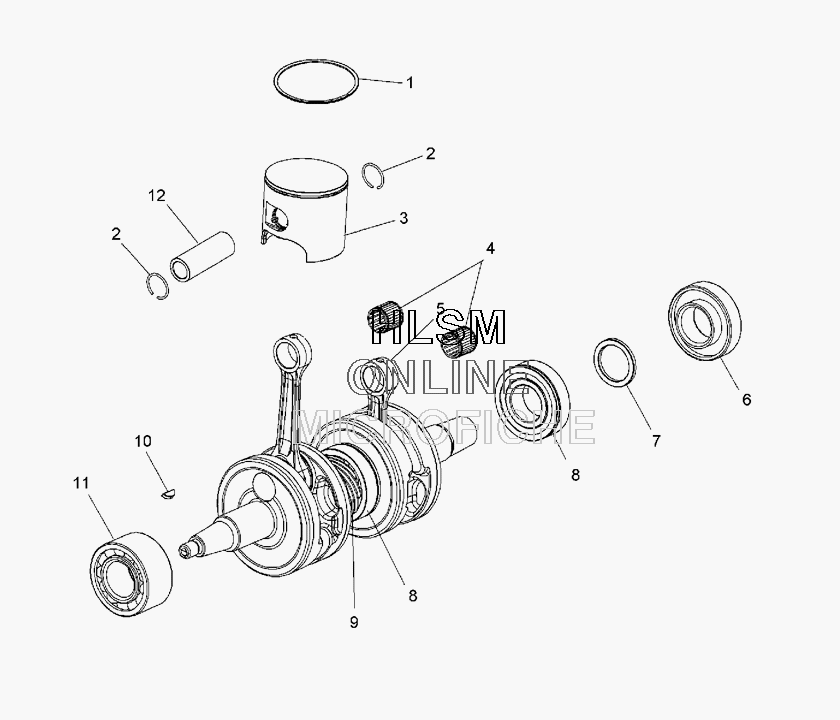

CRANKSHAFT ASSY. W/ PISTON для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 2203803 KIT-CRANKSHAFT, 600R (INCL. 4, 5, 7-9, 11)
    KIT-CRANKSHAFT, 600R (INCL. 4, 5, 7-9, 11)
  • 1
    2203612 KIT-PISTON RINGS 73MM [1 RING/KIT)
    KIT-PISTON RINGS 73MM [1 RING/KIT)
  • 2
    3021840 CIRCLIP-PISTON 22MM X 1.5
    CIRCLIP-PISTON 22MM X 1.5
  • 3
    2203611 KIT-PISTON 73MM
    KIT-PISTON 73MM
  • 4
    3514357 BEARING-17-22X27X25, PNPIN, KOYO
    BEARING-17-22X27X25, PNPIN, KOYO
  • 5
    2203584 KIT-CON ROD ASM, 5135789
    KIT-CON ROD ASM, 5135789
  • 6
    3514310 BEARING, BALL, EXTRACE
    BEARING, BALL, EXTRACE
  • 7
    5131899 SPACER
    SPACER
  • 8
    3514363 BEARING-BALL, 35X72X20, SL, KOYO
    BEARING-BALL, 35X72X20, SL, KOYO
  • 9
    5133689 GEAR-PUMP DRIVE 10 START
    GEAR-PUMP DRIVE 10 START
  • 10
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 11
    3514499 BEARING-BALL, DBLROW 35X72X36.5
    BEARING-BALL, DBLROW 35X72X36.5
