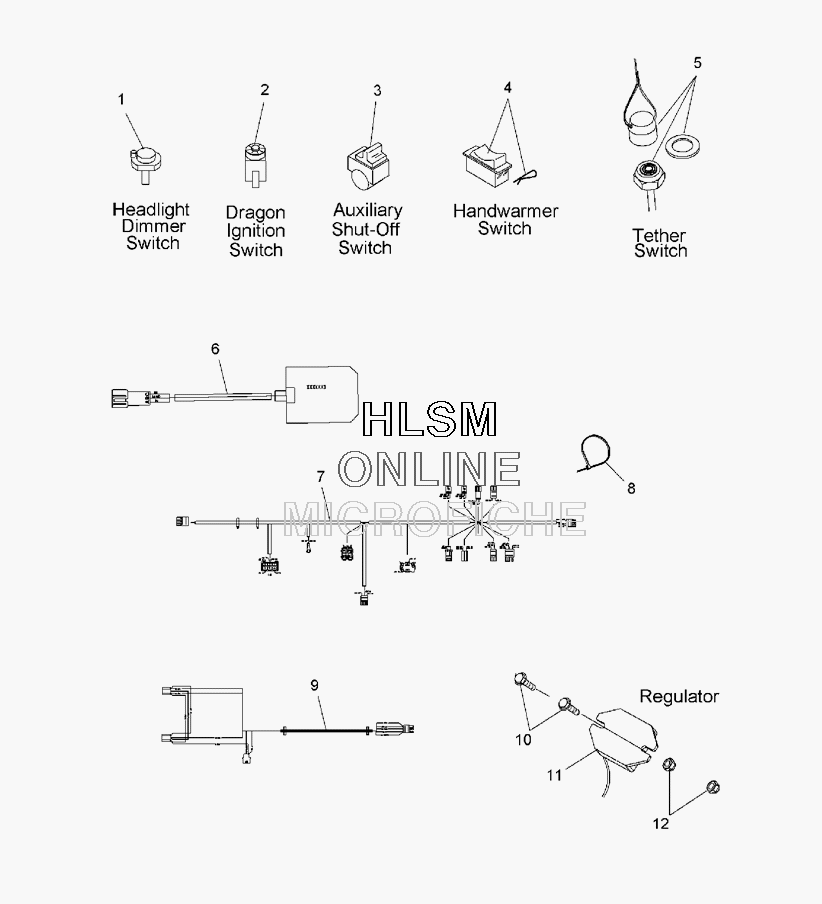

HARNESS W/ ACCESSORIES для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
14110107 SWITCH, DIMMERSWITCH, DIMMER
-
24010311 SWITCH, BUTTONSWITCH, BUTTON
-
34110101 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
-
44011864 SWITCH-HEATER HI/LOSWITCH-HEATER HI/LO
-
47661124 HAIRPIN-COTTER 3/16-1/4HAIRPIN-COTTER 3/16-1/4
-
54010849 SWITCH-TETHERSWITCH-TETHER
-
57556212 WASHER-7/16 SAE, STF, THRU-HRD-YWASHER-7/16 SAE, STF, THRU-HRD-Y
-
62411007 GRIP HEATER, HI/LOGRIP HEATER, HI/LO
-
72410998 MAIN-HARNESSMAIN-HARNESS
-
87080138 CABLE TIECABLE TIE
-
92410593 HARNESS-HDLITEHARNESS-HDLITE
-
107512018 SCREWSCREW
-
114010793 REGULATOR-AC, 14.3VREGULATOR-AC, 14.3V
-
127518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/FOOTRESTS
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FRAME - CHASSIS
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY
- • HARNESS W/ ACCESSORIES
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD MOUNTING W/ FRONT BUMPER
- NOSEPAN AND SIDEPANELS
- RECOIL STARTER
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STEERING - LOWER
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - WALKER EVANS - FRONT TRACK SHOCK
- SUSPENSION - WALKER EVANS - REAR TRACK SHOCK
- SUSPENSION - WALKER EVANS - SHOCK IFS
- THROTTLE ASSEMBLY
- TOOL KIT
- WATER PUMP
