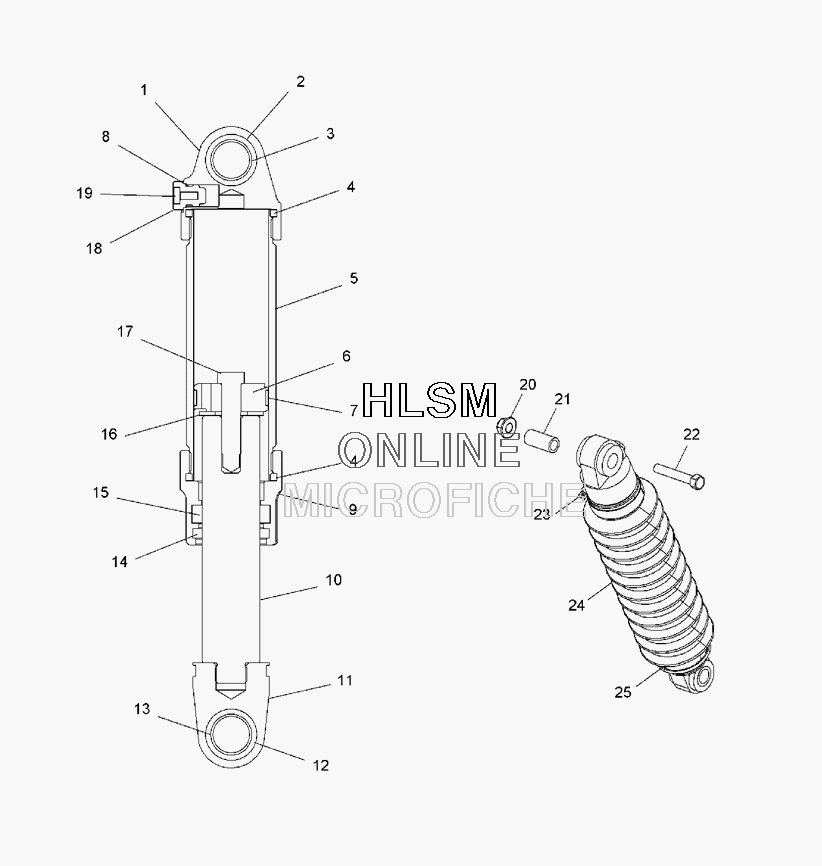

SUSPENSION - WALKER EVANS - FRONT TRACK SHOCK для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
-7043312 SHOCK-FRT TRACK, W/ESHOCK-FRT TRACK, W/E
-
-1800320 ASM. SEAL REBUILD (INCL. 4, 14, 15)ASM. SEAL REBUILD (INCL. 4, 14, 15)
-
11800273 BODY LOOPBODY LOOP
-
21800033 BUSHING/URETHANEBUSHING/URETHANE
-
31800039 SLEEVE 1.685''LSLEEVE 1.685''L
-
41800030 O-RING BODYO-RING BODY
-
51800274 BODYBODY
-
61800315 PISTON, W/BANDPISTON, W/BAND
-
71800029 WEAR BAND, TEFLONWEAR BAND, TEFLON
-
81800108 O-RINGO-RING
-
91800277 SEAL HEADSEAL HEAD
-
101800280 SHAFT 1 1/8SHAFT 1 1/8
-
111800282 SHAFT EYELETSHAFT EYELET
-
121800036 BUSHING/URETHANEBUSHING/URETHANE
-
131800032 SLEEVE 1.202''LSLEEVE 1.202''L
-
141800279 WIPER SEALWIPER SEAL
-
151800278 U-CUP SEALU-CUP SEAL
-
161800276 WASHERWASHER
-
171800275 BOLT 3/8X1 1/2BOLT 3/8X1 1/2
-
181800107 VALVE-NEEDLEVALVE-NEEDLE
-
191800109 SCREW-BUTTON HEAD 8/32SCREW-BUTTON HEAD 8/32
-
207547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
215333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
227515415 SCREWSCREW
-
237080681 CLAMP, HOSECLAMP, HOSE
-
245413281 BOOT-FRT TRACK SHOCK, W/HOLEBOOT-FRT TRACK SHOCK, W/HOLE
-
257080138 CABLE TIECABLE TIE
