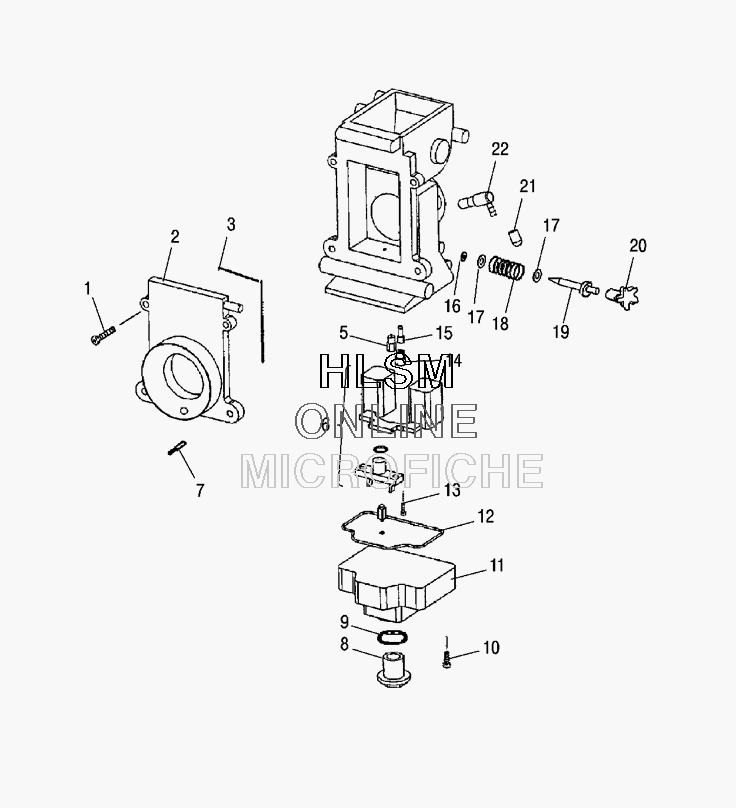

CARBURETOR - LOWER для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
-1203534 ASM-CARB TM 38 600HO IQASM-CARB TM 38 600HO IQ
-
13130825 SCREWSCREW
-
23131686 ASM-FUNNEL TM38/256-1FASM-FUNNEL TM38/256-1F
-
33130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
53130146 JET, MAIN, HX.HD#460JET, MAIN, HX.HD#460
-
63131231 ASM, FLOAT, 1.8ASM, FLOAT, 1.8
-
73131256 JET, AIR, PILOT(0.7)JET, AIR, PILOT(0.7)
-
83131676 DRAIN PLUGDRAIN PLUG
-
93130863 O-RINGO-RING
-
103130824 SCREWSCREW
-
113130858 FLOAT, BODYFLOAT, BODY
-
123130861 O-RINGO-RING
-
133130860 SCREWSCREW
-
143130070 JET, PILOT, #55JET, PILOT, #55
-
153130769 JET, STARTER, #VM11/22-145JET, STARTER, #VM11/22-145
-
163130835 PACKINGPACKING
-
173130837 WASHERWASHER
-
183130836 SPRINGSPRING
-
193130987 ADJUSTERADJUSTER
-
203130986 CAPCAP
-
213130479 CAPCAP
-
227051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
