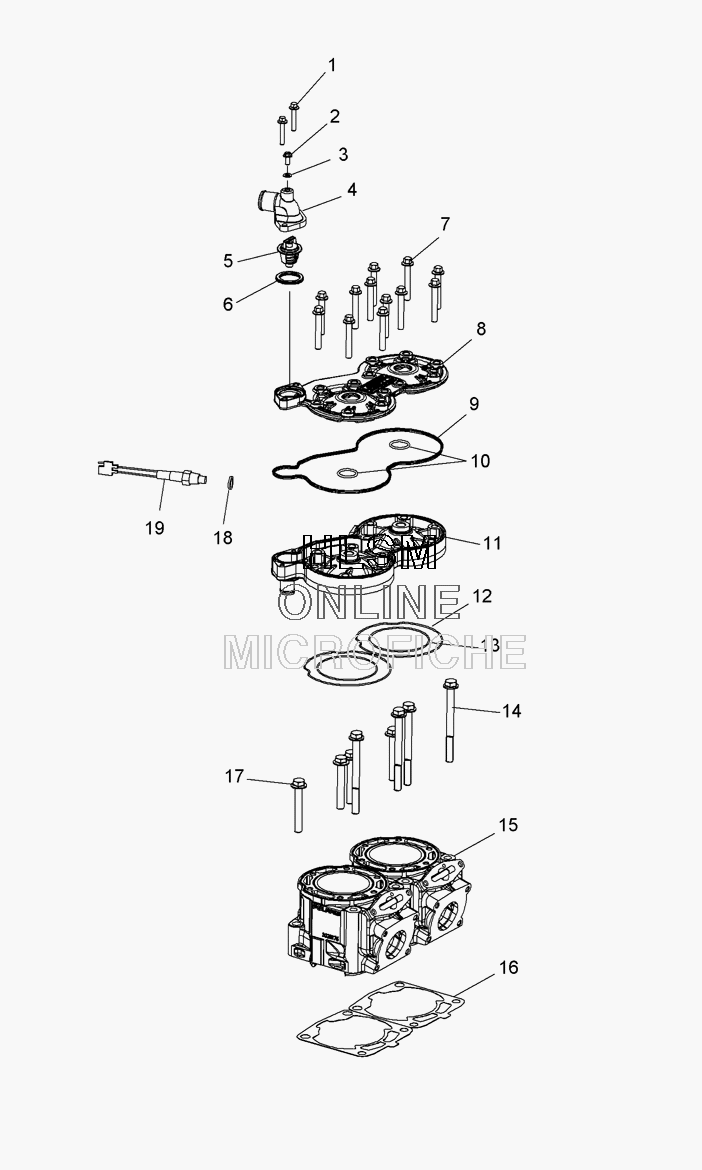

CYLINDER ASSEMBLY для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7516827 SCREW
    SCREW
  • 2
    7517679 SCREW, M6X1.0 X 13, SL/HX/FL-Z
    SCREW, M6X1.0 X 13, SL/HX/FL-Z
  • 3
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 4
    5134756 COVER-THERMOSTAT M6 BLEED MACH
    COVER-THERMOSTAT M6 BLEED MACH
  • 5
    7052433 THERMO-120°F W/O BYPASS HD
    THERMO-120°F W/O BYPASS HD
  • 6
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 7
    7517533 SCREW, M8X1.25X55
    SCREW, M8X1.25X55
  • 8
    5631822-329 CVR-HEAD, SDI, BLACK
    CVR-HEAD, SDI, BLACK
  • 9
    5413036 SEAL-GLAND, HEAD
    SEAL-GLAND, HEAD
  • 10
    5411411 O-RING
    O-RING
  • 11
    3021885 HEAD-CYL 73 TWIN 600 RACE MACH
    HEAD-CYL 73 TWIN 600 RACE MACH
  • 12
    5413349 SEAL-CYLINDER 600 RACE
    SEAL-CYLINDER 600 RACE
  • 13
    5411044 O-RING
    O-RING
  • 14
    7518819 SCR-M10X1.50X115MM, HXFL, 10.9
    SCR-M10X1.50X115MM, HXFL, 10.9
  • 15
    3021975 CYLINDER-73MM 600 RACE
    CYLINDER-73MM 600 RACE
  • 16
    5813331 GASKET-CYLINDER BASE
    GASKET-CYLINDER BASE
  • 17
    7518291 SCR-M10X1.50X70 HX/FL-Y/D 10.9
    SCR-M10X1.50X70 HX/FL-Y/D 10.9
  • 18
    7556357 WASHER-18X12X2.5MM-COPPER
    WASHER-18X12X2.5MM-COPPER
  • 19
    4011695 SENSOR-THERMISTOR
    SENSOR-THERMISTOR
