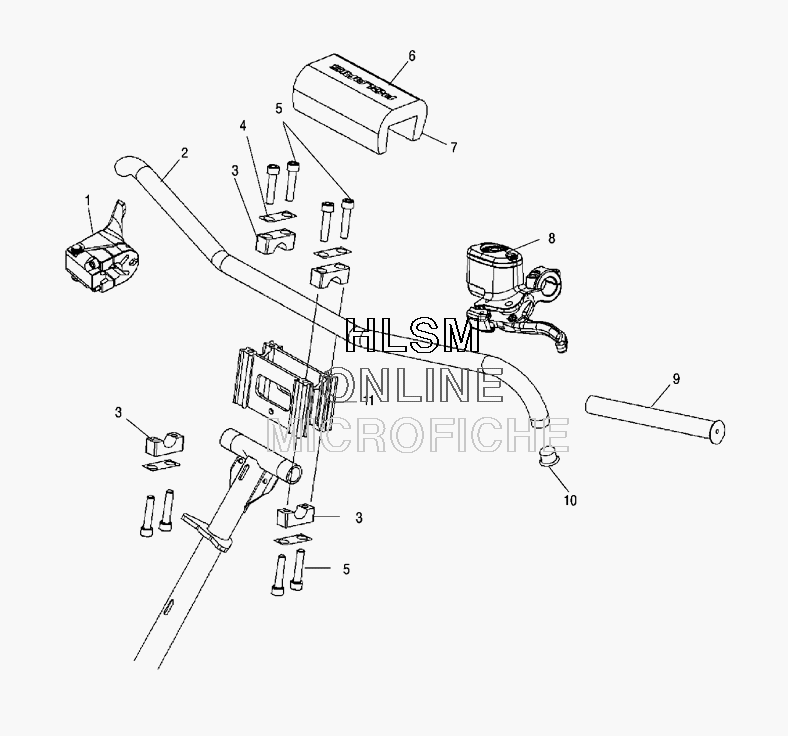

HANDLEBAR ASSEMBLY для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
25247074-067 BAR-HANDLE, W/HOOKS, BLACKBAR-HANDLE, W/HOOKS, BLACK
-
35631311 CLAMP-HANDLE BAR, RETAINERCLAMP-HANDLE BAR, RETAINER
-
45249822 BRKT-CLAMP, HANDLEBARBRKT-CLAMP, HANDLEBAR
-
57512329 BOLTBOLT
-
62683859 ASM-HANDLEBAR COVER, RACEASM-HANDLEBAR COVER, RACE
-
75812322 PAD-HANDLEBARPAD-HANDLEBAR
-
95435484-070 GRIP-HANDLEBAR, LONG, BLACKGRIP-HANDLEBAR, LONG, BLACK
-
95412873 GRIP-HANDLEBAR, RIGHT HAND, RACEGRIP-HANDLEBAR, RIGHT HAND, RACE
-
105431096 PLUGPLUG
-
115133454 RISER, HANDLEBAR, 2.5", ALUMRISER, HANDLEBAR, 2.5", ALUM
