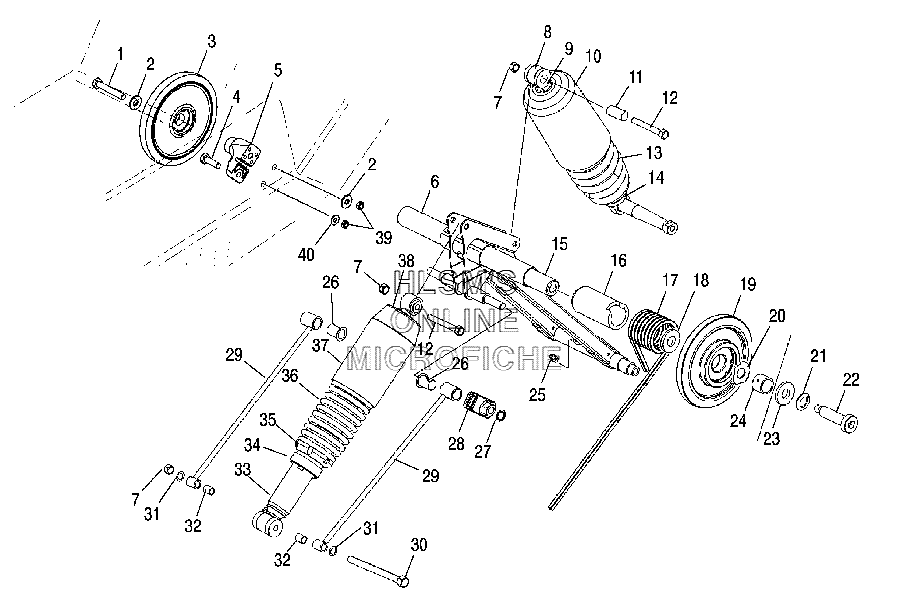

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17515385 SCREWSCREW
-
27555959 WASHER, FLATWASHER, FLAT
-
31543013 WHEEL-TRACK CARRIERWHEEL-TRACK CARRIER
-
47512310 SCREWSCREW
-
55134128 MOUNT-WHEELMOUNT-WHEEL
-
61541798-067 WELD-REAR TORQUE ARM (BLACK)WELD-REAR TORQUE ARM (BLACK)
-
77542411 NUT, FLEXLOCNUT, FLEXLOC
-
87042141 SHOCK-REAR TRACKSHOCK-REAR TRACK
-
95132064 RETAINER-SPRINGRETAINER-SPRING
-
105434921 SHIELD-SPRINGSHIELD-SPRING
-
115333905 SLEEVESLEEVE
-
127515433 SCREWSCREW
-
137042161-067 SPRING-COMP (BLACK)SPRING-COMP (BLACK)
-
143514450 BEARING-PLAINBEARING-PLAIN
-
155134793 SHAFT-UPPERSHAFT-UPPER
-
165434627 SLEEVE-TORSION SPRINGSLEEVE-TORSION SPRING
-
177042240-067 SPRING-TORSION (.405/77) (LEFT) (BLACK)SPRING-TORSION (.405/77) (LEFT) (BLACK)
-
177042241-067 SPRING-TORSION (.405/77) (RIGHT) (BLACK)SPRING-TORSION (.405/77) (RIGHT) (BLACK)
-
187556296 WASHERWASHER
-
191590355 WHEEL ASSY.WHEEL ASSY.
-
193514330 BEARINGBEARING
-
197710471 RING, RETAINERRING, RETAINER
-
207556303 WASHER-WAVEWASHER-WAVE
-
217552614 WASHER, LOCKWASHER, LOCK
-
227517815 SCREWSCREW
-
237555984 WASHER, FLATWASHER, FLAT
-
245134207 COLLAR, BEARING LOCKCOLLAR, BEARING LOCK
-
247512257 SCREW-SOCKET SETSCREW-SOCKET SET
-
257080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
263514441 BUSHING-NYLONBUSHING-NYLON
-
277080394 CLIP, PUSH ONCLIP, PUSH ON
-
285432983 ROLLER, SPRING, ADJ, SQUAREROLLER, SPRING, ADJ, SQUARE
-
291541821-067 WELD-SHOCK ROD (BLACK)WELD-SHOCK ROD (BLACK)
-
307517378 SCREWSCREW
-
317555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
325333028 SPACERSPACER
-
337041486 SHOCK, FONT TRACKSHOCK, FONT TRACK
-
341500091 RETAINER, SPRINGRETAINER, SPRING
-
355431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
367041404-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
375410874 SHIELD, SPRINGSHIELD, SPRING
-
385020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
397542343 NUT, FLANGENUT, FLANGE
-
407555960 WASHER, FLATWASHER, FLAT
