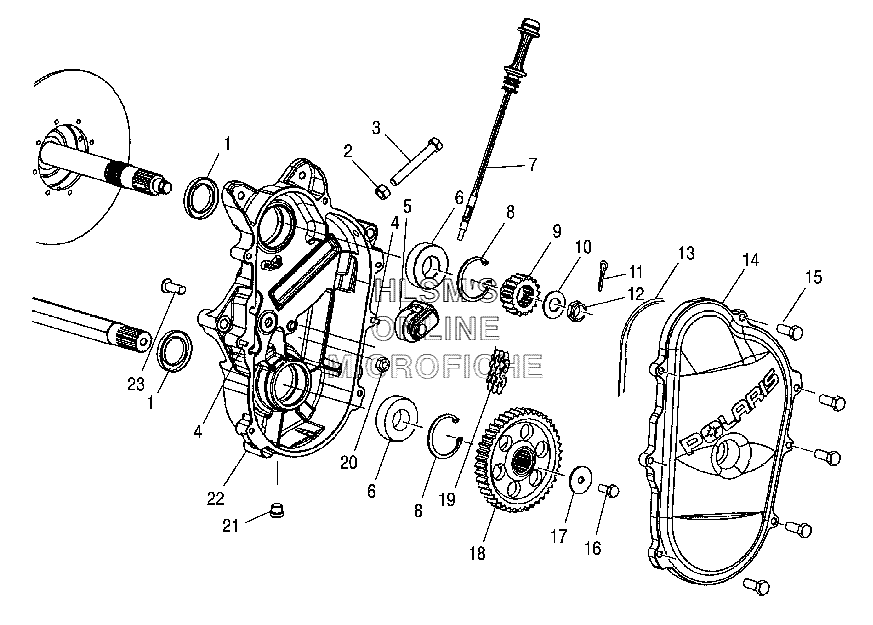

CHAINCASE ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
47661826 PIN, DOWELPIN, DOWEL
-
51341437 TIGHTENER ASSY, CHAINTIGHTENER ASSY, CHAIN
-
63514309 BEARING, BALL #6205BEARING, BALL #6205
-
71332143 DIPSTICK ASSYDIPSTICK ASSY
-
75410675 O-RINGO-RING
-
87718406 RING, RETAININGRING, RETAINING
-
93221097 SPROCKET, (21 TEETH) (3/4W) (15 SPLINE)SPROCKET, (21 TEETH) (3/4W) (15 SPLINE)
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661203 PIN, COTTERPIN, COTTER
-
127547202 NUTNUT
-
135812574 GASKET-CHAINCASE COVERGASKET-CHAINCASE COVER
-
145631354 COVER, CHAINCASECOVER, CHAINCASE
-
157512242 SCREWSCREW
-
167517979 SCREWSCREW
-
177571618 WASHER, SPRINGWASHER, SPRING
-
183222101 SPROCKET, (41/15 TEETH)SPROCKET, (41/15 TEETH)
-
193221109 CHAIN, HYVO.74P, 3/4WCHAIN, HYVO.74P, 3/4W
-
207542451 NUT, NYLOKNUT, NYLOK
-
217052115 PLUGPLUG
-
225134085 CHAINCASE-7.92 CDCHAINCASE-7.92 CD
-
237515477 SCREW, CARRIAGESCREW, CARRIAGE
