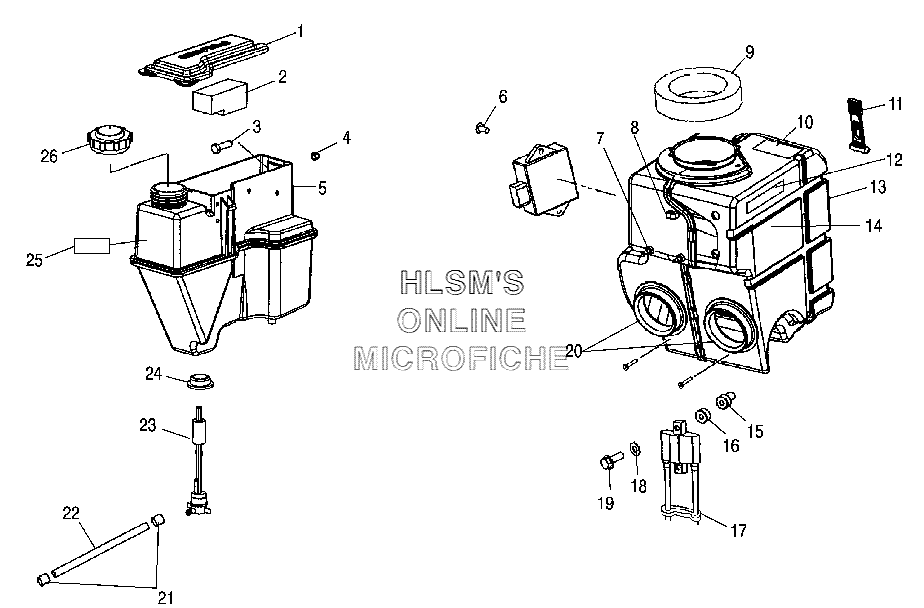

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5434089 COVER-TOOL BOX
    COVER-TOOL BOX
  • 2
    5812209 FOAM
    FOAM
  • 3
    7512297 SCREW
    SCREW
  • 4
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 5
    1253539 OIL BOTTLE/TOOL BOX
    OIL BOTTLE/TOOL BOX
  • 5
    1261127 WELD-OIL BOTTLE/TOOL BOX
    WELD-OIL BOTTLE/TOOL BOX
  • 6
    7512095 SCREW
    SCREW
  • 7
    7052127 FITTING, HOSE
    FITTING, HOSE
  • 8
    7670102 CLIP
    CLIP
  • 9
    5811983 FOAM, CHIMNEY
    FOAM, CHIMNEY
  • 10
    7075351 DECAL, CAUTION
    DECAL, CAUTION
  • 11
    5433150 STRAP
    STRAP
  • 12
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 13
    1253498 AIR SILENCER ASSY (INCL. 20 AND DECALS)
    AIR SILENCER ASSY (INCL. 20 AND DECALS)
  • 14
    7171037 DECAL-BELT REMOVAL
    DECAL-BELT REMOVAL
  • 15
    7547103 NUT, WELL
    NUT, WELL
  • 16
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 17
    7080471 CLIP, IGNITION CABLE
    CLIP, IGNITION CABLE
  • 18
    7552604 WASHER
    WASHER
  • 19
    7517610 SCREW
    SCREW
  • 20
    5412169 BOOT-CARB, 70 DURO
    BOOT-CARB, 70 DURO
  • 21
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    8450003-1525 LINE, FUEL (1/4 ID 1525 CM.)
    LINE, FUEL (1/4 ID 1525 CM.)
  • 23
    4010660 SENDER-OIL, W/ FRONT TERMINALS
    SENDER-OIL, W/ FRONT TERMINALS
  • 24
    7052305 GROMMET-OIL SENDER
    GROMMET-OIL SENDER
  • 25
    7079003 DECAL-OIL, VES
    DECAL-OIL, VES
  • 26
    1240094 CAP-OIL, VENTED/CUSTOM COLOR
    CAP-OIL, VENTED/CUSTOM COLOR
