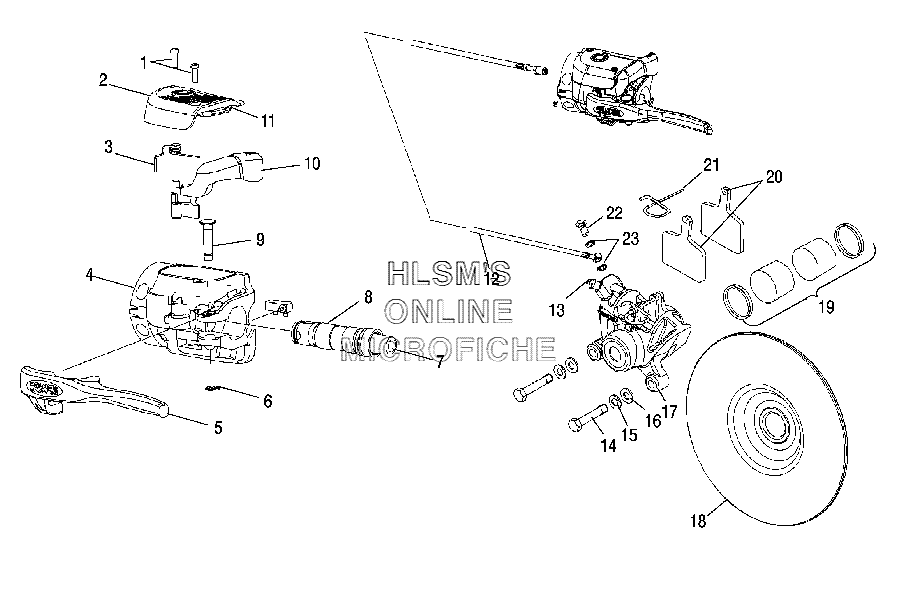

BRAKE ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2202837 COVER ASSY KIT 4 (INCL. 1,11)
    COVER ASSY KIT 4 (INCL. 1,11)
  • 3
    2201250 PARK LEVER SPRING KIT
    PARK LEVER SPRING KIT
  • 4
    2202784 RESERVOIR KIT (INCL. 6,9)
    RESERVOIR KIT (INCL. 6,9)
  • 5
    2201943 LEVER KIT, 3 NOTCH/PIN/RING (INCL. 6,9)
    LEVER KIT, 3 NOTCH/PIN/RING (INCL. 6,9)
  • 6
    2201945 SNAP RING KIT
    SNAP RING KIT
  • 7
    2202783 5/8'' CARTRIDGE KIT
    5/8'' CARTRIDGE KIT
  • 8
    2202786 STOPLIGHT SWITCH KIT
    STOPLIGHT SWITCH KIT
  • 9
    2201946 PIVOT PIN KIT,ALUM W/SNAP RING (INCL. 6)
    PIVOT PIN KIT,ALUM W/SNAP RING (INCL. 6)
  • 10
    2201251 PARK LEVER AND SPRING KIT
    PARK LEVER AND SPRING KIT
  • 12
    2202788 KIT-HOSE (29.18")
    KIT-HOSE (29.18")
  • 13
    2202205 BLEEDER FITTING KIT
    BLEEDER FITTING KIT
  • 14
    7515534 SCREW
    SCREW
  • 15
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 16
    7556160 WASHER
    WASHER
  • 17
    2203009 BRAKE CALIPER ASSY KIT
    BRAKE CALIPER ASSY KIT
  • 18
    2202493 BRAKE DISC KIT,FORGED
    BRAKE DISC KIT,FORGED
  • 19
    2202207 PISTON/SEAL KIT
    PISTON/SEAL KIT
  • 19
    2202204 SEAL KIT
    SEAL KIT
  • 20
    2202727 BRAKE PAD KIT, TYPE 94 (INCL. 21)
    BRAKE PAD KIT, TYPE 94 (INCL. 21)
  • 21
    2202206 PIN RETAINING KIT
    PIN RETAINING KIT
  • 22
    2202789 M10X1.25 BANJO KIT
    M10X1.25 BANJO KIT
  • 23
    2202790 STATOSEAL WASHER KIT (2 PER)
    STATOSEAL WASHER KIT (2 PER)
  • 2202785 FULL ASSY MASTER CYLINDER KIT (INCL. 1-7)
    FULL ASSY MASTER CYLINDER KIT (INCL. 1-7)
