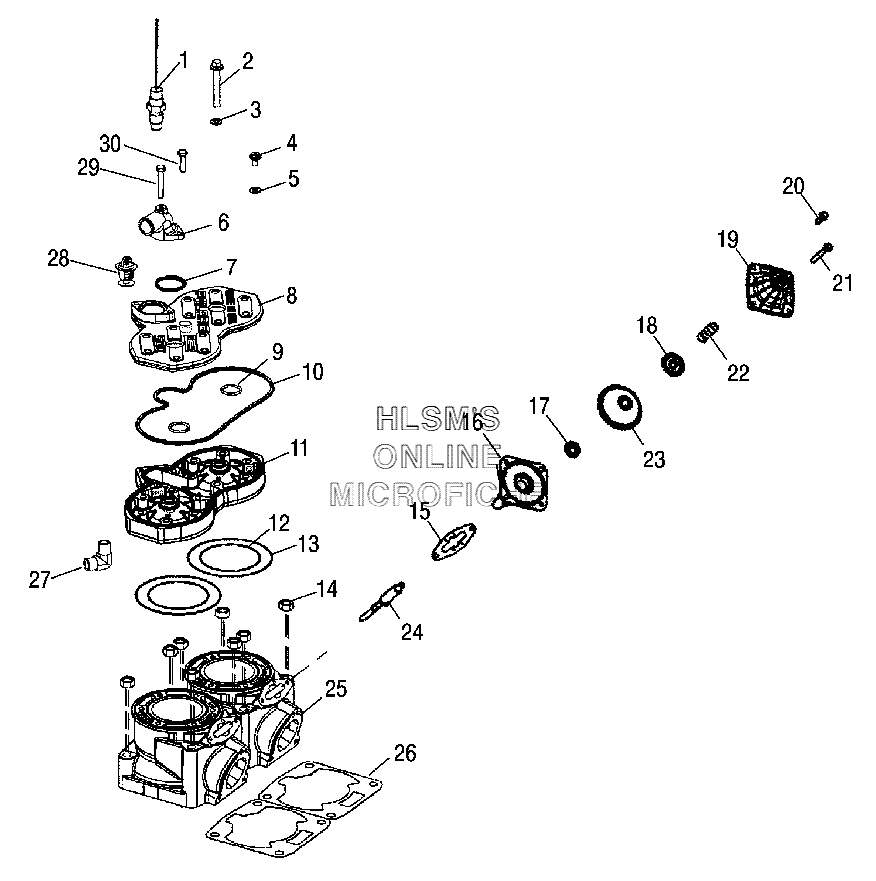

CYLINDER ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска`
-
№АртикулНазвание
-
14010398 SENSOR-THERMISTERSENSOR-THERMISTER
-
27517533 SCREWSCREW
-
37556082 WASHERWASHER
-
47517679 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
65134756 COVER-THERMOSTAT M6 BLEED (MACH)COVER-THERMOSTAT M6 BLEED (MACH)
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85631787-093 COVER-HEAD 77.25MMCOVER-HEAD 77.25MM
-
95411411 O-RINGO-RING
-
105411465 SEALSEAL
-
113021700 HEAD-CYLINDER 77.25MM W/OMAHEAD-CYLINDER 77.25MM W/OMA
-
125410932 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
155812350 GASKET-BASE TO CYLINDER EXHAUST VALVEGASKET-BASE TO CYLINDER EXHAUST VALVE
-
161202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
175135163 WASHER-BELLOWS, EXHAUST VALVEWASHER-BELLOWS, EXHAUST VALVE
-
185631662 CAP/NUT, BELLOWS-EXHAUST VALVECAP/NUT, BELLOWS-EXHAUST VALVE
-
191202640 HOUSING ASSY W/BUSHINGHOUSING ASSY W/BUSHING
-
207516820 SCREWSCREW
-
217517932 SCREWSCREW
-
227041786-08 SPRING-COMP (GREEN/YELLOW)SPRING-COMP (GREEN/YELLOW)
-
235412733 BELLOWS-EXHAUST RIBSBELLOWS-EXHAUST RIBS
-
245135160 VALVE-GUILLOTINEVALVE-GUILLOTINE
-
253021333 CYLINDER-77.25CYLINDER-77.25
-
265812494 GASKET-CYLINDER BASEGASKET-CYLINDER BASE
-
277052234 FITTING-3/4NPT-1''HOSE BRASSFITTING-3/4NPT-1''HOSE BRASS
-
287052258 THERMOSTAT-120ШF W/O BYPASSTHERMOSTAT-120ШF W/O BYPASS
-
297516818 SCREWSCREW
-
307516822 SCREWSCREW
