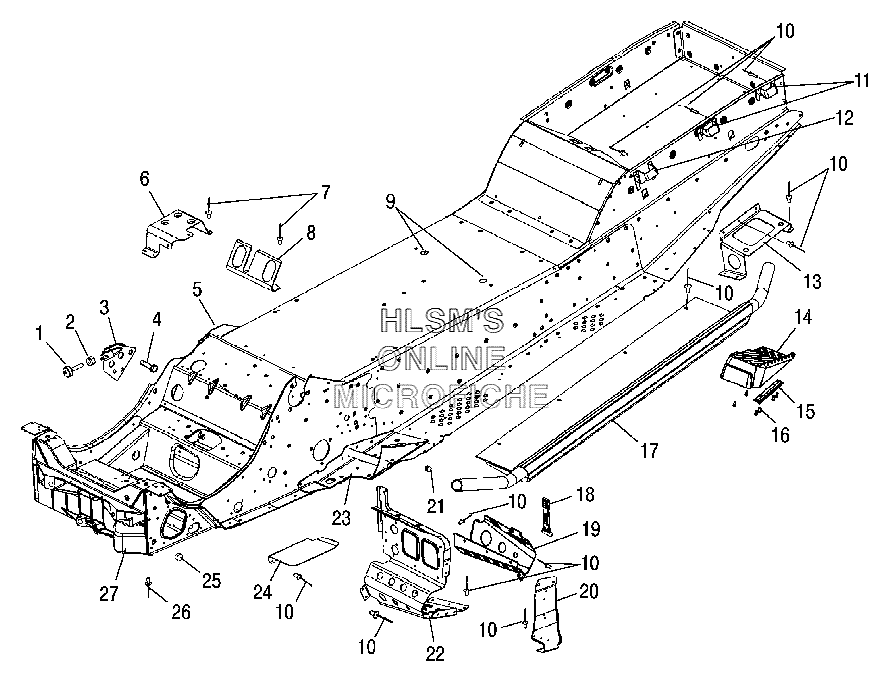

FRAME - CHASSIS для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
13021104 STOP, TORQUE COURSESTOP, TORQUE COURSE
-
27542404 NUTNUT
-
31013379 WELD-TORQUE STOPWELD-TORQUE STOP
-
47517632 SCREWSCREW
-
51014451-309 CHASSIS ASSYCHASSIS ASSY
-
65245202 BRACKET-OIL BOTTLEBRACKET-OIL BOTTLE
-
77621432 RIVETRIVET
-
85246177 BRACKET-AIRBOXBRACKET-AIRBOX
-
97081076 PLUG-HOLEPLUG-HOLE
-
107661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
115246278-067 HOOK-CARGO (BLACK)HOOK-CARGO (BLACK)
-
125246439-067 HOOK-CARGO (FRONT/BLACK)HOOK-CARGO (FRONT/BLACK)
-
135246275-067 BRACKET-LOWER ACC, ATTACH (LEFT/BLACK)BRACKET-LOWER ACC, ATTACH (LEFT/BLACK)
-
135246276-067 BRACKET-LOWER, ACC, ATTACH (RIGHT/BLACK)BRACKET-LOWER, ACC, ATTACH (RIGHT/BLACK)
-
141013857 FOOTREST ASSY, PASSENGER (LEFT) (INCL. 15, 16)FOOTREST ASSY, PASSENGER (LEFT) (INCL. 15, 16)
-
141013858 FOOTREST ASSY, PASSENGER (RIGHT) (INCL. 15, 16)FOOTREST ASSY, PASSENGER (RIGHT) (INCL. 15, 16)
-
155246435 BRACKETBRACKET
-
167512076 SCREWSCREW
-
171240133 WELD-RUNNING BOARD COOLER (LEFT)WELD-RUNNING BOARD COOLER (LEFT)
-
171240134 WELD-RUNNING BOARD COOLER (RIGHT)WELD-RUNNING BOARD COOLER (RIGHT)
-
185433150 STRAPSTRAP
-
195245457 MOUNT-CONSOLE, TOE CLIP (LEFT)MOUNT-CONSOLE, TOE CLIP (LEFT)
-
195245458 MOUNT-CONSOLE, TOE CLIP (RIGHT)MOUNT-CONSOLE, TOE CLIP (RIGHT)
-
205246310 SUPPORT-FOOTREST (LEFT)SUPPORT-FOOTREST (LEFT)
-
205246311 SUPPORT-FOOTREST (RIGHT)SUPPORT-FOOTREST (RIGHT)
-
217081085 PLUG-BARBEDPLUG-BARBED
-
225245288 FOOTREST (LEFT)FOOTREST (LEFT)
-
225247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
232202059 MOUNT KIT, TRAILING ARM (LEFT)MOUNT KIT, TRAILING ARM (LEFT)
-
232202598 MOUNT KIT, TRAILING ARM (RIGHT)MOUNT KIT, TRAILING ARM (RIGHT)
-
245221583 GUARD-ADAPTER DRIVEGUARD-ADAPTER DRIVE
-
257080416 PLUG, HOLEPLUG, HOLE
-
267661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
275132292 BULKHEAD (FRONT)BULKHEAD (FRONT)
